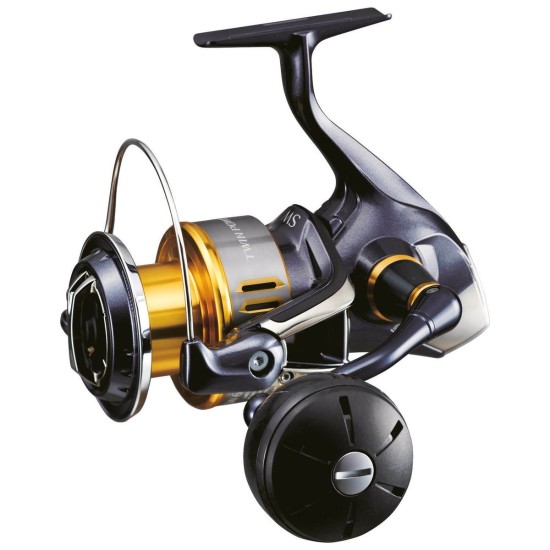

Parts for Shimano TWINPOWER SW4000XGB (2015) reel
PARTS-TP4000SWBXG
Find the part you need on the exploded view of the Shimano TWINPOWER SW4000XGB (2015) reel, then order it directly from the list of available parts below.
Description
Identify the spare part(s) of the reel you need, then add them to the cart from the list of available spare parts located below the exploded view of the reel.
Product Details
Shimano
PARTS-TP4000SWBXG
Data sheet
- Type
- Spinning
- Series
- TWINPOWER SW
- Size
- 4000
- Model
- TP4000SWBXG
- Generation
- 2015
Available parts for this reel
| Old reference | Reference | Price (Tax Excl.) | |
|---|---|---|---|
| RD 2110, TT 0531, TGT 0729 |
103E9
SLIDER RETAINER SCREW |
€0.80 |
Out-of-Stock
|
| RD 2329, TGT 0798 |
103KY
BEARING RETAINER SCREW |
€0.80 |
|
| RD 3342 |
103C0
DIAL CASE SCREW |
€0.80 |
Out-of-Stock
|
| RD 3538 |
103NX
SPOOL SUPPORT |
€0.80 |
Out-of-Stock
|
| RD 3561, TT 0632 |
10MT4
DRAG WASHER SCREW |
€0.80 |
|
| RD 6008 |
10PN2
SET SCREW M2X5 |
€0.80 |
|
| RD 6016 |
10GAH
BEARING SPACER |
€0.80 |
Last items in stock
|
| RD 6109 |
10BSJ
SPOOL WASHER |
€0.80 |
|
| RD 6192, RD 17508 |
10HHT
98STL5H DRIVE GEAR WASHER |
€0.80 |
|
| RD 6193, TLD 0049, TT 0594, TGT 0867 |
10MGG
LEVER CLICK COVER SCREW |
€0.80 |
|
| RD 6225 |
10LZ1
BRAKE CASE SCREW |
€0.80 |
|
| RD 7787 |
105RG
BAIL SPRING GUIDE (A) |
€0.80 |
Out-of-Stock
|
| RD 7788 |
1064R
SPRING GUIDE (A) SUPPORT |
€0.80 |
|
| RD 7921 |
105FX
BAIL SPRING |
€0.80 |
Out-of-Stock
|
| RD 7922 |
1077C
BAIL SPRING SEAT |
€0.80 |
|
| RD 8074 |
107F2
BEARING WATER PROOF |
€0.80 |
|
| RD 8128, TGT 0483, TT 0572 |
10KXC
BALL BEARING(3.31G)MADE IN CHINA |
€6.00 |
|
| RD 8388 |
10B8J
DRAG WASHERS RETAINER |
€0.80 |
|
| RD 8916 |
10CH0
01BBX TECH 3000 CLICK SPRING |
€0.80 |
|
| RD 9833 |
107V2
04STL25 RATCHET SPR |
€0.80 |
Out-of-Stock
|
| RD 9841 |
10CHA
01BBX TECH 5000 BAIL ARM CLICK |
€0.80 |
Out-of-Stock
|
| RD 9903 |
108WA
04STL25 O RING SS9.5 |
€0.80 |
|
| RD 9908 |
102ZP
01STLAR3 DRAG WASHER (A) |
€0.80 |
Out-of-Stock
|
| RD 9912 |
10GEW
LEFT (SPOOL) BEARING LOCK |
€0.80 |
|
| RD 10397 |
104Q4
BALL BEARING MADE IN THAILAND |
€4.00 |
|
| RD 10441 |
104JS
BALL BEARINGMADE IN THAILAND |
€6.00 |
|
| RD 11547 |
10L01
05BBXTMGC3 L/R SPRT |
€4.00 |
|
| RD 11548 |
109GT
07STL25 B/H/S SCREW |
€0.80 |
|
| RD 11549 |
107LA
07STL25B/H/S SRW CLR |
€0.80 |
|
| RD 11603 |
10HV3
WASHER 5.2X6.7X0.1 |
€0.80 |
Out-of-Stock
|
| RD 11646 |
107PS
07STL4 D/C RATCHET |
€0.80 |
|
| RD 11651 |
108R2
07STL4 BAIL SPR CVR |
€4.00 |
|
| RD 11652 |
108GJ
07STL4000 B/T LEVER |
€0.80 |
|
| RD 11654 |
10M9R
07STL4 B/H SPRT GRD |
€4.00 |
Out-of-Stock
|
| RD 11656 |
10K4Q
07STL4 B/H /S SHAFT |
€0.80 |
|
| RD 11657 |
10D0V
07STL4 B/H/S SPACER |
€0.80 |
|
| RD 11658 |
106ZU
07STL4 ROTOR GUARD |
€6.00 |
Last items in stock
|
| RD 11663 |
104FW
07STL4 FRCTIN RING |
€0.80 |
|
| RD 11665 |
107DX
07STL4 B/T STRIKE |
€0.80 |
|
| RD 12375 |
10H7Q
08STLSW5HG O/P CVR |
€0.80 |
|
| RD 12376 |
106V4
08STLSW5HG OSC PAWL |
€0.80 |
Out-of-Stock
|
| RD 12660 |
10JVB
08TP1000 O/S BUSHING |
€0.80 |
|
| RD 13132 |
10G9X
07STL2500 L/R SPRT W |
€0.80 |
|
| RD 13185 |
105BP
BB 5X9X3 ARB NASMADE IN THILAND |
€4.00 |
|
| RD 13189 |
104PT
BALL BEARINGMADE IN THAILAND |
€4.00 |
|
| RD 13309 |
106E8
05BBXDSC3 WORMBUSH F |
€0.80 |
|
| RD 13310 |
10H6M
09TPSW4XG IDLE GEAR |
€0.80 |
|
| RD 13317 |
10LAB
O RING NOK SS9 |
€0.80 |
Out-of-Stock
|
| RD 13328 |
10M6H
PAN M2.6X20 NL |
€0.80 |
|
| RD 13381 |
104JT
BALL BEARINGMADE IN THAILAND |
€4.00 |
Out-of-Stock
|
| RD 14173 |
10KX2
BB 4X9X4 ARB NAS MADE IN THAILAND |
€0.80 |
|
| RD 14247 |
107RJ
10STL2500 L/R BUSH |
€0.80 |
|
| RD 14249 |
1079U
10STL2500 L/R PLATE |
€0.80 |
|
| RD 14250 |
107X8
10STL2500 LR OIL CAP |
€0.80 |
|
| RD 14252 |
109GS
BBXTCMGC3 B/H/S SRW |
€0.80 |
|
| RD 14300 |
10LTS
10STL4000 BRNG BUSH |
€0.80 |
|
| RD 14451 |
109UR
09TP-SW LINE BAND SS |
€0.80 |
Out-of-Stock
|
| RD 14778 |
10388
11BIO2500 DRAG CLICK |
€0.80 |
|
| RD 14780 |
10A6F
11BIO2500 D/C SCREW |
€0.80 |
|
| RD 14866, TGT 1954 |
10KXF
BB 8X16X5 A-RB NAS MADE IN CHINA |
€4.00 |
Out-of-Stock
|
| RD 15003 |
10KM6
09BBXTMGC3DHG L/RLR |
€0.80 |
|
| RD 15488 |
10BBQ
12VQC3000 KEY WSR A |
€0.80 |
|
| RD 15489 |
10BQE
12VQ2500S D/C SPRING |
€0.80 |
|
| RD 15717 |
10BGE
13STLSW5HG S/C B W |
€0.80 |
|
| RD 15727 |
10B2B
11FM1000M H/K SEAL |
€4.00 |
|
| RD 15859 |
104VZ
4X7X2.5 ARBN MADE IN JAPAN |
€6.00 |
|
| RD 15945 |
10G8C
09CU200E7 WASHER |
€0.80 |
|
| RD 15991 |
1076P
13STLSW4XG N/L PLATE |
€0.80 |
|
| RD 15992 |
1080X
13STLSW4XG ROTOR NUT |
€4.00 |
Out-of-Stock
|
| RD 16423 |
10C1D
14STL2500 DRAG WSR B |
€0.80 |
|
| RD 16472 |
1059T
TPGT W/S SPACER 0.1T 3.05*5 |
€0.80 |
|
| RD 16587 |
10QBY
14STL4000 KEY W B |
€4.00 |
|
| RD 16974 |
10LAD
09CH100D7 O RING SS3 |
€0.80 |
|
| RD 17001 |
10PSB
TRX M2.6X8 NL +- |
€0.80 |
Out-of-Stock
|
| RD 17023 |
10PS0
SP TRX M2.6X5S |
€0.80 |
Out-of-Stock
|
| RD 17024 |
10PRY
SP TRX M2X4S |
€0.80 |
|
| RD 17027 |
103LY
TRS P2.6X14 BH |
€0.80 |
Out-of-Stock
|
| RD 17028 |
10MHC
15TPSW5HG ROLLER CLUTCH WATER PROOF COV |
€0.80 |
|
| RD 17030 |
10J2G
15TPSW5000HG ROTOR WASHER |
€0.80 |
Out-of-Stock
|
| RD 17031 |
10667
95STL1CLCH INR S |
€4.00 |
Last items in stock
|
| RD 17032 |
10QPK
15TPSW5000HG ROLLER CLUTCH ASSY |
€6.00 |
Out-of-Stock
|
| RD 17033 |
108WZ
15TPSW5000HG O RING |
€0.80 |
|
| RD 17034 |
10CDD
15TPSW5000HG BODY SEAL |
€6.00 |
Last items in stock
|
| RD 17035 |
10CD4
TPSW5000HG BEARING WATER PROOF |
€0.80 |
|
| RD 17036 |
10ELN
15TPSW5000XG DRIVE GEAR ASSY |
€25.00 |
|
| RD 17038 |
10NHL
15TPSW5000XG HANDLE SHAFT COVER ASSY |
€12.00 |
Last items in stock
|
| RD 17041 |
10NL6
15TPSW5000HG REAR PROTECTOR |
€6.00 |
Last items in stock
|
| RD 17042 |
10A6R
TRQS M2.6X7 |
€0.80 |
Out-of-Stock
|
| RD 17043 |
10ATF
15TPSW5000HG WORM SHAFT RETAINER |
€0.80 |
|
| RD 17044 |
10GFF
04STL25 AJST W A0.3 |
€0.80 |
Last items in stock
|
| RD 17045 |
1090B
15TPSW5000HG O RING SS042 |
€0.80 |
Last items in stock
|
| RD 17046 |
106M5
15TPSW5000HG WORM BUSHING (REAR) |
€0.80 |
|
| RD 17047 |
1068A
15TPSW5000HG WORM SHAFT |
€0.80 |
|
| RD 17048 |
10908
15TPSW5000HG O RING SS010 |
€0.80 |
|
| RD 17049 |
1035N
15TPSW5000HG OSCILLATING GUIDE |
€0.80 |
|
| RD 17050 |
10BA4
15TPSW5000HG BODY |
☹ This part is not produced anymore | |
| RD 17051 |
10PSC
TRX M2.6X10 NL +- |
€0.80 |
|
| RD 17052 |
10N4J
15TPSW5000HG HANDLE SCREW CAP |
€0.80 |
|
| RD 17053 |
10C28
15TPSW5000XG PINION GEAR |
€6.00 |
|
| RD 17054 |
10HVD
01DDM3000SP SWITCH BUTTON SUBSTRATE W |
€0.80 |
|
| RD 17070 |
10H00
15TP4000PG DRAG KNOB ASSY |
€9.00 |
|
| RD 17071 |
1085Y
15TPSW4000XG SPOOL ASSY |
€81.00 |
Last items in stock
|
| RD 17072 |
103SB
15TPSW4000XG MAIN SHAFT SPACER ASSY |
€12.00 |
Last items in stock
|
| RD 17073 |
1075L
15TPSW4000XG BAIL ARM |
€4.00 |
|
| RD 17074 |
10PS3
TRX M2.6X7 TRS NL |
€0.80 |
Last items in stock
|
| RD 17075 |
10FCZ
15TPSW4000XG ROTOR |
€36.00 |
Last items in stock
|
| RD 17076 |
10PP4
15TPSW4000XG BAIL ASSY |
€27.50 |
|
| RD 17077 |
10QRP
15TPSW4000XG ROLLER CLUTCH WP SET |
€9.00 |
Last items in stock
|
| RD 17078 |
104HB
15TPSW4000XG SIDE COVER ASSY |
€36.00 |
Last items in stock
|
| RD 17079 |
103DT
15TPSW4000XG HANDLE SHANK ASSY |
€22.50 |
Last items in stock
|
| RD 17080 |
10424
14OC200HG HANDLE KNOB ASSY |
€17.50 |
Last items in stock
|
| RD 17081 |
10NB7
15TPSW4000XG HANDLE ASSY |
€36.00 |
Last items in stock
|
| RD 17082 |
102J2
15TPSW4000XG MAIN SHAFT ASSY |
€20.00 |
|
| RD 17330 |
10BE6
07STL25 EARED WASHER |
€0.80 |
|
| RD 17398 |
105LU
01STLFW25 BLSPR GD A |
€0.80 |
|
| RD 19754 |
10DKJ
98STL5H DRIVE GEAR WASHER SET |
€4.00 |
Last items in stock
|
| PK 0302 |
10ELP
GEAR SET FOR 15 TP SW 5000XG OVS |
☹ This part is not produced anymore | |
| PK 0303 |
1041X
BEARING SET FOR 15 TP SW 5000XG OVS |
☹ This part is not produced anymore | |
| PK 0304 |
10GP7
OSCILLATION SET FOR 15 TP SW 5000XG OVS |
☹ This part is not produced anymore | |
| PK 0310 |
PK0310
|
☹ This part is not produced anymore | |
| PK 0409 |
10TLN
LINE ROLLER SET FOR 15 TP SW 4000XG OVS |
☹ This part is not produced anymore |
