Parts for Shimano TIAGRA 130 (2000) reel

Shimano
PARTS-Ti130
Find the part you need on the exploded view of the Shimano TIAGRA 130 (2000) reel, then order it directly from the list of available parts below.

Description

Identify the spare part(s) of the reel you need, then add them to the cart from the list of available spare parts located below the exploded view of the reel.

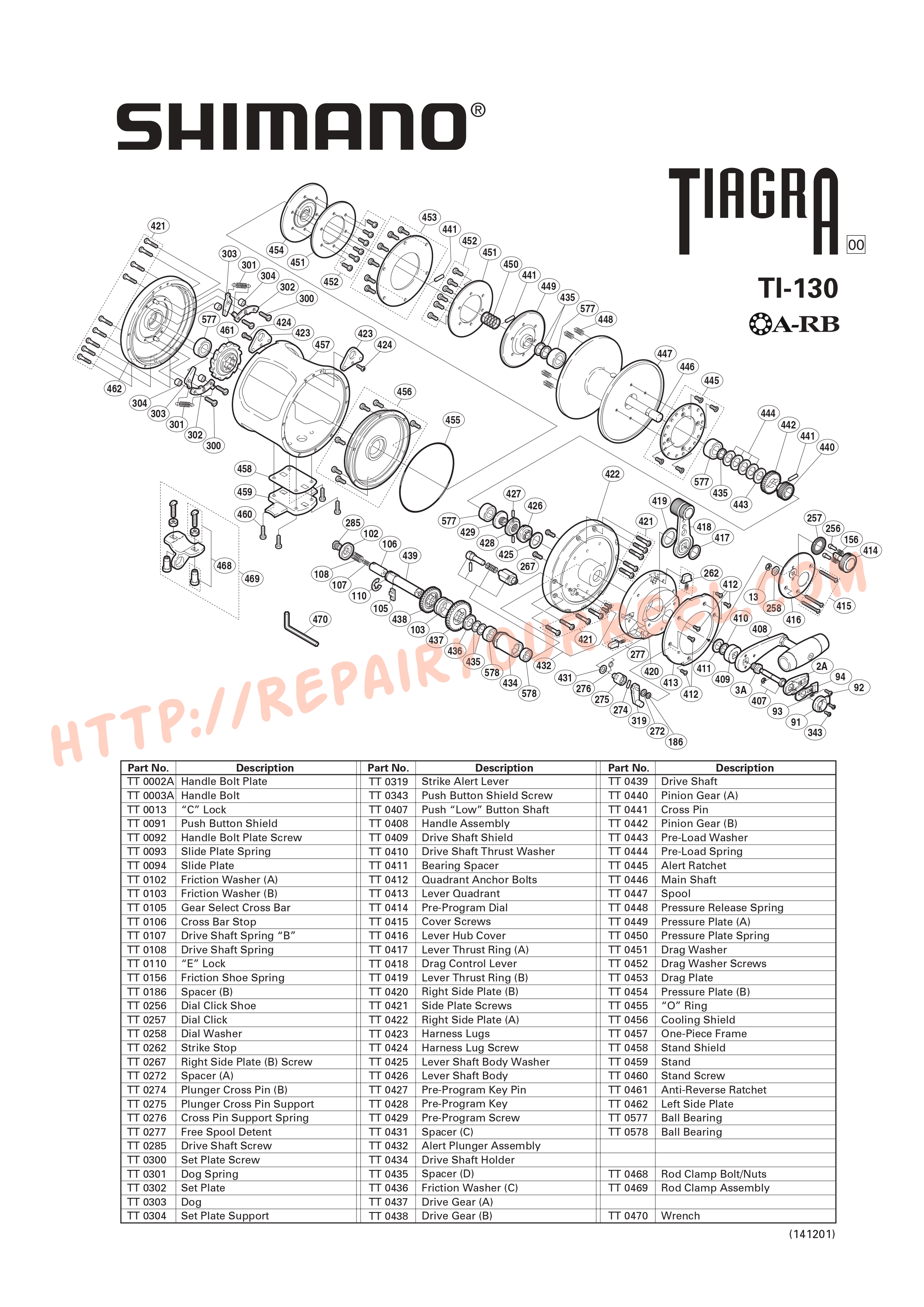

Exploded view of Shimano TIAGRA 130 (2000)

Product Details

Shimano Shimano
PARTS-Ti130

Data sheet

Type
Trolling
Series
TIAGRA
Size
130
Model
TI130
Generation
2000

Available parts for this reel

Old reference Reference Price (Tax Excl.)
TT 0002 A, TGT 0973 10QUC
HANDLE BOLT PLATE 		€0.80
TT 0003 A 106XK
HANDLE BOLT 		€4.00
Last items in stock
TT 0013, TGT 0464 105RY
C LOCK 		€0.80
TT 0091, TGT 0969 109XD
PUSH BUTTON SHIELD 		€0.80
TT 0092, TGT 0971 10LZ9
HANDLE BOLT PLATE SCREW 		€0.80
TT 0093, TGT 0970 10PWH
SLIDE PLATE SPRING 		€0.80
TT 0094, TGT 0972 109XC
SLIDE PLATE 		€0.80
TT 0102 10D5A
FRICTION WASHER (A) 		€0.80
TT 0103 10D67
FRICTION WASHER (B) 		€0.80
TT 0105 10KXG
GEAR SELECT CROSS BAR 		€9.00
Last items in stock
TT 0106 10KXK
CROSS BAR STOP 		€0.80
TT 0107, TGT 0995 109VM
DRIVE SHAFT SPRING B 		€0.80
TT 0108 10KXP
DRIVE SHAFT SPRING 		€0.80
TT 0110 105S0
E LOCK 		€0.80
TT 0156 10TUX
FRICTION SHOE SPRING 		€0.80
Out-of-Stock
TT 0186, TLD 0052 104H3
T-300 CLICK PAWL SPACER 		€0.80
TT 0256 10CWE
DIAL CLICK SHOE 		€0.80
TT 0257 10J1U
DIAL CLICK 		€0.80
TT 0258 108HD
DIAL WASHER 		€0.80
TT 0262 TT0262
Strike Stop 		€0.80
Out-of-Stock
TT 0267 10PQS
SIDE PLATE SCREW 		€0.80
TT 0272 TT0272
Spacer (A) 		€0.80
Out-of-Stock
TT 0274 10EZQ
PLUNGER CROSS PIN (B) 		€0.80
TT 0275 10EZK
PLUNGER CROSS PIN SUPPORT 		€0.80
TT 0276 10F1S
CROSS PIN SUPPORT SPRING 		€0.80
TT 0277 TT0277
Free Spool Detent 		€0.80
Out-of-Stock
TT 0285 10FCB
DRIVE SHAFT SCREW 		€0.80
TT 0300 103UX
SET PLATE SCREW 		€0.80
Out-of-Stock
TT 0301 10CBP
DOG SPRING 		€0.80
TT 0302 10KNV
SET PLATE 		€0.80
TT 0303 10PFY
DOG 		€0.80
TT 0304 10KVK
SET PLATE SUPPORT 		€0.80
TT 0319, TT 0813 108FW
80W S/A LVR ASSY SUS 		€4.00
TT 0343, TGT 0968 10PHN
PUSH BUTTON SHIELD SCREW TO TT0873 		€0.80
Out-of-Stock
TT 0407 TT0407
Push “Low” Button Shaft 		€0.80
Out-of-Stock
TT 0408 TT0408
Handle Assembly 		€0.80
Out-of-Stock
TT 0409 10KZP
DRIVE SHAFT SHIELD 		€4.00
Last items in stock
TT 0410 107QV
DRIVE SHAFT THRUST WASHER 		€0.80
TT 0411 10BR7
BEARING SPACER 		€0.80
TT 0412 TT0412
Quadrant Anchor Bolts 		€0.80
Out-of-Stock
TT 0413 TT0413
Lever Quadrant 		€0.80
Out-of-Stock
TT 0414 108DZ
PRE-PROGRAM DIAL 		€4.00
Last items in stock
TT 0415 TT0415
Cover Screws 		€0.80
Out-of-Stock
TT 0416 10BGZ
LEVER HUB COVER 		€17.50
Last items in stock
TT 0417 108GT
LEVER THRUST RING (A) 		€0.80
TT 0418 TT0418
Drag Control Lever 		€0.80
Out-of-Stock
TT 0419 108DM
LEVER THRUST RING (B) 		€0.80
Last items in stock
TT 0420 TT0420
Right Side Plate (B) 		€0.80
Out-of-Stock
TT 0421 TT0421
Side Plate Screws 		€0.80
Out-of-Stock
TT 0422 TT0422
Right Side Plate (A) 		€0.80
Out-of-Stock
TT 0423 TT0423
Harness Lugs 		€0.80
Out-of-Stock
TT 0424 10LZ5
LEFT SIDE PLATE SCREW 		€0.80
TT 0425 10EWV
LEVER SHAFT BODY WASHER 		€0.80
TT 0426 10CC1
LEVER SHAFT BODY 		€12.00
Out-of-Stock
TT 0427 10EWP
PRE-PROGRAM KEY PIN 		€0.80
TT 0428 1089D
PRE-PROGRAM KEY 		€6.00
Last items in stock
TT 0429 1088W
PRE-PROGRAM SCREW 		€9.00
Last items in stock
TT 0431 109RD
SPACER (C) 		€0.80
Out-of-Stock
TT 0432 TT0432
Alert Plunger Assembly 		€0.80
Out-of-Stock
TT 0434 109AM
DRIVE SHAFT HOLDER 		€6.00
Last items in stock
TT 0435 109R7
SPACER (D) 		€0.80
Out-of-Stock
TT 0436 10D63
FRICTION WASHER (C) 		€0.80
TT 0437 10QK4
DRIVE GEAR (A) 		€17.50
Last items in stock
TT 0438 109WS
DRIVE GEAR (B) 		€15.00
Last items in stock
TT 0439 10D5R
DRIVE SHAFT 		€25.00
Last items in stock
TT 0440 10A49
PINION GEAR (A) 		€12.00
Out-of-Stock
TT 0441 104LC
CROSS PIN 		€0.80
TT 0442 10N9H
PINION GEAR (B) 		€15.00
Last items in stock
TT 0443 109R8
00TGR130 PRE-LOAD WASHER 		€0.80
Out-of-Stock
TT 0444 1052G
PRE-LOAD SPRING 		€0.80
TT 0445 TT0445
Alert Ratchet 		€0.80
Out-of-Stock
TT 0446 10EWZ
MAIN SHAFT 		€6.00
Out-of-Stock
TT 0447 TT0447
Spool 		€0.80
Out-of-Stock
TT 0448 1060D
PRESSURE RELEASE SPRING 		€0.80
Out-of-Stock
TT 0449 10EVS
PRESSURE PLATE (A) 		€15.00
Out-of-Stock
TT 0450 10CCU
PRESSURE PLATE SPRING 		€0.80
TT 0451 10G10
DRAG WASHER 		€20.00
Last items in stock
TT 0452 TT0452
Drag Washer Screws 		€0.80
Out-of-Stock
TT 0453 TT0453
Drag Plate 		€0.80
Out-of-Stock
TT 0454 10EZ5
PRESSURE PLATE (B) 		€15.00
Last items in stock
TT 0455 10EYY
O RING 		€0.80
Out-of-Stock
TT 0456 TT0456
Cooling Shield 		€0.80
Out-of-Stock
TT 0457 TT0457
One-Piece Frame 		€0.80
Out-of-Stock
TT 0458 108L5
STAND SHIELD 		€0.80
TT 0459 10NV8
STAND 		€34.50
Last items in stock
TT 0460 1055E
STAND SCREW 		€0.80
Out-of-Stock
TT 0461 10DAF
ANTI-REVERSE RATCHET 		€9.00
Last items in stock
TT 0462 TT0462
Left Side Plate 		€0.80
Out-of-Stock
TT 0468 TT0468
Rod Clamp Bolt/Nuts 		€0.80
Out-of-Stock
TT 0469 TT0469
Rod Clamp Assembly 		€0.80
Out-of-Stock
TT 0470 10MJ4
WRENCH 		€4.00
Out-of-Stock
TT 0577 10BNW
BALL BEARING(18.54G)MADE IN JAPAN 		€15.00
TT 0578 10KX9
BALL BEARING(5.31G) MADE IN JAPAN 		€12.00
Last items in stock
