Find the part you need on the exploded view of the Shimano TIAGRA 12 (2003) reel, then order it directly from the list of available parts below.

Description

Identify the spare part(s) of the reel you need, then add them to the cart from the list of available spare parts located below the exploded view of the reel.

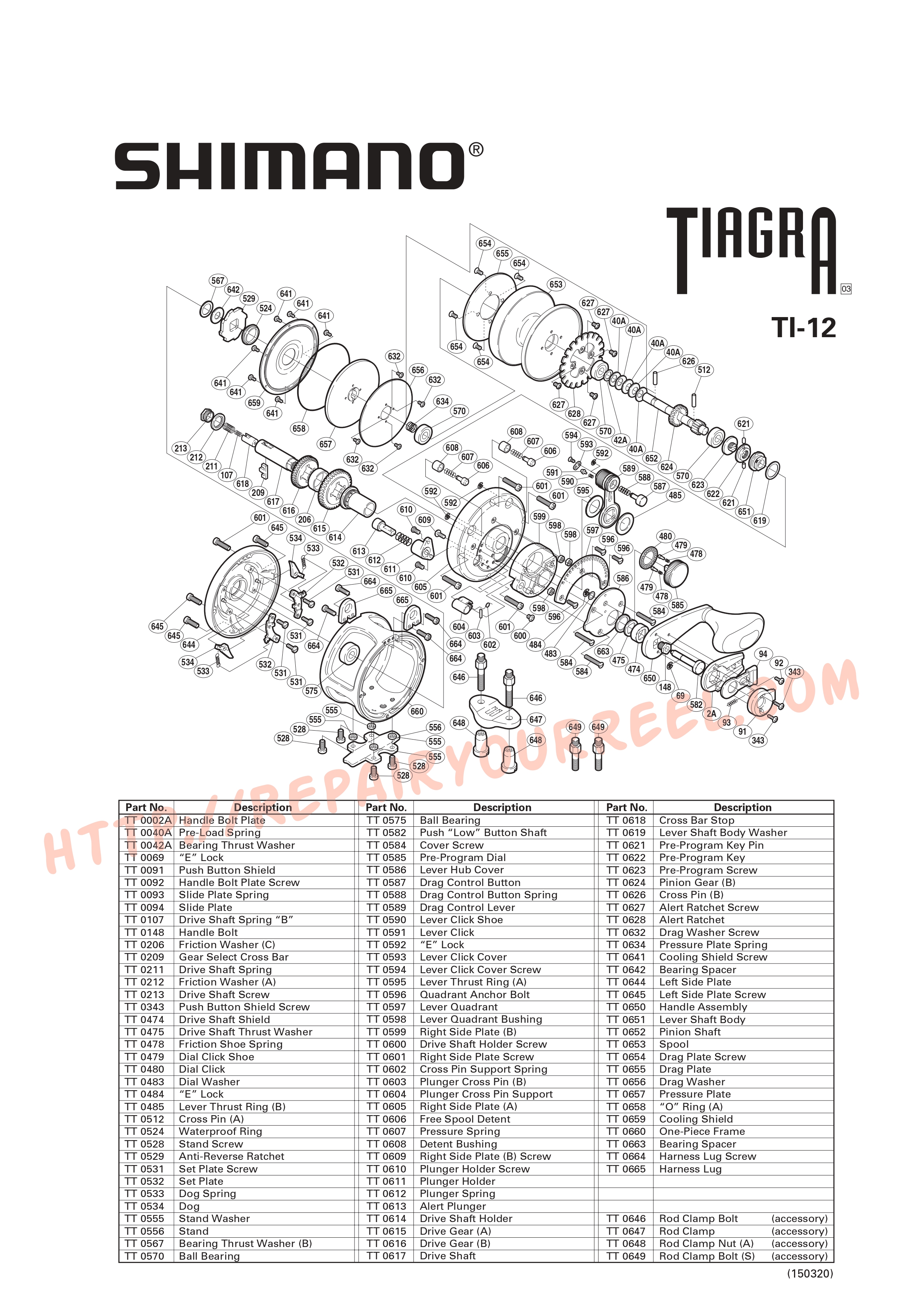

Exploded view of Shimano TIAGRA 12 (2003)

Product Details

Shimano Shimano
PARTS-Ti12

Data sheet

Type
Trolling
Series
TIAGRA
Size
12
Model
TI12
Generation
2003

Available parts for this reel

Old reference / Reference Price (Tax Excl.)
TT 0002 A / TT0002A
Handle Bolt Plate
☹ This part is not produced anymore
TT 0040 A / TT0040A
Pre-Load Spring
☹ This part is not produced anymore
TT 0042 A / TT0042A
Bearing Thrust Washer
☹ This part is not produced anymore
TT 0069 / TT0069
“E” Lock
☹ This part is not produced anymore
TT 0091 / TT0091
Push Button Shield
☹ This part is not produced anymore
TT 0092 / TT0092
Handle Bolt Plate Screw
☹ This part is not produced anymore
TT 0093 / TT0093
Slide Plate Spring
☹ This part is not produced anymore
TT 0094 / TT0094
Slide Plate
☹ This part is not produced anymore
TT 0107 / TT0107
Drive Shaft Spring “B”
☹ This part is not produced anymore
TT 0148 / TT0148
Handle Bolt
☹ This part is not produced anymore
TT 0206 / TT0206
Friction Washer (C)
☹ This part is not produced anymore
TT 0209 / TT0209
Gear Select Cross Bar
☹ This part is not produced anymore
TT 0211 / TT0211
Drive Shaft Spring
☹ This part is not produced anymore
TT 0212 / TT0212
Friction Washer (A)
☹ This part is not produced anymore
TT 0213 / TT0213
Drive Shaft Screw
☹ This part is not produced anymore
TT 0343 / TT0343
Push Button Shield Screw
☹ This part is not produced anymore
TT 0474 / TT0474
Drive Shaft Shield
☹ This part is not produced anymore
TT 0475 / TT0475
Drive Shaft Thrust Washer
☹ This part is not produced anymore
TT 0478 / TT0478
Friction Shoe Spring
☹ This part is not produced anymore
TT 0479 / TT0479
Dial Click Shoe
☹ This part is not produced anymore
TT 0480 / TT0480
Dial Click
☹ This part is not produced anymore
TT 0483 / TT0483
Dial Washer
☹ This part is not produced anymore
TT 0484 / TT0484
“E” Lock
☹ This part is not produced anymore
TT 0485 / TT0485
Lever Thrust Ring (B)
☹ This part is not produced anymore
TT 0512 / TT0512
Cross Pin (A)
☹ This part is not produced anymore
TT 0524 / TT0524
Waterproof Ring
☹ This part is not produced anymore
TT 0528 / TT0528
Stand Screw
☹ This part is not produced anymore
TT 0529 / TT0529
Anti-Reverse Ratchet
☹ This part is not produced anymore
TT 0531 / TT0531
Set Plate Screw
☹ This part is not produced anymore
TT 0532 / TT0532
Set Plate
☹ This part is not produced anymore
TT 0533 / TT0533
Dog Spring
☹ This part is not produced anymore
TT 0534 / TT0534
Dog
☹ This part is not produced anymore
TT 0555 / TT0555
Stand Washer
☹ This part is not produced anymore
TT 0556 / TT0556
Stand
☹ This part is not produced anymore
TT 0567 / TT0567
Bearing Thrust Washer (B)
☹ This part is not produced anymore
TT 0570 / TT0570
Ball Bearing
☹ This part is not produced anymore
TT 0575 / TT0575
Ball Bearing
☹ This part is not produced anymore
TT 0582 / TT0582
Push “Low” Button Shaft
☹ This part is not produced anymore
TT 0584 / TT0584
Cover Screw
☹ This part is not produced anymore
TT 0585 / TT0585
Pre-Program Dial
☹ This part is not produced anymore
TT 0586 / TT0586
Lever Hub Cover
☹ This part is not produced anymore
TT 0587 / TT0587
Drag Control Button
☹ This part is not produced anymore
TT 0588 / TT0588
Drag Control Button Spring
☹ This part is not produced anymore
TT 0589 / TT0589
Drag Control Lever
☹ This part is not produced anymore
TT 0590 / TT0590
Lever Click Shoe
☹ This part is not produced anymore
TT 0591 / TT0591
Lever Click
☹ This part is not produced anymore
TT 0592 / TT0592
“E” Lock
☹ This part is not produced anymore
TT 0593 / TT0593
Lever Click Cover
☹ This part is not produced anymore
TT 0594 / TT0594
Lever Click Cover Screw
☹ This part is not produced anymore
TT 0595 / TT0595
Lever Thrust Ring (A)
☹ This part is not produced anymore
TT 0596 / TT0596
Quadrant Anchor Bolt
☹ This part is not produced anymore
TT 0597 / TT0597
Lever Quadrant
☹ This part is not produced anymore
TT 0598 / TT0598
Lever Quadrant Bushing
☹ This part is not produced anymore
TT 0599 / TT0599
Right Side Plate (B)
☹ This part is not produced anymore
TT 0600 / TT0600
Drive Shaft Holder Screw
☹ This part is not produced anymore
TT 0601 / TT0601
Right Side Plate Screw
☹ This part is not produced anymore
TT 0602 / TT0602
Cross Pin Support Spring
☹ This part is not produced anymore
TT 0603 / TT0603
Plunger Cross Pin (B)
☹ This part is not produced anymore
TT 0604 / TT0604
Plunger Cross Pin Support
☹ This part is not produced anymore
TT 0605 / TT0605
Right Side Plate (A)
☹ This part is not produced anymore
TT 0606 / TT0606
Free Spool Detent
☹ This part is not produced anymore
TT 0607 / TT0607
Pressure Spring
☹ This part is not produced anymore
TT 0608 / TT0608
Detent Bushing
☹ This part is not produced anymore
TT 0609 / TT0609
Right Side Plate (B) Screw
☹ This part is not produced anymore
TT 0610 / TT0610
Plunger Holder Screw
☹ This part is not produced anymore
TT 0611 / TT0611
Plunger Holder
☹ This part is not produced anymore
TT 0612 / TT0612
Plunger Spring
☹ This part is not produced anymore
TT 0613 / TT0613
Alert Plunger
☹ This part is not produced anymore
TT 0614 / TT0614
Drive Shaft Holder
☹ This part is not produced anymore
TT 0615 / TT0615
Drive Gear (A)
☹ This part is not produced anymore
TT 0616 / TT0616
Drive Gear (B)
☹ This part is not produced anymore
TT 0617 / TT0617
Drive Shaft
☹ This part is not produced anymore
TT 0618 / TT0618
Cross Bar Stop
☹ This part is not produced anymore
TT 0619 / TT0619
Lever Shaft Body Washer
☹ This part is not produced anymore
TT 0621 / TT0621
Pre-Program Key Pin
☹ This part is not produced anymore
TT 0622 / TT0622
Pre-Program Key
☹ This part is not produced anymore
TT 0623 / TT0623
Pre-Program Screw
☹ This part is not produced anymore
TT 0624 / TT0624
Pinion Gear (B)
☹ This part is not produced anymore
TT 0626 / TT0626
Cross Pin (B)
☹ This part is not produced anymore
TT 0627 / TT0627
Alert Ratchet Screw
☹ This part is not produced anymore
TT 0628 / TT0628
Alert Ratchet
☹ This part is not produced anymore
TT 0632 / TT0632
Drag Washer Screw
☹ This part is not produced anymore
TT 0634 / TT0634
Pressure Plate Spring
☹ This part is not produced anymore
TT 0641 / TT0641
Cooling Shield Screw
☹ This part is not produced anymore
TT 0642 / TT0642
Bearing Spacer
☹ This part is not produced anymore
TT 0644 / TT0644
Left Side Plate
☹ This part is not produced anymore
TT 0645 / TT0645
Left Side Plate Screw
☹ This part is not produced anymore
TT 0646 / TT0646
Rod Clamp Bolt (accessory)
☹ This part is not produced anymore
TT 0647 / TT0647
Rod Clamp (accessory)
☹ This part is not produced anymore
TT 0648 / TT0648
Rod Clamp Nut (A) (accessory)
☹ This part is not produced anymore
TT 0649 / TT0649
Rod Clamp Bolt (S) (accessory)
☹ This part is not produced anymore
TT 0650 / TT0650
Handle Assembly
☹ This part is not produced anymore
TT 0651 / TT0651
Lever Shaft Body
☹ This part is not produced anymore
TT 0652 / TT0652
Pinion Shaft
☹ This part is not produced anymore
TT 0653 / TT0653
Spool
☹ This part is not produced anymore
TT 0654 / TT0654
Drag Plate Screw
☹ This part is not produced anymore
TT 0655 / TT0655
Drag Plate
☹ This part is not produced anymore
TT 0656 / TT0656
Drag Washer
☹ This part is not produced anymore
TT 0657 / TT0657
Pressure Plate
☹ This part is not produced anymore
TT 0658 / TT0658
“O” Ring (A)
☹ This part is not produced anymore
TT 0659 / TT0659
Cooling Shield
☹ This part is not produced anymore
TT 0660 / TT0660
One-Piece Frame
☹ This part is not produced anymore
TT 0663 / TT0663
Bearing Spacer
☹ This part is not produced anymore
TT 0664 / TT0664
Harness Lug Screw
☹ This part is not produced anymore
TT 0665 / TT0665
Harness Lug
☹ This part is not produced anymore
