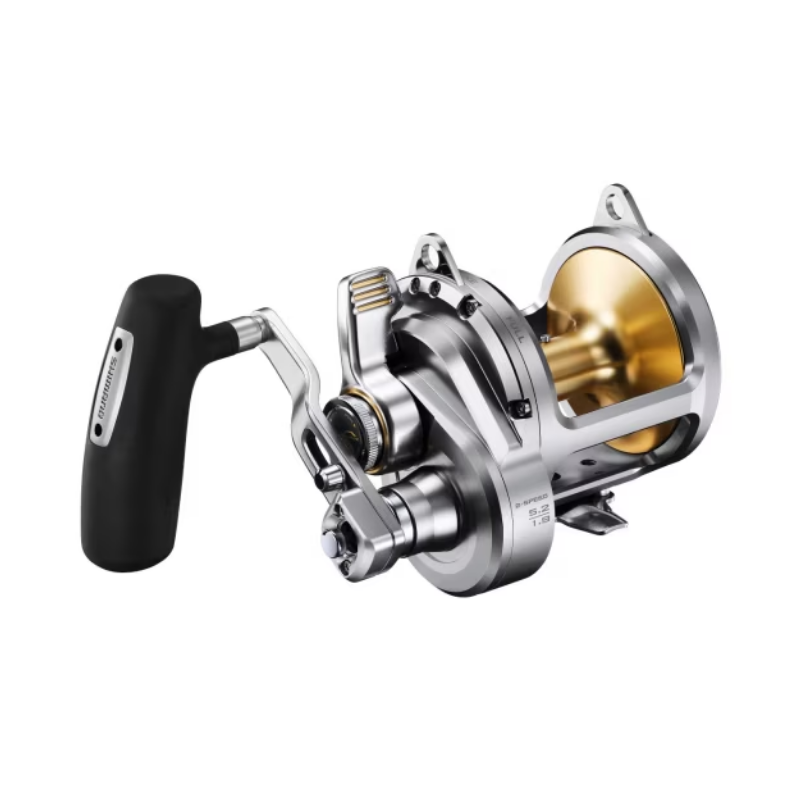

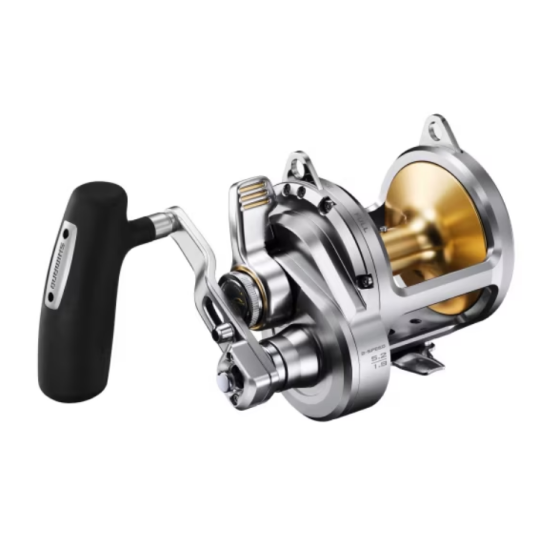

Parts for Shimano TALICA 25IIA (2024) reel
PARTS-TAC25IIA
Find the part you need on the exploded view of the Shimano TALICA 25IIA (2024) reel, then order it directly from the list of available parts below.
Description
Identify the spare part(s) of the reel you need, then add them to the cart from the list of available spare parts located below the exploded view of the reel.
Product Details
Shimano
PARTS-TAC25IIA
Data sheet
- Type
- Trolling
- Series
- TALICA
- Size
- 25
- Model
- TAC25IIA
- Generation
- 2024
Available parts for this reel
| Number in exploded view | Old reference | Reference | Price (Tax Excl.) | |
|---|---|---|---|---|
| 0001 |
13ZQG
TRX M2.6X10 CR NL4 |
€0.80 |
Out-of-Stock
|
|
| 0002 |
13ZQH
23TAC122SP_PUSH BUTTON SHIELD |
€0.80 |
Out-of-Stock
|
|
| 0003 | TGT 1475 |
10PWJ
09TAC8-2 S/P SPRING |
€0.80 |
Out-of-Stock
|
| 0004 |
13ZRS
23TAC122SP_SLIDE PLATE ASSY |
€0.80 |
Out-of-Stock
|
|
| 0005 | TGT 1477 |
10PBN
09TAC8-2 H/N PLATE |
€0.80 |
Out-of-Stock
|
| 0006 | TGT 1552 |
109XB
09TAC12-2 P/L/B SHFT |
€0.80 |
Out-of-Stock
|
| 0007 | TGT 0062, TLD 0018, TT 0069 |
105NK
E LOCK |
€0.80 |
|
| 0008 | TGT 1479 |
106XP
09TAC8-2 HANDLE BOLT |
€0.80 |
Out-of-Stock
|
| 0009 | TGT 0809, TT 0782, RD 5947 |
103NH
CLUTCH CAM SCREW |
€0.80 |
Out-of-Stock
|
| 0012 | TGT 0729, TT 0531, RD 2110 |
103E9
SLIDER RETAINER SCREW |
€0.80 |
Out-of-Stock
|
| 0013 | RD 18410 |
10EU0
08BIO6PG H/K BUSH A |
€0.80 |
|
| 0015 | TGT 1700, RD 14171 |
104UJ
08BIO6PG H/K BUSH B |
€0.80 |
|
| 0016 | RD 19745 |
104FH
HANDLE KNOB WASHER SET |
€0.80 |
|
| 0017 |
14826
HANDLE SHANK ASSY |
€0.80 |
Out-of-Stock
|
|
| 0019 | TGT 1554 |
10KZS
09TAC12-2 D/S SHIELD |
€0.80 |
Out-of-Stock
|
| 0020 | TGT 1555 |
10G9V
09TAC12-2 D/S W 0.5 |
€0.80 |
Out-of-Stock
|
| 0021 | TGT 1556 |
109AR
09TAC12-2 D/G BUSH |
€0.80 |
Out-of-Stock
|
| 0022 |
14828
PRE-PROGRAM DIAL ASSY |
€0.80 |
Out-of-Stock
|
|
| 0023 | TGT 1484 |
10K07
09TAC8 CLICK SPRING |
€0.80 |
Out-of-Stock
|
| 0024 | TGT 1485 |
10JX6
09TAC8 CLICK PIN |
€0.80 |
Out-of-Stock
|
| 0025 |
141Q0
24TAC202SP_LEVER SHAFT BODY |
€0.80 |
Out-of-Stock
|
|
| 0026 |
14829
DRAG CONTROL LEVER ASSY |
€0.80 |
Out-of-Stock
|
|
| 0027 |
13ZQM
23TAC122SP_LEVER CLICK |
€0.80 |
Out-of-Stock
|
|
| 0028 | TGT 1489 |
10C3X
09TAC8 L/CLICK SHOE |
€0.80 |
Out-of-Stock
|
| 0029 |
13ZQN
23TAC122SP_LEVER CLICK COVER |
€0.80 |
Out-of-Stock
|
|
| 0030 |
10S65
TEITOU M2X4 NL1 |
€0.80 |
Out-of-Stock
|
|
| 0031 |
141Q1
24TAC202SP_LEVER PROTECTOR |
€0.80 |
Out-of-Stock
|
|
| 0032 |
13ZQQ
LH M2X5 RP NL4 |
€0.80 |
Out-of-Stock
|
|
| 0033 | TGT 1215 |
108DP
08TS40 LVR TRST RING |
€0.80 |
Out-of-Stock
|
| 0034 | TGT 1216 |
10G6G
08TS40 LVR TRST RING |
€0.80 |
Out-of-Stock
|
| 0035 | TGT 1707 |
10F6C
09TAC20-2 L/C GEAR |
€0.80 |
Out-of-Stock
|
| 0036 |
13ZQR
TRX M3X9 CR NL4 |
€0.80 |
Out-of-Stock
|
|
| 0037 |
1482A
A SIDE PLATE ASSY |
€0.80 |
Out-of-Stock
|
|
| 0038 | TGT 0767 |
10M6X
TN-20 B-S/P SRW PL |
€0.80 |
Out-of-Stock
|
| 0039 |
141PF
24TAC202SP_HARNESS LUG |
€0.80 |
Out-of-Stock
|
|
| 0040 | TGT 1227 |
104JP
BALL BEARINGMADE IN JAPAN |
€0.80 |
Out-of-Stock
|
| 0041 |
141PP
24TAC202SP_PRE-LOAD WASHER |
€0.80 |
Out-of-Stock
|
|
| 0042 | TGT 2099 |
10PFS
12TAC50-2 ANTI-REVERSE PAWL PIN |
€0.80 |
Out-of-Stock
|
| 0043 | TGT 0883 |
10MWC
05TS30 A/R PAWL ASSY |
€0.80 |
Out-of-Stock
|
| 0044 | TGT 1710 |
10KVG
09TAC20-2 AR PWL KPR |
€0.80 |
Out-of-Stock
|
| 0045 | TGT 1965 |
1055F
LH M2.6X5 NL |
€0.80 |
Out-of-Stock
|
| 0046 |
141PM
24TAC202SP_PINION GEAR A |
€0.80 |
Out-of-Stock
|
|
| 0047 |
141PG
24TAC202SP_PINION GEAR B |
€0.80 |
Out-of-Stock
|
|
| 0048 | TGT 1715 |
10DAN
09TAC20-2 A/R RATCHT |
€0.80 |
Out-of-Stock
|
| 0049 | TGT 1567 |
10KXA
BALL BEARINGMADE IN JAPAN |
€0.80 |
Out-of-Stock
|
| 0050 |
13ZQW
23TAC122SP_DRIVE GEAR WASHER B |
€0.80 |
Out-of-Stock
|
|
| 0051 |
141Q3
24TAC202SP_DRIVE GEAR A |
€0.80 |
Out-of-Stock
|
|
| 0052 | TGT 0990, TT 0206 |
10D61
FRICTION WASHER (C) |
€0.80 |
|
| 0053 |
141Q5
24TAC202SP_DRIVE GEAR B |
€0.80 |
Out-of-Stock
|
|
| 0054 | TGT 1571 |
10D6L
09TAC12-2 DRIVESHAFT |
€0.80 |
Out-of-Stock
|
| 0055 | TGT 0993, TT 0209 |
10KXH
GEAR SELECT CROSS BAR |
€12.00 |
Out-of-Stock
|
| 0056 | TGT 0994, TT 0210 |
10KXL
CROSS BAR STOP |
€4.00 |
Last items in stock
|
| 0057 | TGT 0995, TT 0107 |
109VM
DRIVE SHAFT SPRING B |
€0.80 |
|
| 0058 | TGT 0996, TT 0211 |
10KXQ
DRIVE SHAFT SPRING |
€0.80 |
|
| 0059 | TGT 0997, TT 0212 |
10D5B
FRICTION WASHER (A) |
€0.80 |
Out-of-Stock
|
| 0060 | TGT 1572, TT 0213 |
10FCD
DRIVE SHAFT SCREW |
€4.00 |
Last items in stock
|
| 0062 | TGT 1230 |
10EWA
08TS40 W/P RING |
€0.80 |
Out-of-Stock
|
| 0063 | TGT 1577, RD 9872 |
10PRU
PAN3 M1.6X4 |
€0.80 |
|
| 0064 |
141PR
24TAC202SP_COOLING SHIELD |
€0.80 |
Out-of-Stock
|
|
| 0065 | TT 0581 |
10EYZ
O RING (A) |
€0.80 |
|
| 0065 | RD 17045 |
1090B
15TPSW5000HG O RING SS042 |
€0.80 |
Last items in stock
|
| 0066 |
141PN
24TAC202SP_PINION GUARD |
€0.80 |
Out-of-Stock
|
|
| 0067 |
141PT
24TAC202SP_DRAG WASHER |
€0.80 |
Out-of-Stock
|
|
| 0068 |
141PS
24TAC202SP_DRAG PLATE SCREW |
€0.80 |
Out-of-Stock
|
|
| 0069 |
141R4
24TAC202SP_DRAG PLATE |
€0.80 |
Out-of-Stock
|
|
| 0070 | TGT 1583, TT 0875, RD 13374 |
104Q5
BALL BEARING MADE IN CAMBODIA |
€4.00 |
|
| 0071 |
13ZR5
23TAC122SP_DRAG SPRING |
€0.80 |
Out-of-Stock
|
|
| 0072 |
141PU
24TAC202SP_PRESSURE PLATE B |
€0.80 |
Out-of-Stock
|
|
| 0073 | TGT 0827, TLD 0212, TT 0570 |
104VH
BALL BEARING(4.66G) MADE IN THAILAND |
€0.80 |
Out-of-Stock
|
| 0073 | TGT 1513 |
104VJ
BALL BEARING MADE IN JAPAN |
€0.80 |
Out-of-Stock
|
| 0074 |
13ZR7
23TAC122SP_BEARING RETAINER |
€0.80 |
Out-of-Stock
|
|
| 0075 |
141QS
23TAC122SP_WASHER 0.2 |
€0.80 |
Out-of-Stock
|
|
| 0076 |
141R3
24TAC202SP_BEARING SPACER |
€0.80 |
Out-of-Stock
|
|
| 0078 | TT 0630 |
10KJ6
CMA-1GTX DRAG PLATE SPRING |
€0.80 |
Out-of-Stock
|
| 0080 |
13ZRC
23TAC122SP_CROSS PIN B |
€0.80 |
Out-of-Stock
|
|
| 0083 |
13ZRF
23TAC122SP_DRAG SPRING SPACER |
€0.80 |
Out-of-Stock
|
|
| 0084 |
13ZRG
23TAC122SP_PRESSURE RELEASE SPRING |
€0.80 |
Out-of-Stock
|
|
| 0085 |
13ZRH
23TAC122SP_SPRING WASHER |
€0.80 |
Out-of-Stock
|
|
| 0086 | TGT 0900, TT 0382 |
105RZ
E LOCK |
€0.80 |
Out-of-Stock
|
| 0087 |
141PQ
24TAC202SP_CLICK GEAR |
€0.80 |
Out-of-Stock
|
|
| 0088 | TGT 1590 |
108W4
09TAC12 C/S SHAFT |
€0.80 |
Out-of-Stock
|
| 0089 | TGT 1722 |
10LVH
PAN M2X5 RP |
€0.80 |
Out-of-Stock
|
| 0090 |
141QU
24TAC202SP_SET PLATE STICKER |
€0.80 |
Out-of-Stock
|
|
| 0092 |
144C6
04STL3B/H/S AJST W.18 |
€0.80 |
Out-of-Stock
|
|
| 0093 | TGT 1592 |
10GA6
09TAC12 CLC BTN W C |
€0.80 |
Out-of-Stock
|
| 0094 | TGT 1589 |
104B0
09TAC12 C/P SPRING |
€0.80 |
Out-of-Stock
|
| 0095 | TGT 1591 |
10GQW
09TAC12 CLICK PAWL |
€0.80 |
Out-of-Stock
|
| 0096 | TGT 0065, TLD 0053, TT 0216 |
104H2
T-300 CLICK BUTTON SPACER |
€0.80 |
Out-of-Stock
|
| 0097 | TGT 1595 |
104MS
09TAC12 C/S CAM |
€0.80 |
Out-of-Stock
|
| 0098 |
1459G
24TAC202SP_CLICK BUTTON |
€0.80 |
Out-of-Stock
|
|
| 0099 | TGT 1313 |
10M6T
08TN20DC B-S/P SRW P |
€0.80 |
Out-of-Stock
|
| 0100 | TGT 1251 |
10JBZ
08TS40 ROD CLAMP BLT |
€0.80 |
Out-of-Stock
|
| 0101 |
145R5
24TAC202SP_ROD CLAMP NUT A |
€0.80 |
Out-of-Stock
|
|
| 0102 | TT 0755 |
10LSQ
SLIDER RETAINER SCREW |
€0.80 |
|
| 0121 | TGT 1598 |
10AS1
09TAC12 ROD CLAMP |
€0.80 |
Out-of-Stock
|
| 0122 | TGT 1967 |
10JBX
05TS30 ROD CLAMP NUT |
€0.80 |
Out-of-Stock
|
| 0123 |
141Q2
24TAC202SP_LEVER SHAFT BODY (SFS) |
€0.80 |
Out-of-Stock
|
|
| 0124 | TGT 1547 |
10MJ8
09TAC8-2 REEL WRENCH |
€0.80 |
Out-of-Stock
|
| 0125 |
141PC
24TAC202SP_HARNESS LUG PLUG |
€0.80 |
Out-of-Stock
|
|
| 0201 |
144ZR
24JGLD2500HG_HANDLE KNOB ID PLATE |
€0.80 |
Out-of-Stock
|
|
| 0202 |
144ZM
24JGLD2500HG_HANDLE KNOB |
€0.80 |
Out-of-Stock
|
|
| 0203 |
144ZQ
24JGLD2500HG_HANDLE KNOB SEAL |
€0.80 |
Out-of-Stock
|
|
| 0204 |
1482C
HANDLE ASSY |
€0.80 |
Out-of-Stock
|
|
| 0205 |
141PL
24TAC252SP_SPOOL SHAFT |
€0.80 |
Out-of-Stock
|
|
| 0206 |
14866
SPOOL UNIT |
€0.80 |
Out-of-Stock
|
|
| 0207 |
141R5
24TAC252SP_SPOOL SHAFT COLLAR |
€0.80 |
Out-of-Stock
|
|
| 0208 |
1482D
FRAME ASSY |
€0.80 |
Out-of-Stock
|
