Parts for Shimano STELLA STLSW6000HGC reel
PARTS-STLSW6000HGC
- New

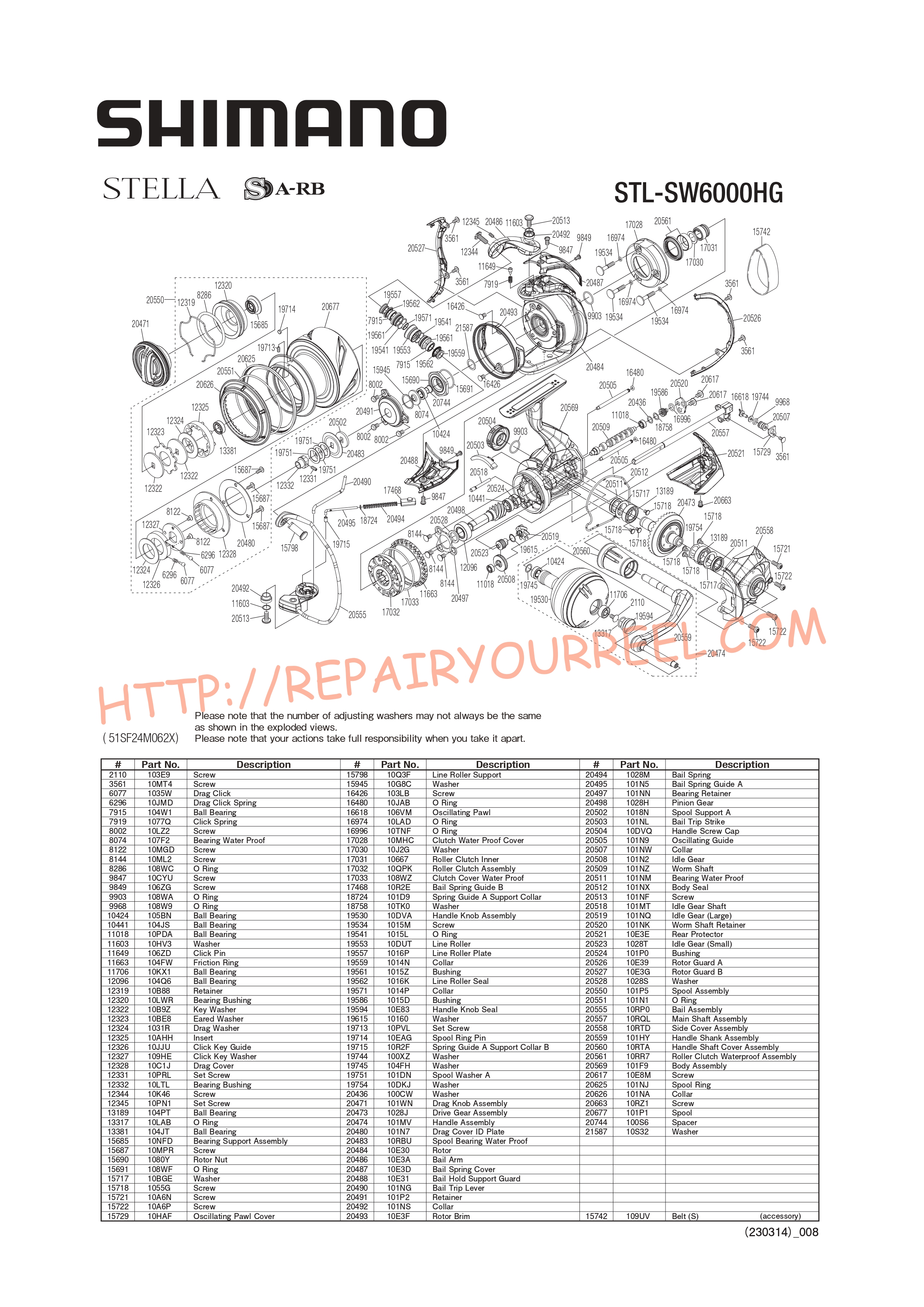

Find the part you need on the exploded view of the Shimano STELLA STLSW6000HGC reel, then order it directly from the list of available parts below.
Description
Identify the spare part(s) of the reel you need, then add them to the cart from the list of available spare parts located below the exploded view of the reel.
Product Details
Shimano
PARTS-STLSW6000HGC
Data sheet
- Type
- Spinning
- Series
- STELLA
- Size
- 6000
- Model
- STLSW6000HGC
Available parts for this reel
|
Old reference /
Reference
Name |
Price (Tax Excl.) | |
|---|---|---|
|
RD10424 /
105BN
BALL BEARING MADE IN THAILAND |
€6.00 |
Out-of-Stock
|
|
RD10441 /
104JS
BALL BEARINGMADE IN THAILAND |
€6.00 |
Out-of-Stock
|
|
RD11018 /
10PDA
BALL BEARINGMADE IN THAILAND |
€6.00 |
|
|
RD11603 /
10HV3
WASHER 5.2X6.7X0.1 |
€0.80 |
Out-of-Stock
|
|
RD11649 /
106ZD
07STL4000 CLICK PIN |
€0.80 |
Out-of-Stock
|
|
RD11663 /
104FW
07STL4 FRCTIN RING |
€0.80 |
Out-of-Stock
|
|
RD11706 /
10KX1
BALL BEARINGMADE IN THAILAND |
€6.00 |
Out-of-Stock
|
|
RD12096 /
104Q6
BALL BEARINGMADE IN THAILAND |
€4.00 |
Out-of-Stock
|
|
RD12319 /
10B88
08STLSW5HG D/W RTNR |
€0.80 |
Out-of-Stock
|
|
RD12320 /
10LWR
08STLSW5HG TRST BSH |
€6.00 |
Out-of-Stock
|
|
RD12322 /
10B9Z
08STLSW5000HG KEY W |
€0.80 |
Out-of-Stock
|
|
RD12323 /
10BE8
08STLSW5HG EARED W |
€12.00 |
Out-of-Stock
|
|
RD12324 /
1031R
08STLSW5HG DRAG W |
€4.00 |
Out-of-Stock
|
|
RD12325 /
10AHH
08STLSW5HG SPL INSRT |
€0.80 |
Out-of-Stock
|
|
RD12326 /
10JJU
08STLSW5HG D/C HLDR |
€4.00 |
Out-of-Stock
|
|
RD12327 /
109HE
08STLSW5HG D/C/H CVR |
€0.80 |
Out-of-Stock
|
|
RD12328 /
10C1J
08STLSW5HG DRAG CVR |
€0.80 |
Out-of-Stock
|
|
RD12331 /
10PRL
SETSCREW M2X5 KS |
€0.80 |
Out-of-Stock
|
|
RD12332 /
10LTL
08STLSW5HG BRNG BSH |
€4.00 |
Out-of-Stock
|
|
RD12344 /
10K46
08STLSW5HG L/R SCREW |
€0.80 |
|
|
RD12345 /
10PN1
SETSCREW M2X3 |
€0.80 |
Out-of-Stock
|
|
RD13189 /
104PT
BALL BEARINGMADE IN THAILAND |
€4.00 |
|
|
RD13317 /
10LAB
O RING NOK SS9 |
€0.80 |
Out-of-Stock
|
|
RD13381 /
104JT
BALL BEARINGMADE IN THAILAND |
€4.00 |
Out-of-Stock
|
|
RD15685 /
10NFD
13STLSW5HG B/S ASSY |
€9.00 |
Out-of-Stock
|
|
RD15687 /
10MPR
TRS M2X5 RP |
€0.80 |
Out-of-Stock
|
|
RD15690 /
1080Y
13STLSW5HG ROTORNUT |
€4.00 |
Out-of-Stock
|
|
RD15691 /
108WF
05BBXTMGC3 O RING |
€0.80 |
Last items in stock
|
|
RD15717 /
10BGE
13STLSW5HG S/C B W |
€0.80 |
|
|
RD15718 /
1055G
13STLSW5HG SCREW |
€0.80 |
|
|
RD15721 /
10A6N
13STLSW5HG S/C SRW B |
€0.80 |
Out-of-Stock
|
|
RD15722 /
10A6P
13STLSW5HG S/C SRW A |
€0.80 |
Out-of-Stock
|
|
RD15729 /
10HAF
13STLSW5HG O/P CVR |
€0.80 |
Out-of-Stock
|
|
RD15742 /
109UV
13STL-SW LINE BAND S |
€4.00 |
Out-of-Stock
|
|
RD15798 /
10Q3F
13STLSW8HG L/R SPRT |
€6.00 |
|
|
RD15945 /
10G8C
09CU200E7 WASHER |
€0.80 |
Out-of-Stock
|
|
RD16426 /
103LB
TRS M2.6X4 SH RP |
€0.80 |
Out-of-Stock
|
|
RD16480 /
10JAB
14STL25 O RING SS015 |
€0.80 |
|
|
RD16618 /
106VM
14STL4000 OSC PAWL |
€4.00 |
Out-of-Stock
|
|
RD16974 /
10LAD
09CH100D7 O RING SS3 |
€0.80 |
Out-of-Stock
|
|
RD16996 /
10TNF
O RING SS4.5 |
€0.80 |
|
|
RD17028 /
10MHC
15TPSW5HG ROLLER CLUTCH WATER PROOF COV |
€0.80 |
Out-of-Stock
|
|
RD17030 /
10J2G
15TPSW5000HG ROTOR WASHER |
€0.80 |
Out-of-Stock
|
|
RD17031 /
10667
95STL1CLCH INR S |
€4.00 |
Out-of-Stock
|
|
RD17032 /
10QPK
15TPSW5000HG ROLLER CLUTCH ASSY |
€6.00 |
Out-of-Stock
|
|
RD17033 /
108WZ
15TPSW5000HG O RING |
€0.80 |
Out-of-Stock
|
|
RD17468 /
10R2E
16VQ2500S BAIL SPRING GUIDE B |
€0.80 |
Out-of-Stock
|
|
RD18724 /
101D9
18STL2500 SPRING GUIDE A SUPPORT COLLA |
€0.80 |
Out-of-Stock
|
|
RD18758 /
10TK0
SUS 4.05X5.8X0.1 |
€0.80 |
Out-of-Stock
|
|
RD19530 /
10DVA
19STLSW80HG HANDLE KNOB ASSY |
€38.00 |
Out-of-Stock
|
|
RD19534 /
1015M
TRS M2.6X14.5 BH |
€0.80 |
Out-of-Stock
|
|
RD19541 /
1015L
19STLSW80HG O RING 8.5 |
€0.80 |
Out-of-Stock
|
|
RD19553 /
10DUT
19STLSW80HG LINE ROLLER |
€15.00 |
Out-of-Stock
|
|
RD19557 /
1016P
19STLSW80HG LINE ROLLER PLATE |
€0.80 |
Out-of-Stock
|
|
RD19559 /
1014N
19STLSW80HG LINE ROLLER SUPPORT COLLAR |
€0.80 |
Out-of-Stock
|
|
RD19561 /
1015Z
19STLSW80HG LINE ROLLER BUSHING |
€0.80 |
Out-of-Stock
|
|
RD19562 /
1016K
19STLSW80HG LINE ROLLER SEAL |
€0.80 |
Out-of-Stock
|
|
RD19571 /
1014P
19STLSW80HG BEARING SPACER |
€0.80 |
Out-of-Stock
|
|
RD19586 /
1015D
19STLSW80HG WORM BUSHING REAR |
€0.80 |
Out-of-Stock
|
|
RD19594 /
10E83
19STLSW80HG HANDLE KNOB SEAL |
€4.00 |
Out-of-Stock
|
|
RD19615 /
10160
SPRING WASHER C5.25X6.5X0.05 |
€0.80 |
Out-of-Stock
|
|
RD19713 /
10PVL
SETSCREW M2X4 HEXAHOLE |
€0.80 |
Out-of-Stock
|
|
RD19714 /
10EAG
17EXS4MXG SPOOL RING PIN |
€0.80 |
Out-of-Stock
|
|
RD19715 /
10R2F
16VQ2500S BAIL SPRING GUIDE A BUSH |
€0.80 |
Out-of-Stock
|
|
RD19744 /
100XZ
04STL3 WORM SHAFT WASHER SET |
€4.00 |
Out-of-Stock
|
|
RD19745 /
104FH
HANDLE KNOB WASHER SET |
€0.80 |
Out-of-Stock
|
|
RD19751 /
101DN
04BBXMG3D SPOOL WASHER SET |
€6.00 |
Out-of-Stock
|
|
RD19754 /
10DKJ
98STL5H DRIVE GEAR WASHER SET |
€4.00 |
Last items in stock
|
|
RD20436 /
100CW
TPGT WORM SHAFT PIN WASHER SET SPINNING |
€4.00 |
Out-of-Stock
|
|
RD20471 /
101WN
20STLSW50HG DRAG KNOB ASSY |
€39.10 |
Out-of-Stock
|
|
RD20473 /
1028J
20STLSW50HG DRIVE GEAR ASSY |
€39.10 |
Out-of-Stock
|
|
RD20474 /
101MV
20STLSW50HG HANDLE ASSY |
€86.40 |
Out-of-Stock
|
|
RD20480 /
101N7
20STLSW50HG DRAG COVER I.D PLATE |
€0.80 |
Out-of-Stock
|
|
RD20483 /
10RBU
20STLSW50HG BEARING WATER PROOF |
€0.80 |
Out-of-Stock
|
|
RD20484 /
10E30
20STLSW50HG ROTOR |
€45.00 |
Out-of-Stock
|
|
RD20486 /
10E3A
20STLSW50HG BAIL ARM |
€27.50 |
Out-of-Stock
|
|
RD20487 /
10E3D
20STLSW50HG BAIL SPRING COVER |
€6.00 |
Out-of-Stock
|
|
RD20488 /
10E31
20STLSW50HG BAIL HOLD SUPPORT GUARD |
€6.00 |
Out-of-Stock
|
|
RD20490 /
101NG
20STLSW50HG BAIL TRIP LEVER |
€0.80 |
Out-of-Stock
|
|
RD20491 /
101P2
20STLSW50HG NUT LOCK PLATE |
€0.80 |
Out-of-Stock
|
|
RD20492 /
101NS
20STLSW50HG BAIL ARM SCREW COLLAR |
€0.80 |
Out-of-Stock
|
|
RD20493 /
10E3F
20STLSW50HG ROTOR BRIM |
€4.00 |
Out-of-Stock
|
|
RD20494 /
1028M
20STLSW50HG BAIL SPRING |
€0.80 |
Out-of-Stock
|
|
RD20495 /
101N5
20STLSW50HG BAIL SPRING GUIDE A |
€0.80 |
Out-of-Stock
|
|
RD20497 /
101NN
20STLSW50HG BEARING RETAINER |
€0.80 |
Out-of-Stock
|
|
RD20498 /
1028H
20STLSW50HG PINION GEAR |
€15.00 |
Out-of-Stock
|
|
RD20502 /
1018N
20STLSW50HG SPOOL SUPPORT (A) |
€0.80 |
Out-of-Stock
|
|
RD20503 /
101NL
20STLSW50HG BAIL TRIP STRIKE |
€0.80 |
Out-of-Stock
|
|
RD20504 /
10DVQ
20STLSW50HG HANDLE SCREW CAP |
€15.00 |
Out-of-Stock
|
|
RD20505 /
101N9
20STLSW50HG OSCILLATING GUIDE |
€0.80 |
Out-of-Stock
|
|
RD20507 /
101NW
20STLSW50HG OSCILLATING SLIDER BUSHING |
€0.80 |
Out-of-Stock
|
|
RD20508 /
101N2
20STLSW50HG IDLE GEAR |
€6.00 |
Out-of-Stock
|
|
RD20509 /
101NZ
20STLSW50HG WORM SHAFT |
€4.00 |
Out-of-Stock
|
|
RD20511 /
101NM
20STLSW50HG BEARING WATER PROOF |
€0.80 |
Out-of-Stock
|
|
RD20512 /
101NX
20STLSW50HG BODY SEAL |
€0.80 |
Out-of-Stock
|
|
RD20513 /
101NF
20STLSW50HG BAIL ARM SCREW |
€0.80 |
Out-of-Stock
|
|
RD20518 /
101MT
20STLSW50HG IDLE GEAR B SHAFT |
€0.80 |
Out-of-Stock
|
|
RD20519 /
101NQ
20STLSW50HG IDLE GEAR (LARGE) |
€6.00 |
Out-of-Stock
|
|
RD20520 /
101NK
20STLSW50HG WORM SHAFT RETAINER |
€0.80 |
Out-of-Stock
|
|
RD20521 /
10E3E
20STLSW50HG REAR PROTECTOR |
€9.00 |
Out-of-Stock
|
|
RD20523 /
1028T
20STLSW50HG IDLE GEAR B (SMALL) |
€6.00 |
Out-of-Stock
|
|
RD20524 /
101P0
20STLSW50HG BUSHING (PINION GEAR) (REAR) |
€0.80 |
Out-of-Stock
|
|
RD20526 /
10E39
20STLSW50HG ROTOR GUARD A |
€0.80 |
Out-of-Stock
|
|
RD20527 /
10E3G
20STLSW50HG ROTOR GUARD (B) |
€0.80 |
Out-of-Stock
|
|
RD20528 /
1028S
20STLSW50HG ROLLER CLUTCH INNER WASHER |
€0.80 |
Out-of-Stock
|
|
RD20550 /
101P5
20STLSW60HG SPOOL ASSY |
€144.00 |
Out-of-Stock
|
|
RD20551 /
101N1
20STLSW60HG S/ RING COLLAR WATER PROOF |
€0.80 |
Out-of-Stock
|
|
RD20555 /
10RP0
20STLSW50HG BAIL ASSY |
€38.00 |
Out-of-Stock
|
|
RD20557 /
10RQL
20STLSW50HG MAIN SHAFT ASSY |
€22.50 |
Out-of-Stock
|
|
RD20558 /
10RTD
20STLSW50HG SIDE COVER ASSY |
€34.50 |
Out-of-Stock
|
|
RD20559 /
101HY
20STLSW50HG HANDLE SHANK ASSY |
€0.80 | ☹ This part is not produced anymore |
|
RD20560 /
10RTA
20STLSW50HG HANDLE SHAFT COVER ASSY |
€27.50 |
Out-of-Stock
|
|
RD20561 /
10RR7
20STLSW50HG ROLLER CLUTCH WATERPROOF SET |
€9.00 |
Out-of-Stock
|
|
RD20569 /
101F9
20STLSW60HG BODY ASSY |
€55.80 |
Out-of-Stock
|
|
RD20617 /
10E8M
TRS M2.6X4 NL RP |
€0.80 |
Out-of-Stock
|
|
RD20625 /
101NJ
20STLSW60HG SPOOL RING |
€22.50 |
Out-of-Stock
|
|
RD20626 /
101NA
20STLSW60HG SPOOL RING COLLAR |
€9.00 |
Out-of-Stock
|
|
RD20663 /
10RZ1
20STLSW50HG REAR PROTECTOR SCREW D |
€0.80 |
Out-of-Stock
|
|
RD20677 /
101P1
20STLSW60HG SPOOL SHELL |
€0.80 | ☹ This part is not produced anymore |
|
RD20744 /
100S6
20STLSW50HG MAIN SHAFT SPACER |
€0.80 |
Out-of-Stock
|
|
RD2110 /
103E9
SLIDER RETAINER SCREW |
€0.80 |
Out-of-Stock
|
|
RD21587 /
10S32
20STLSW50HG SPACER WASHER 0.9 |
€0.80 |
Out-of-Stock
|
|
RD3561 /
10MT4
DRAG WASHER SCREW |
€0.80 |
|
|
RD6013 /
1072N
MAIN SHAFT SPACER |
€0.80 |
Out-of-Stock
|
|
RD6077 /
1035W
DIAL CLICK SHOE |
€0.80 |
Out-of-Stock
|
|
RD6296 /
10JMD
CLICK SPRING |
€0.80 |
Out-of-Stock
|
|
RD7915 /
104W1
BALL BEARING(5X8X2)(0.27G)MADE IN JAPAN |
€6.00 |
|
|
RD7919 /
1077Q
CLICK SPRING |
€0.80 |
|
|
RD8002 /
10LZ2
NUT LOCK SCREW |
€0.80 |
Out-of-Stock
|
|
RD8059 /
10L9D
PROTECTOR SCREW |
€0.80 |
Out-of-Stock
|
|
RD8074 /
107F2
BEARING WATER PROOF |
€0.80 |
Out-of-Stock
|
|
RD8122 /
10MGD
DRAG CLICK HOLDER COVER SCREW |
€0.80 |
Out-of-Stock
|
|
RD8144 /
10ML2
BEARING RETAINER SCREW |
€0.80 |
Out-of-Stock
|
|
RD8286 /
108WC
O RING |
€0.80 |
Out-of-Stock
|
|
RD9847 /
10CYU
04STL25 PRTCTR SRW A |
€0.80 |
Out-of-Stock
|
|
RD9849 /
106ZG
04STL25 PRTCTR SRW B |
€0.80 |
Out-of-Stock
|
|
RD9903 /
108WA
04STL25 O RING SS9.5 |
€0.80 |
Last items in stock
|
|
RD9968 /
108W9
04STL10 O RING SS3.5 |
€0.80 |
Out-of-Stock
|
