Parts for Shimano STELLA STLSW8000HGC reel
PARTS-STLSW8000HGC
- New

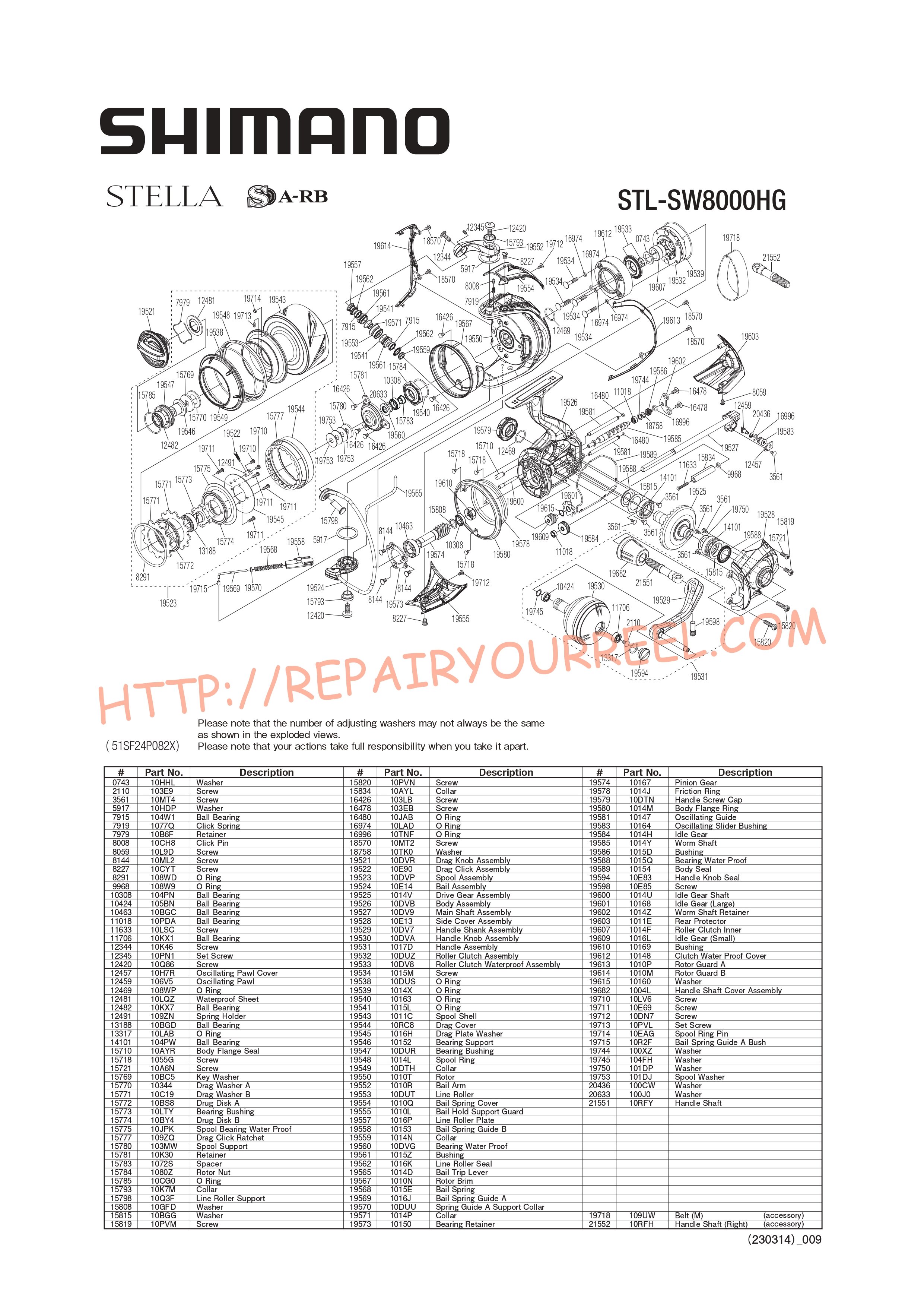

Find the part you need on the exploded view of the Shimano STELLA STLSW8000HGC reel, then order it directly from the list of available parts below.
Description
Identify the spare part(s) of the reel you need, then add them to the cart from the list of available spare parts located below the exploded view of the reel.
Product Details
Shimano
PARTS-STLSW8000HGC
Data sheet
- Type
- Spinning
- Series
- STELLA
- Size
- 8000
- Model
- STLSW8000HGC
Available parts for this reel
|
Old reference /
Reference
Name |
Price (Tax Excl.) | |
|---|---|---|
|
RD0743 /
10HHL
SL2OSCILLAITING SLIDERW 9X13X0.1 |
€0.80 |
Out-of-Stock
|
|
RD10308 /
104PN
BALL BEARINGMADE IN THAILAND |
€6.00 |
|
|
RD10424 /
105BN
BALL BEARING MADE IN THAILAND |
€6.00 |
Out-of-Stock
|
|
RD10463 /
10BGC
BALL BEARING MADE IN JAPAN |
€6.00 |
|
|
RD11018 /
10PDA
BALL BEARINGMADE IN THAILAND |
€6.00 |
|
|
RD11603 /
10HV3
WASHER 5.2X6.7X0.1 |
€0.80 |
Out-of-Stock
|
|
RD11633 /
10LSC
PAN P2X12 |
€0.80 |
Last items in stock
|
|
RD11706 /
10KX1
BALL BEARINGMADE IN THAILAND |
€6.00 |
Out-of-Stock
|
|
RD12344 /
10K46
08STLSW5HG L/R SCREW |
€0.80 |
|
|
RD12345 /
10PN1
SETSCREW M2X3 |
€0.80 |
Out-of-Stock
|
|
RD12420 /
10Q86
08STLSW20PG B/A SRW |
€0.80 |
Out-of-Stock
|
|
RD12457 /
10H7R
08STLSW8HG O/P CVR |
€0.80 |
Out-of-Stock
|
|
RD12459 /
106V5
08STLSW20PG OSC PAWL |
€0.80 |
|
|
RD12469 /
108WP
08SW5HG ORING SS11.5 |
€0.80 |
|
|
RD12481 /
10LQZ
08STLSW20PG SEAL PLT |
€4.00 |
|
|
RD12482 /
10KX7
BALL BEARINGMADE IN THAILAND |
€9.00 |
Out-of-Stock
|
|
RD12491 /
109ZN
08SW20PG D/C/S HLDR |
€0.80 |
Last items in stock
|
|
RD13188 /
10BGD
BALL BEARINGMADE IN THAILAND 9*17*5 SARB |
€6.00 |
Out-of-Stock
|
|
RD13317 /
10LAB
O RING NOK SS9 |
€0.80 |
Out-of-Stock
|
|
RD14101 /
104PW
BALL BEARINGMADE IN SINGAPORE 4.85G |
€4.00 |
|
|
RD15710 /
10AYR
13STLSW5HG B/F SEAL |
€0.80 |
|
|
RD15718 /
1055G
13STLSW5HG SCREW |
€0.80 |
|
|
RD15721 /
10A6N
13STLSW5HG S/C SRW B |
€0.80 |
Out-of-Stock
|
|
RD15769 /
10BC5
13STLSW8HG KEY WSR |
€0.80 |
Out-of-Stock
|
|
RD15770 /
10344
13STLSW8HG DRAG W A |
€0.80 |
|
|
RD15771 /
10C19
13STLSW8HG DRAG W B |
€15.00 |
Out-of-Stock
|
|
RD15772 /
10BS8
13STLSW8HG S/D DSK A |
€4.00 |
|
|
RD15773 /
10LTY
13STLSW8HG BRNG BUSH |
€15.00 |
|
|
RD15774 /
10BY4
13STLSW8HG S/D DSK B |
€4.00 |
|
|
RD15775 /
10JPK
13STLSW8HG M/S B/W/P |
€0.80 |
|
|
RD15777 /
109ZQ
13STLSW8HG D/C RTCHT |
€0.80 |
|
|
RD15779 /
10BXW
13STLSW8HG SPOOL W A |
€0.80 |
Out-of-Stock
|
|
RD15780 /
103MW
13STLSW8HG S/SPRT A |
€0.80 |
Out-of-Stock
|
|
RD15781 /
10K30
13STLSW8HG R/N PLATE |
€0.80 |
Out-of-Stock
|
|
RD15783 /
1072S
13STLSW8HG M/S SPCR |
€4.00 |
Last items in stock
|
|
RD15784 /
1080Z
13STLSW8HG ROTOR NUT |
€6.00 |
Out-of-Stock
|
|
RD15785 /
10CG0
DTC1000 ORING 19.5 |
€0.80 |
|
|
RD15793 /
10K7M
13STLSW8HG B/A/S CLR |
€0.80 |
Last items in stock
|
|
RD15798 /
10Q3F
13STLSW8HG L/R SPRT |
€6.00 |
|
|
RD15808 /
10GFD
13STLSW8HG P/G WSR |
€0.80 |
Out-of-Stock
|
|
RD15815 /
10BGG
13STLSW8HG S/C B W |
€0.80 |
|
|
RD15817 /
105U4
WASHER 10X15X0.1 |
€0.80 |
|
|
RD15819 /
10PVM
13STLSW8000HG SCREW |
€0.80 |
Out-of-Stock
|
|
RD15820 /
10PVN
13STLSW20000PG SCREW |
€0.80 |
Out-of-Stock
|
|
RD15834 /
10AYL
13STLSW8HG R/P CLR |
€0.80 |
Out-of-Stock
|
|
RD16426 /
103LB
TRS M2.6X4 SH RP |
€0.80 |
Out-of-Stock
|
|
RD16472 /
1059T
TPGT W/S SPACER 0.1T 3.05*5 |
€0.80 |
|
|
RD16478 /
103EB
TRS M2.6X5 RP |
€0.80 |
Out-of-Stock
|
|
RD16480 /
10JAB
14STL25 O RING SS015 |
€0.80 |
|
|
RD16974 /
10LAD
09CH100D7 O RING SS3 |
€0.80 |
Out-of-Stock
|
|
RD16996 /
10TNF
O RING SS4.5 |
€0.80 |
|
|
RD18570 /
10MT2
TRS M2X4 RP |
€0.80 |
Out-of-Stock
|
|
RD18758 /
10TK0
SUS 4.05X5.8X0.1 |
€0.80 |
Out-of-Stock
|
|
RD19521 /
10DVR
19STLSW80HG DRAG KNOB ASSY |
€36.00 |
Out-of-Stock
|
|
RD19522 /
10E90
19STLSW80HG DRAG CLICK ASSY |
€6.00 |
Out-of-Stock
|
|
RD19523 /
10DVP
19STLSW80HG SPOOL ASSY |
€163.80 |
Out-of-Stock
|
|
RD19524 /
10E14
19STLSW80HG BAIL ASSY |
€39.10 |
Out-of-Stock
|
|
RD19525 /
1014V
19STLSW80HG DRIVE GEAR ASSY |
€36.00 |
Out-of-Stock
|
|
RD19526 /
10DVB
19STLSW80HG BODY ASSY |
€64.80 |
Out-of-Stock
|
|
RD19527 /
10DV9
19STLSW80HG MAIN SHAFT ASSY |
€22.50 |
Out-of-Stock
|
|
RD19528 /
10E13
19STLSW80HG SIDE COVER ASSY |
€34.50 |
Out-of-Stock
|
|
RD19529 /
10DV7
19STLSW80HG HANDLE SHANK ASSY |
€36.80 |
Out-of-Stock
|
|
RD19530 /
10DVA
19STLSW80HG HANDLE KNOB ASSY |
€38.00 |
Out-of-Stock
|
|
RD19531 /
1017D
19STLSW80HG HANDLE ASSY |
€93.60 |
Out-of-Stock
|
|
RD19532 /
10DUZ
19STLSW80HG ROLLER CLUTCH ASSY |
€12.00 |
Out-of-Stock
|
|
RD19533 /
10DV8
19STLSW80HG ROLLER CLUTCH WATER/P SET |
€9.00 |
Out-of-Stock
|
|
RD19534 /
1015M
TRS M2.6X14.5 BH |
€0.80 |
Out-of-Stock
|
|
RD19538 /
10DUS
19STLSW80HG ORING53.6 |
€0.80 |
Out-of-Stock
|
|
RD19539 /
1014X
19STLSW80HG O RING 37 |
€0.80 |
Out-of-Stock
|
|
RD19540 /
10163
19STLSW80HG O RING SS175 |
€0.80 |
Out-of-Stock
|
|
RD19541 /
1015L
19STLSW80HG O RING 8.5 |
€0.80 |
Out-of-Stock
|
|
RD19543 /
1011C
19STLSW80HG SPOOL SHELL |
€55.80 |
Out-of-Stock
|
|
RD19544 /
10RC8
19STLSW80HG DRAG COVER |
€15.00 |
Out-of-Stock
|
|
RD19545 /
1016H
19STLSW80HG DRAG PLATE WASHER |
€0.80 |
Out-of-Stock
|
|
RD19546 /
10152
19STLSW80HG SPOOL BEARING SUPPORT |
€4.00 |
Out-of-Stock
|
|
RD19547 /
10DUR
19STLSW80HG THRUST BUSHING |
€4.00 |
Out-of-Stock
|
|
RD19548 /
1014L
19STLSW80HG SPOOL RING |
€22.50 |
Out-of-Stock
|
|
RD19549 /
10DTH
19STLSW80HG SPOOL RING COLLAR |
€12.00 |
Out-of-Stock
|
|
RD19550 /
1010T
19STLSW80HG ROTOR |
€43.20 |
Out-of-Stock
|
|
RD19552 /
1010R
19STLSW80HG BAIL ARM |
€30.00 |
Out-of-Stock
|
|
RD19553 /
10DUT
19STLSW80HG LINE ROLLER |
€15.00 |
Out-of-Stock
|
|
RD19554 /
1010Q
19STLSW80HG BAIL SPRING COVER |
€9.00 |
Out-of-Stock
|
|
RD19555 /
1010L
19STLSW80HG BAIL HOLD SUPPORT GUARD |
€9.00 |
Out-of-Stock
|
|
RD19557 /
1016P
19STLSW80HG LINE ROLLER PLATE |
€0.80 |
Out-of-Stock
|
|
RD19558 /
10153
19STLSW80HG BAIL SPRING GUIDE B |
€0.80 |
|
|
RD19559 /
1014N
19STLSW80HG LINE ROLLER SUPPORT COLLAR |
€0.80 |
Out-of-Stock
|
|
RD19560 /
10DVG
19STLSW80HG BEARING WATER PROOF |
€4.00 |
Out-of-Stock
|
|
RD19561 /
1015Z
19STLSW80HG LINE ROLLER BUSHING |
€0.80 |
Out-of-Stock
|
|
RD19562 /
1016K
19STLSW80HG LINE ROLLER SEAL |
€0.80 |
Out-of-Stock
|
|
RD19565 /
1014D
19STLSW80HG BAIL TRIP LEVER |
€0.80 |
Out-of-Stock
|
|
RD19567 /
1010N
19STLSW80HG ROTOR BRIM |
€4.00 |
Out-of-Stock
|
|
RD19568 /
1015E
19STLSW80HG BAIL SPRING |
€0.80 |
Out-of-Stock
|
|
RD19569 /
1016J
19STLSW80HG BAIL SPRING GUIDE |
€0.80 |
Out-of-Stock
|
|
RD19570 /
10DUU
19STLSW80HG SPRING GUIDE A SUPPORT COLLA |
€0.80 |
Out-of-Stock
|
|
RD19571 /
1014P
19STLSW80HG BEARING SPACER |
€0.80 |
Out-of-Stock
|
|
RD19573 /
10150
19STLSW80HG BEARING RETAINER |
€0.80 |
Out-of-Stock
|
|
RD19574 /
10167
19STLSW80HG PINION GEAR |
€17.50 |
Out-of-Stock
|
|
RD19578 /
1014J
19STLSW80HG FRICTION RING |
€0.80 |
Out-of-Stock
|
|
RD19579 /
10DTN
19STLSW80HG HANDLE SCREW CAP |
€15.00 |
Out-of-Stock
|
|
RD19580 /
1014M
19STLSW80HG BODY FLANGE RING |
€4.00 |
Out-of-Stock
|
|
RD19581 /
10147
19STLSW80HG OSCILLATING GUIDE |
€0.80 |
Out-of-Stock
|
|
RD19583 /
10164
19STLSW80HG OSCILLATING SLIDER BUSHING |
€0.80 |
Out-of-Stock
|
|
RD19584 /
1014H
19STLSW80HG IDLE GEAR |
€4.00 |
Out-of-Stock
|
|
RD19585 /
1014Y
19STLSW80HG WORM SHAFT |
€4.00 |
Out-of-Stock
|
|
RD19586 /
1015D
19STLSW80HG WORM BUSHING REAR |
€0.80 |
Out-of-Stock
|
|
RD19588 /
1015Q
19STLSW80HG BEARING WATER PROOF |
€0.80 |
Out-of-Stock
|
|
RD19589 /
10154
19STLSW80HG BODY SEAL |
€6.00 |
Out-of-Stock
|
|
RD19594 /
10E83
19STLSW80HG HANDLE KNOB SEAL |
€4.00 |
Out-of-Stock
|
|
RD19598 /
10E85
19STLSW80HG HANDLE SHAFT SCREW |
€0.80 |
Out-of-Stock
|
|
RD19600 /
1014U
19STLSW80HG IDLE GEAR B SHAFT |
€0.80 |
Out-of-Stock
|
|
RD19601 /
10168
19STLSW80HG IDLE GEAR B (LARGE) |
€6.00 |
Out-of-Stock
|
|
RD19602 /
1014Z
19STLSW80HG WORM SHAFT RETAINER |
€0.80 |
Out-of-Stock
|
|
RD19603 /
1011E
19STLSW80HG REAR PROTECTOR |
€12.00 |
Out-of-Stock
|
|
RD19607 /
1014F
19STLSW80HG ROLLER CLUTCH INNER |
€9.00 |
Out-of-Stock
|
|
RD19609 /
1016L
19STLSW80HG IDLE GEAR B (SMALL) |
€6.00 |
Out-of-Stock
|
|
RD19610 /
10169
19STLSW80HG BUSHING (FOR PINION GEAR) (R |
€0.80 |
Out-of-Stock
|
|
RD19612 /
10148
19STLSW80HG R/CLUTCH WATER PROOF COVER |
€0.80 |
Out-of-Stock
|
|
RD19613 /
1010P
19STLSW80HG ROTOR GUARD A |
€0.80 |
Out-of-Stock
|
|
RD19614 /
1010M
19STLSW80HG ROTOR GUARD B |
€0.80 |
Out-of-Stock
|
|
RD19615 /
10160
SPRING WASHER C5.25X6.5X0.05 |
€0.80 |
Out-of-Stock
|
|
RD19682 /
1004L
19STLSW80HG HANDLE SHAFT COVER ASSY |
€27.50 |
Out-of-Stock
|
|
RD19710 /
10LV6
PAN M2X3 RP |
€0.80 |
Out-of-Stock
|
|
RD19711 /
10E69
PAN M2X6.5 RP |
€0.80 |
Out-of-Stock
|
|
RD19712 /
10DN7
TRS M2.6X4 SH RP NL4 |
€0.80 |
Out-of-Stock
|
|
RD19713 /
10PVL
SETSCREW M2X4 HEXAHOLE |
€0.80 |
Out-of-Stock
|
|
RD19714 /
10EAG
17EXS4MXG SPOOL RING PIN |
€0.80 |
Out-of-Stock
|
|
RD19715 /
10R2F
16VQ2500S BAIL SPRING GUIDE A BUSH |
€0.80 |
Out-of-Stock
|
|
RD19716 /
109R3
TN-20 BR WASHER (A) |
€0.80 |
Out-of-Stock
|
|
RD19718 /
109UW
13STL-SW LINE BAND M |
€4.00 |
Out-of-Stock
|
|
RD19719 /
10CG1
DTC1000 O RING 19.5 |
€0.80 |
Out-of-Stock
|
|
RD19744 /
100XZ
04STL3 WORM SHAFT WASHER SET |
€4.00 |
Out-of-Stock
|
|
RD19745 /
104FH
HANDLE KNOB WASHER SET |
€0.80 |
Out-of-Stock
|
|
RD19750 /
101DP
ARGT7000 DRIVE GEAR WASHER SET |
€4.00 |
Out-of-Stock
|
|
RD19753 /
101DJ
13STLSW8HG SPOOL WASHER SET |
€6.00 |
Out-of-Stock
|
|
RD20436 /
100CW
TPGT WORM SHAFT PIN WASHER SET SPINNING |
€4.00 |
Out-of-Stock
|
|
RD20633 /
100J0
19STLSW80HG ROTOR BALL BEARING WASHER |
€0.80 |
Out-of-Stock
|
|
RD2110 /
103E9
SLIDER RETAINER SCREW |
€0.80 |
Out-of-Stock
|
|
RD21550 /
10JDC
SL1 WASHER 7X10X0.1 |
€0.80 |
Out-of-Stock
|
|
RD21551 /
10RFY
20STLSW20PG HANDLE SHAFT NEW |
€12.00 |
Out-of-Stock
|
|
RD21552 /
10RFH
20STLSW20PG HANDLE SHAFT RIGHT NEW |
€12.00 |
Out-of-Stock
|
|
RD3561 /
10MT4
DRAG WASHER SCREW |
€0.80 |
|
|
RD5917 /
10HDP
BAIL ARM WASHER |
€0.80 |
Out-of-Stock
|
|
RD7915 /
104W1
BALL BEARING(5X8X2)(0.27G)MADE IN JAPAN |
€6.00 |
|
|
RD7919 /
1077Q
CLICK SPRING |
€0.80 |
|
|
RD7979 /
10B6F
03SA4000FD DRAG WASHERS RETAINER |
€0.80 |
Out-of-Stock
|
|
RD8008 /
10CH8
CLICK PIN |
€0.80 |
Out-of-Stock
|
|
RD8059 /
10L9D
PROTECTOR SCREW |
€0.80 |
Out-of-Stock
|
|
RD8144 /
10ML2
BEARING RETAINER SCREW |
€0.80 |
Out-of-Stock
|
|
RD8227 /
10CYT
PROTECTOR SCREW (A) |
€0.80 |
Out-of-Stock
|
|
RD8291 /
108WD
O RING |
€0.80 |
Out-of-Stock
|
|
RD9856 /
10HZ1
04STL3B/H/S ADJUST W |
€0.80 |
Out-of-Stock
|
|
RD9968 /
108W9
04STL10 O RING SS3.5 |
€0.80 |
Out-of-Stock
|
