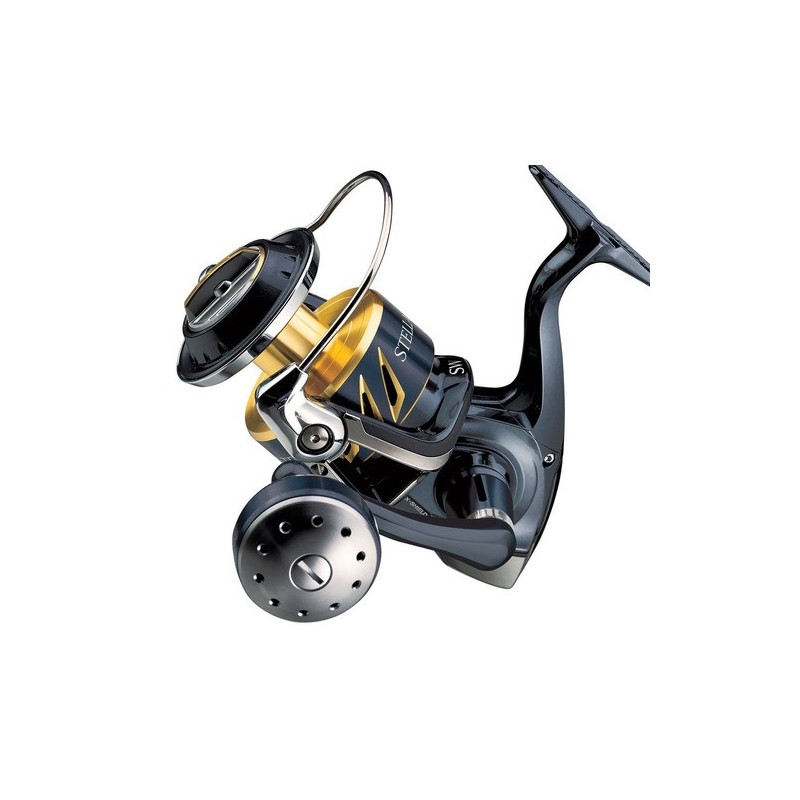

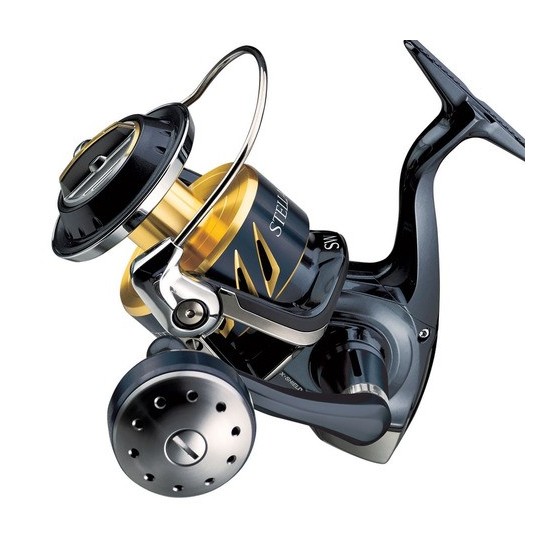

Parts for Shimano STELLA SW8000PGB (2013) reel
PARTS-STL8000SWBPG
Find the part you need on the exploded view of the Shimano STELLA SW8000PGB (2013) reel, then order it directly from the list of available parts below.
Description
Identify the spare part(s) of the reel you need, then add them to the cart from the list of available spare parts located below the exploded view of the reel.
Product Details
Shimano
PARTS-STL8000SWBPG
Data sheet
- Type
- Spinning
- Series
- STELLA SW
- Size
- 8000
- Model
- STL8000SWBPG
- Generation
- 2013
Available parts for this reel
| Old reference | Reference | Price (Tax Excl.) | |
|---|---|---|---|
| RD 2110, TT 0531, TGT 0729 |
103E9
SLIDER RETAINER SCREW |
€0.80 |
Out-of-Stock
|
| RD 2409 |
1059U
TPGTWORM SHAFTW0.2T |
€0.80 |
Out-of-Stock
|
| RD 3561, TT 0632 |
10MT4
DRAG WASHER SCREW |
€0.80 |
|
| RD 3571 |
10MPP
BRAKE SHAFT HOLDER SCREW |
€0.80 |
Out-of-Stock
|
| RD 3600, TT 0627 |
103L4
ALERT RATCHET SCREW |
€0.80 |
|
| RD 4675 |
10LV7
OSCILLATING PAWL COVER SCREW |
€0.80 |
Last items in stock
|
| RD 5917 |
10HDP
BAIL ARM WASHER |
€0.80 |
|
| RD 6188 |
10CJW
WORM SHAFT RING |
€0.80 |
|
| RD 6193, TLD 0049, TT 0594, TGT 0867 |
10MGG
LEVER CLICK COVER SCREW |
€0.80 |
|
| RD 7919 |
1077Q
CLICK SPRING |
€0.80 |
|
| RD 8002 |
10LZ2
NUT LOCK SCREW |
€0.80 |
|
| RD 8008 |
10CH8
CLICK PIN |
€0.80 |
|
| RD 8040 |
10MHG
GEAR COVER SCREW |
€0.80 |
|
| RD 8059 |
10L9D
PROTECTOR SCREW |
€0.80 |
|
| RD 8144 |
10ML2
BEARING RETAINER SCREW |
€0.80 |
|
| RD 8175 |
10LVP
SIDE COVER SCREW (C) |
€0.80 |
|
| RD 8219 |
10HD9
SPRING GUIDE (A) SUPPORT |
€0.80 |
|
| RD 8220 |
105FY
BAIL SPRING |
€0.80 |
|
| RD 8227 |
10CYT
PROTECTOR SCREW (A) |
€0.80 |
|
| RD 8235 |
10L5Y
ROLLER CLUTCH REINFORCE |
€0.80 |
|
| RD 8291 |
108WD
O RING |
€0.80 |
|
| RD 8322 |
10HHM
ADJUSTING WASHER |
€0.80 |
|
| RD 8323 |
10JA8
BEARING HOUSING |
☹ This part is not produced anymore | |
| RD 9968 |
108W9
04STL10 O RING SS3.5 |
€0.80 |
|
| RD 10299 |
10B6K
05BIO1000 D/W RTNR |
€0.80 |
|
| RD 10308 |
104PN
BALL BEARINGMADE IN THAILAND |
€6.00 |
|
| RD 10424 |
105BN
BALL BEARING MADE IN THAILAND |
€6.00 |
|
| RD 10463 |
10BGC
BALL BEARING MADE IN JAPAN |
€6.00 |
|
| RD 10735 |
105B6
01STLSW10HG ANTI-REVERSE PAWL |
€0.80 |
Out-of-Stock
|
| RD 11018 |
10PDA
BALL BEARINGMADE IN THAILAND |
€6.00 |
|
| RD 11111 |
104PV
BALL BEARINGMADE IN JAPAN |
€9.00 |
|
| RD 11424 |
104JY
BALL BEARING MADE IN THAILAND |
€6.00 |
|
| RD 11603 |
10HV3
WASHER 5.2X6.7X0.1 |
€0.80 |
Out-of-Stock
|
| RD 11633 |
10LSC
PAN P2X12 |
€0.80 |
Last items in stock
|
| RD 11706, TGT 1641 |
10KX1
BALL BEARINGMADE IN THAILAND |
€6.00 |
|
| RD 12344 |
10K46
08STLSW5HG L/R SCREW |
€0.80 |
|
| RD 12414 |
10GAG
08STLSW20PG BB SPCR |
€0.80 |
|
| RD 12418 |
107LE
08SW20PG L/R/S RTNR |
€0.80 |
|
| RD 12419 |
107LF
08SW20PG L/R/S SPRT |
€0.80 |
|
| RD 12420 |
10Q86
08STLSW20PG B/A SRW |
€0.80 |
Out-of-Stock
|
| RD 12430 |
10QRF
08STLSW20PG R/C ASSY |
€17.50 |
Out-of-Stock
|
| RD 12431 |
10BAD
08STLSW8HG P/G CLR |
☹ This part is not produced anymore | |
| RD 12432 |
107VL
08STLSW8HG A/R RCT |
€0.80 |
Out-of-Stock
|
| RD 12435 |
104FX
08STLSW8000HG F/RING |
€0.80 |
|
| RD 12437 |
10J3R
08STLSW8HG A A/R PL |
€0.80 |
Out-of-Stock
|
| RD 12438 |
102VH
08STLSW20PG ARP CVR |
€0.80 |
|
| RD 12439 |
10J3U
08STLSW20PG AARP CLR |
€0.80 |
|
| RD 12440 |
103HM
LINE ROLLER SCREW |
€0.80 |
|
| RD 12443 |
10804
08STLSW8HG ARP SPR |
☹ This part is not produced anymore | |
| RD 12446 |
10J3K
08STLSW8HG F/R SPCR |
€0.80 |
Out-of-Stock
|
| RD 12457 |
10H7R
08STLSW8HG O/P CVR |
€0.80 |
|
| RD 12459 |
106V5
08STLSW20PG OSC PAWL |
€0.80 |
|
| RD 12469 |
108WP
08SW5HG ORING SS11.5 |
€0.80 |
|
| RD 12481 |
10LQZ
08STLSW20PG SEAL PLT |
€4.00 |
|
| RD 12482 |
10KX7
BALL BEARINGMADE IN THAILAND |
€9.00 |
|
| RD 12483 |
10LWS
08STLSW20PG TRST BSH |
€4.00 |
|
| RD 12487 |
10BEB
08STLSW20PG EARED W |
€0.80 |
|
| RD 12491 |
109ZN
08SW20PG D/C/S HLDR |
€0.80 |
|
| RD 12492 |
10JMG
08STLSW20PG D/C SPR |
€0.80 |
|
| RD 12493 |
10382
08STLSW20PG D/CLICK |
€0.80 |
|
| RD 12519 |
10HHP
SL2WASHER9X13X0.5 |
€0.80 |
|
| RD 12534 |
10JV4
08STLSW20PG O/S BUSH |
€0.80 |
|
| RD 13188 |
10BGD
BALL BEARINGMADE IN THAILAND 9*17*5 SARB |
€6.00 |
|
| RD 13317 |
10LAB
O RING NOK SS9 |
€0.80 |
Out-of-Stock
|
| RD 14101, TGT 1482 |
104PW
BALL BEARINGMADE IN SINGAPORE 4.85G |
€4.00 |
|
| RD 15710 |
10AYR
13STLSW5HG B/F SEAL |
€0.80 |
|
| RD 15721 |
10A6N
13STLSW5HG S/C SRW B |
€0.80 |
|
| RD 15727 |
10B2B
11FM1000M H/K SEAL |
€4.00 |
|
| RD 15764 |
10HQC
13STLSW8HG SPOOLASY |
€162.00 |
Last items in stock
|
| RD 15767 |
102E4
13STLSW8HG D/K ASSY |
☹ This part is not produced anymore | |
| RD 15768 |
10LWK
13STLSW8HG BRNG SPRT |
€0.80 |
|
| RD 15769 |
10BC5
13STLSW8HG KEY WSR |
€0.80 |
|
| RD 15770 |
10344
13STLSW8HG DRAG W A |
€0.80 |
|
| RD 15771 |
10C19
13STLSW8HG DRAG W B |
€15.00 |
Out-of-Stock
|
| RD 15772 |
10BS8
13STLSW8HG S/D DSK A |
€4.00 |
|
| RD 15773 |
10LTY
13STLSW8HG BRNG BUSH |
€15.00 |
|
| RD 15774 |
10BY4
13STLSW8HG S/D DSK B |
€4.00 |
|
| RD 15775 |
10JPK
13STLSW8HG M/S B/W/P |
€0.80 |
|
| RD 15776 |
109M3
13STLSW8HG DRG PLT W |
€4.00 |
|
| RD 15777 |
109ZQ
13STLSW8HG D/C RTCHT |
€0.80 |
|
| RD 15778 |
10C1M
13STLSW8HG DRAG CVR |
☹ This part is not produced anymore | |
| RD 15779 |
10BXW
13STLSW8HG SPOOL W A |
€0.80 |
|
| RD 15780 |
103MW
13STLSW8HG S/SPRT A |
€0.80 |
|
| RD 15781 |
10K30
13STLSW8HG R/N PLATE |
€0.80 |
Out-of-Stock
|
| RD 15782 |
107F6
13STLSW8HG RTR B/W/P |
€0.80 |
Out-of-Stock
|
| RD 15783 |
1072S
13STLSW8HG M/S SPCR |
€4.00 |
|
| RD 15784 |
1080Z
13STLSW8HG ROTOR NUT |
€6.00 |
Out-of-Stock
|
| RD 15785 |
10CG0
DTC1000 ORING 19.5 |
€0.80 |
|
| RD 15786 |
107F1
13STLSW8HG L/R/S CLR |
€0.80 |
|
| RD 15787 |
107RM
13STLSW8HG L/R BUSH |
€0.80 |
|
| RD 15788 |
10KUU
13STLSW8HG LINE RLR |
€15.00 |
|
| RD 15789 |
1079Z
13STLSW8HG L/R PLATE |
€4.00 |
|
| RD 15790 |
105YX
13STLSW8HG B/S GD A |
€0.80 |
|
| RD 15791 |
106KH
13STLSW8HG B/T LEVER |
☹ This part is not produced anymore | |
| RD 15792 |
10KHA
13STLSW8HG BAIL ARM |
☹ This part is not produced anymore | |
| RD 15793 |
10K7M
13STLSW8HG B/A/S CLR |
€0.80 |
|
| RD 15794 |
1087V
13STLSW8HG B/S COVER |
€9.00 |
Last items in stock
|
| RD 15795 |
1077M
13STLSW8HG B/S SEAT |
€0.80 |
|
| RD 15796 |
10PY3
13STLSW8HG ROTOR |
€46.80 |
Last items in stock
|
| RD 15797 |
10MN8
13STLSW8HG B/H/S GRD |
€6.00 |
Last items in stock
|
| RD 15798 |
10Q3F
13STLSW8HG L/R SPRT |
€6.00 |
|
| RD 15799 |
106ZA
13STLSW8HG BAIL ASSY |
☹ This part is not produced anymore | |
| RD 15800 |
10744
13STLSW8HG R/GRD A |
€0.80 |
|
| RD 15801 |
107AF
13STLSW8HG R/GRD B |
€0.80 |
|
| RD 15802 |
10HFY
13STLSW8HG R/C COVER |
€12.00 |
Last items in stock
|
| RD 15803 |
10MLQ
06BBXDS4000D O RING |
€0.80 |
|
| RD 15804 |
10QRN
13STLSW8HG RC WP SET |
€9.00 |
Last items in stock
|
| RD 15805 |
10HG0
13STLSW8HG R/C SEAL |
€0.80 |
|
| RD 15806 |
10592
13STLSW8HG BRNG RTNR |
€0.80 |
Last items in stock
|
| RD 15808 |
10GFD
13STLSW8HG P/G WSR |
€0.80 |
Out-of-Stock
|
| RD 15809 |
10CL7
13STLSW8HG I/G B SFT |
€0.80 |
Out-of-Stock
|
| RD 15810 |
106RF
13STLSW8HG I/G B S |
€6.00 |
Last items in stock
|
| RD 15812 |
10HBL
13STLSW8HG IDLE GEAR |
€6.00 |
Out-of-Stock
|
| RD 15813 |
10CD8
13STLSW8HG BODY SEAL |
☹ This part is not produced anymore | |
| RD 15814 |
10CD2
13STLSW8HG BRNG W/P |
€0.80 |
|
| RD 15815 |
10BGG
13STLSW8HG S/C B W |
€0.80 |
|
| RD 15817 |
105U4
WASHER 10X15X0.1 |
€0.80 |
|
| RD 15818 |
1049G
13STLSW8HG S/C ASSY |
☹ This part is not produced anymore | |
| RD 15819 |
10PVM
13STLSW8000HG SCREW |
€0.80 |
|
| RD 15820 |
10PVN
13STLSW20000PG SCREW |
€0.80 |
|
| RD 15822 |
10F8C
13STLSW8HG HNDL SHFT |
€12.00 |
Last items in stock
|
| RD 15824 |
10A9U
13STLSW8HG H/S SCREW |
€0.80 |
Out-of-Stock
|
| RD 15825 |
10446
13STLSW8HG H/K ASSY |
☹ This part is not produced anymore | |
| RD 15827 |
10NF2
13STLSW8HG M/S ASSY |
€20.00 |
Out-of-Stock
|
| RD 15828 |
10NKP
13STLSW8HG RR PRTCTR |
€9.00 |
Out-of-Stock
|
| RD 15829 |
107HF
13STLSW8HG RR SHIELD |
€0.80 |
Last items in stock
|
| RD 15830 |
10AT7
13STLSW8HG W/S RTNR |
€0.80 |
Last items in stock
|
| RD 15831 |
10H46
13STLSW8HG W/S/R W |
€0.80 |
Out-of-Stock
|
| RD 15832 |
10820
13STLSW8HG W/SHAFT |
☹ This part is not produced anymore | |
| RD 15833 |
1035D
13STLSW8HG OSC GUIDE |
€0.80 |
|
| RD 15834 |
10AYL
13STLSW8HG R/P CLR |
€0.80 |
|
| RD 15837, RD 19718 |
109UW
13STL-SW LINE BAND M |
€4.00 |
Out-of-Stock
|
| RD 15838 |
10FHU
13STLSW8HG H/SHAFT R |
☹ This part is not produced anymore | |
| RD 15839 |
10BYQ
13STLSW8PG PINION G |
€34.50 |
Out-of-Stock
|
| RD 15840 |
10CNM
13STLSW8PG I/G B L |
€6.00 |
Out-of-Stock
|
| RD 15841 |
10A9F
13STLSW8PG D/G ASSY |
€34.50 |
Last items in stock
|
| RD 15842 |
10NHF
13STLSW8PG H/S/C ASY |
€35.00 |
Out-of-Stock
|
| RD 15843 |
106SF
13STLSW8PG H/S ASSY |
€34.50 |
Out-of-Stock
|
| RD 15844 |
10HLG
13STLSW8PG HNDL ASSY |
€88.20 |
Out-of-Stock
|
| RD 15845 |
1034U
13STLSW8PG BODY ASSY |
€66.60 |
Last items in stock
|
| RD 15846 |
10N44
13STLSW8PG H/S CAP |
€12.00 |
Last items in stock
|
| RD 16003 |
10LQ1
OIL SSRO-01 CNTNR (4.5G) |
€0.80 |
Out-of-Stock
|
| RD 16173 |
10GHG
13STLSW8HG R/C W.1 |
€0.80 |
Out-of-Stock
|
| RD 16211 |
RD16211
|
☹ This part is not produced anymore | |
| RD 17136 |
104K5
BB 5X8X2.5 ARBNT MADE IN THAILAND |
€6.00 |
|
