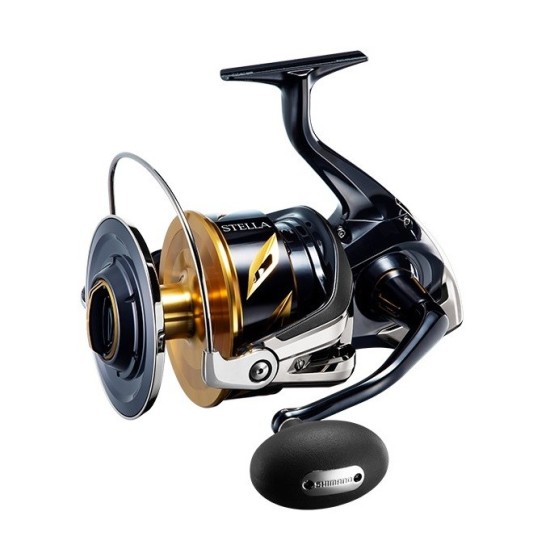

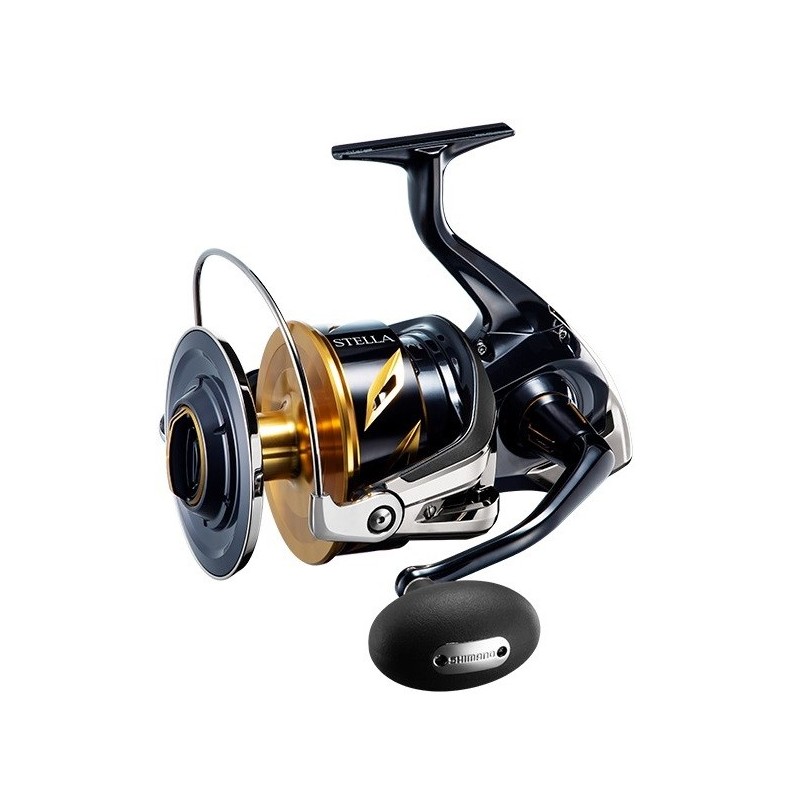

Parts for Shimano STELLA 30000SWC (2020) reel
PARTS-STLSW30000C
Find the part you need on the exploded view of the Shimano STELLA 30000SWC (2020) reel, then order it directly from the list of available parts below.
Description
Identify the spare part(s) of the reel you need, then add them to the cart from the list of available spare parts located below the exploded view of the reel.
Product Details
Shimano
PARTS-STLSW30000C
Data sheet
- Type
- Spinning
- Series
- STELLA SW
- Size
- 30000
- Model
- STLSW30000C
- Generation
- 2020
Available parts for this reel
| Old reference | Reference | Price (Tax Excl.) | |
|---|---|---|---|
| RD 2110, TT 0531, TGT 0729 |
103E9
SLIDER RETAINER SCREW |
€0.80 |
Out-of-Stock
|
| RD 2296 |
10MLB
SLIDER RETAINER SCREW |
€0.80 |
|
| RD 3561, TT 0632 |
10MT4
DRAG WASHER SCREW |
€0.80 |
|
| RD 7915 |
104W1
BALL BEARING(5X8X2)(0.27G)MADE IN JAPAN |
€6.00 |
|
| RD 7919 |
1077Q
CLICK SPRING |
€0.80 |
|
| RD 8008 |
10CH8
CLICK PIN |
€0.80 |
|
| RD 8059 |
10L9D
PROTECTOR SCREW |
€0.80 |
|
| RD 8144 |
10ML2
BEARING RETAINER SCREW |
€0.80 |
|
| RD 8174 |
103NM
HANDLE KNOB SCREW |
€0.80 |
Out-of-Stock
|
| RD 8227 |
10CYT
PROTECTOR SCREW (A) |
€0.80 |
|
| RD 8291 |
108WD
O RING |
€0.80 |
|
| RD 8292 |
10LWM
BEARING RETANER |
€0.80 |
|
| RD 8325 |
104AZ
FRICTION RING |
€4.00 |
Out-of-Stock
|
| RD 9847 |
10CYU
04STL25 PRTCTR SRW A |
€0.80 |
Out-of-Stock
|
| RD 9968 |
108W9
04STL10 O RING SS3.5 |
€0.80 |
|
| RD 10299 |
10B6K
05BIO1000 D/W RTNR |
€0.80 |
|
| RD 10424 |
105BN
BALL BEARING MADE IN THAILAND |
€6.00 |
|
| RD 10473 |
104PS
BALL BEARINGMADE IN JAPAN |
€6.00 |
Last items in stock
|
| RD 11018 |
10PDA
BALL BEARINGMADE IN THAILAND |
€6.00 |
|
| RD 11111 |
104PV
BALL BEARINGMADE IN JAPAN |
€9.00 |
|
| RD 11633 |
10LSC
PAN P2X12 |
€0.80 |
Last items in stock
|
| RD 11694 |
10583
BALL BEARINGMADE IN THAILAND |
€6.00 |
|
| RD 11706, TGT 1641 |
10KX1
BALL BEARINGMADE IN THAILAND |
€6.00 |
|
| RD 11960 |
103H6
TRS M3X5 RP |
€0.80 |
Out-of-Stock
|
| RD 12344 |
10K46
08STLSW5HG L/R SCREW |
€0.80 |
|
| RD 12372, TGT 1640 |
10B97
08STLSW20PG H/K SEAL |
€0.80 |
|
| RD 12418 |
107LE
08SW20PG L/R/S RTNR |
€0.80 |
|
| RD 12419 |
107LF
08SW20PG L/R/S SPRT |
€0.80 |
|
| RD 12420 |
10Q86
08STLSW20PG B/A SRW |
€0.80 |
Out-of-Stock
|
| RD 12438 |
102VH
08STLSW20PG ARP CVR |
€0.80 |
|
| RD 12439 |
10J3U
08STLSW20PG AARP CLR |
€0.80 |
|
| RD 12440 |
103HM
LINE ROLLER SCREW |
€0.80 |
|
| RD 12459 |
106V5
08STLSW20PG OSC PAWL |
€0.80 |
|
| RD 12469 |
108WP
08SW5HG ORING SS11.5 |
€0.80 |
|
| RD 12481 |
10LQZ
08STLSW20PG SEAL PLT |
€4.00 |
|
| RD 12482 |
10KX7
BALL BEARINGMADE IN THAILAND |
€9.00 |
|
| RD 12483 |
10LWS
08STLSW20PG TRST BSH |
€4.00 |
|
| RD 12485 |
10BA1
08STLSW20PG KEY W |
€0.80 |
|
| RD 12487 |
10BEB
08STLSW20PG EARED W |
€0.80 |
|
| RD 12488 |
10C18
08STLSW20PG DRAG W B |
€22.50 |
Out-of-Stock
|
| RD 12489 |
10BS6
08SW20PG S/D DISK A |
€0.80 |
|
| RD 12494 |
108WQ
08SW20PG ORING SS065 |
€0.80 |
|
| RD 12504 |
10J3W
08STLSW20PG S/SPRT D |
€0.80 |
|
| RD 12508 |
10J7H
01STLSW10H B/A W 0.5 |
€0.80 |
|
| RD 12533 |
10H7S
08STLSW20PG O/P CVR |
€0.80 |
|
| RD 13188 |
10BGD
BALL BEARINGMADE IN THAILAND 9*17*5 SARB |
€6.00 |
|
| RD 14101, TGT 1482 |
104PW
BALL BEARINGMADE IN SINGAPORE 4.85G |
€4.00 |
|
| RD 15710 |
10AYR
13STLSW5HG B/F SEAL |
€0.80 |
|
| RD 15718 |
1055G
13STLSW5HG SCREW |
€0.80 |
|
| RD 15721 |
10A6N
13STLSW5HG S/C SRW B |
€0.80 |
|
| RD 15722 |
10A6P
13STLSW5HG S/C SRW A |
€0.80 |
|
| RD 15770 |
10344
13STLSW8HG DRAG W A |
€0.80 |
|
| RD 15785 |
10CG0
DTC1000 ORING 19.5 |
€0.80 |
|
| RD 15793 |
10K7M
13STLSW8HG B/A/S CLR |
€0.80 |
|
| RD 15798 |
10Q3F
13STLSW8HG L/R SPRT |
€6.00 |
|
| RD 15815 |
10BGG
13STLSW8HG S/C B W |
€0.80 |
|
| RD 15820 |
10PVN
13STLSW20000PG SCREW |
€0.80 |
|
| RD 15848 |
108T1
13STLSW10PG H/K ID P |
€0.80 |
|
| RD 15932 |
10AYM
13STLSW20PG R/P CLR |
€0.80 |
|
| RD 16086 |
106KK
13STLSW30 B/T LEVER |
€0.80 |
|
| RD 16097 |
109UY
13STL-SW LINE BANDLL |
€4.00 |
Out-of-Stock
|
| RD 16259 |
107ZQ
14SRG20SW AR RATCHET |
€0.80 |
|
| RD 16426 |
103LB
TRS M2.6X4 SH RP |
€0.80 |
|
| RD 16974 |
10LAD
09CH100D7 O RING SS3 |
€0.80 |
|
| RD 16975 |
10MHD
15TPSW8000HG ROLLER CLUTCH WATER PROOF C |
€0.80 |
|
| RD 16980 |
10MLR
06BBXON6000D O RING |
€0.80 |
|
| RD 16996 |
10TNF
O RING SS4.5 |
€0.80 |
|
| RD 18570 |
10MT2
TRS M2X4 RP |
€0.80 |
Out-of-Stock
|
| RD 18758 |
10TK0
SUS 4.05X5.8X0.1 |
€0.80 |
Out-of-Stock
|
| RD 19522 |
10E90
19STLSW80HG DRAG CLICK ASSY |
€6.00 |
Out-of-Stock
|
| RD 19559 |
1014N
19STLSW80HG LINE ROLLER SUPPORT COLLAR |
€0.80 |
Out-of-Stock
|
| RD 19562 |
1016K
19STLSW80HG LINE ROLLER SEAL |
€0.80 |
|
| RD 19569 |
1016J
19STLSW80HG BAIL SPRING GUIDE |
€0.80 |
Out-of-Stock
|
| RD 19570 |
10DUU
19STLSW80HG SPRING GUIDE A SUPPORT COLLA |
€0.80 |
Out-of-Stock
|
| RD 19571 |
1014P
19STLSW80HG BEARING SPACER |
€0.80 |
Out-of-Stock
|
| RD 19583 |
10164
19STLSW80HG OSCILLATING SLIDER BUSHING |
€0.80 |
Last items in stock
|
| RD 19586 |
1015D
19STLSW80HG WORM BUSHING REAR |
€0.80 |
|
| RD 19588 |
1015Q
19STLSW80HG BEARING WATER PROOF |
€0.80 |
|
| RD 19598 |
10E85
19STLSW80HG HANDLE SHAFT SCREW |
€0.80 |
Out-of-Stock
|
| RD 19615 |
10160
SPRING WASHER C5.25X6.5X0.05 |
€0.80 |
Out-of-Stock
|
| RD 19638 |
1015S
19STLSW10PG O RING 9.5 |
€0.80 |
|
| RD 19643 |
1017R
19STLSW10PG DRAG CLICK SPRING HOLDER |
€0.80 |
Out-of-Stock
|
| RD 19652 |
1015F
19STLSW10PG LINE ROLLER |
€17.50 |
Out-of-Stock
|
| RD 19656 |
10161
19STLSW10PG LINE ROLLER PLATE |
€0.80 |
|
| RD 19657 |
1015A
19STLSW10PG LINE ROLLER BUSHING |
€0.80 |
Out-of-Stock
|
| RD 19661 |
10RDQ
19STLSW10PG HANDLE KNOB |
€12.00 |
Last items in stock
|
| RD 19715 |
10R2F
16VQ2500S BAIL SPRING GUIDE A BUSH |
€0.80 |
|
| RD 19744 |
100XZ
04STL3 WORM SHAFT WASHER SET |
€4.00 |
|
| RD 19745 |
104FH
HANDLE KNOB WASHER SET |
€0.80 |
|
| RD 19750 |
101DP
ARGT7000 DRIVE GEAR WASHER SET |
€4.00 |
|
| RD 19752 |
101DM
08STLSW20PG SPOOL WASHER SET |
€6.00 |
Out-of-Stock
|
| RD 20436 |
100CW
TPGT WORM SHAFT PIN WASHER SET SPINNING |
€4.00 |
Out-of-Stock
|
| RD 20798 |
10SFB
20STLSW18HG HANDLE SCREW CAP |
€15.00 |
Last items in stock
|
| RD 20802 |
10SRT
20STLSW20PG DRAG KNOB ASSY |
€36.00 |
Last items in stock
|
| RD 20804 |
1012Z
20STLSW20PG DRAG COVER ASSY |
€17.50 |
Last items in stock
|
| RD 20806 |
10SQP
20STLSW20PG DRIVE GEAR ASSY |
€46.80 |
Out-of-Stock
|
| RD 20808 |
1012V
20STLSW20PG MAIN SHAFT ASSY |
€39.10 |
Last items in stock
|
| RD 20809 |
1012W
20STLSW20PG SIDE COVER ASSY |
€36.00 |
Last items in stock
|
| RD 20810 |
10DTD
20STLSW20PG HANDLE SHANK ASSY |
☹ This part is not produced anymore | |
| RD 20813 |
10SRU
20STLSW20PG ROLLER CLUTCH ASSY |
€12.00 |
|
| RD 20814 |
1012Y
20STLSW20PG ROLLER CLUTCH WATER/P SET |
€9.00 |
Last items in stock
|
| RD 20817 |
10SFD
20STLSW20PG SPOOL DRAG DISK B |
€4.00 |
|
| RD 20820 |
10SET
20STLSW20PG SPOOL WASHER C |
€6.00 |
|
| RD 20821 |
10SQZ
20STLSW20PG SPOOL BEARING BUSHING |
€9.00 |
|
| RD 20822 |
1011U
20STLSW20PG SPOOL BEARING SUPPORT |
€4.00 |
Out-of-Stock
|
| RD 20823 |
10SR1
20STLSW20PG HEAT SINK |
€9.00 |
Last items in stock
|
| RD 20828 |
1012L
20STLSW20PG BAIL ARM |
€35.00 |
Last items in stock
|
| RD 20831 |
10SEP
20STLSW20PG ROTOR NUT |
€20.00 |
Out-of-Stock
|
| RD 20832 |
10SEN
20STLSW20PG BAIL SPRING GUIDE B |
€0.80 |
|
| RD 20833 |
10SFJ
20STLSW20PG BEARING WATER PROOF |
€0.80 |
|
| RD 20835 |
10SR4
20STLSW20PG MAIN SHAFT SPACER |
€4.00 |
|
| RD 20836 |
10RBZ
20STLSW20PG NUT LOCK PLATE |
€0.80 |
Out-of-Stock
|
| RD 20841 |
10SEV
20STLSW20PG BAIL SPRING |
€0.80 |
|
| RD 20843 |
10SFC
20STLSW20PG BEARING RETAINER |
€0.80 |
|
| RD 20844 |
10SQK
20STLSW20PG PINION GEAR |
€22.50 |
Out-of-Stock
|
| RD 20848 |
10SQJ
20STLSW20PG SPOOL SUPPORT B |
€0.80 |
|
| RD 20849 |
10SQW
20STLSW20PG ASSIST ANTI-REVERSE PAWL |
€0.80 |
|
| RD 20850 |
10SR8
20STLSW20PG BEARING HOUSING |
€4.00 |
Last items in stock
|
| RD 20852 |
1012P
20STLSW20PG BODY FLANGE RING |
€4.00 |
Last items in stock
|
| RD 20853 |
10SQL
20STLSW20PG OSCILLATING GUIDE |
€0.80 |
|
| RD 20855 |
10SEQ
20STLSW20PG IDLE GEAR |
€6.00 |
Last items in stock
|
| RD 20856 |
10SR3
20STLSW20PG WORM SHAFT |
€4.00 |
Out-of-Stock
|
| RD 20858 |
10SR7
20STLSW20PG BODY SEAL |
€0.80 |
|
| RD 20863 |
10SQN
20STLSW20PG IDLE GEAR B SHAFT |
€0.80 |
|
| RD 20864 |
10SRB
20STLSW20PG IDLE GEAR B (LARGE) |
€6.00 |
Last items in stock
|
| RD 20865 |
10SRD
20STLSW20PG PINION GEAR COLLAR |
€0.80 |
|
| RD 20866 |
10SF9
20STLSW20PG WORM SHAFT RETAINER |
€0.80 |
|
| RD 20867 |
1012J
20STLSW20PG REAR PROTECTOR |
€15.00 |
Last items in stock
|
| RD 20870 |
10SF8
20STLSW20PG IDLE GEAR B (SMALL) |
€6.00 |
Last items in stock
|
| RD 20871 |
10SF4
20STLSW20PG BUSHING (PINION GEAR) (REAR) |
€0.80 |
|
| RD 20876 |
10SEY
20STLSW20PG ROLLER CLUTCH INNERWASHER1.2 |
€0.80 |
|
| RD 20878 |
1012U
20STLSW30 BAIL ASSY |
€37.80 |
Last items in stock
|
| RD 20879 |
1012S
20STLSW30 BODY ASSY |
€68.40 |
Last items in stock
|
| RD 20880 |
10DTA
20STLSW30 HANDLE SHAFT COVER ASSY |
€35.00 |
Out-of-Stock
|
| RD 20885 |
10SRA
20STLSW30 ROTOR |
€50.40 |
Last items in stock
|
| RD 20887 |
10SQS
20STLSW30 BAIL SPRING COVER |
€12.00 |
Last items in stock
|
| RD 20888 |
10SQH
20STLSW30 BAIL HOLD SUPPORT GUARD |
€12.00 |
Last items in stock
|
| RD 20890 |
10SQF
20STLSW30 ROTOR BRIM |
€6.00 |
Last items in stock
|
| RD 20896 |
10SFF
20STLSW30 ROTOR GUARD A |
€0.80 |
|
| RD 20897 |
10SF5
20STLSW30 ROTOR GUARD B |
€0.80 |
|
| RD 20951 |
10SC7
PAN M2X3 RP |
€0.80 |
|
| RD 20952 |
10RP7
TRS M2.6X16 BH NL |
€0.80 |
|
| RD 20953 |
10SCS
TRS M3X6 SH RP |
€0.80 |
Out-of-Stock
|
| RD 20954 |
1027V
18BTMR O RING 12 |
€0.80 |
|
| RD 20960 |
100SL
20STLSW20PG ANTI-REVERSE PAWL SPRING |
€0.80 |
Out-of-Stock
|
| RD 20966 |
10HU1
WASHER 8.2X11.5X0.35 |
€0.80 |
Out-of-Stock
|
| RD 20967, TGT 1979 |
10GD6
13TAC20BFC D/G WSR |
€0.80 |
|
| RD 20975 |
10B0V
08BCXTR34LA D/P SEAL |
€0.80 |
|
| RD 20977 |
10TGU
20STLSW30 SPOOL ASSY |
€221.40 |
Last items in stock
|
| RD 20978 |
100XV
20STLSW30 HANDLE ASSY |
€84.60 |
Last items in stock
|
| RD 21397 |
10U05
20STLSW20PG ROLLER CLUTCH INNER SET |
€0.80 |
Out-of-Stock
|
| RD 21475 |
10T1K
20STLSW20PG BW.05 |
€0.80 |
Out-of-Stock
|
| RD 21659 |
10RFJ
20STLSW30 HANDLE SHAFT |
€15.00 |
Last items in stock
|
| RD 21660 |
10RFX
20STLSW30 HANDLE SHAFT |
€15.00 |
Last items in stock
|
| RD 22805 |
1461Z
EARED WASHER |
€0.80 |
Out-of-Stock
|
