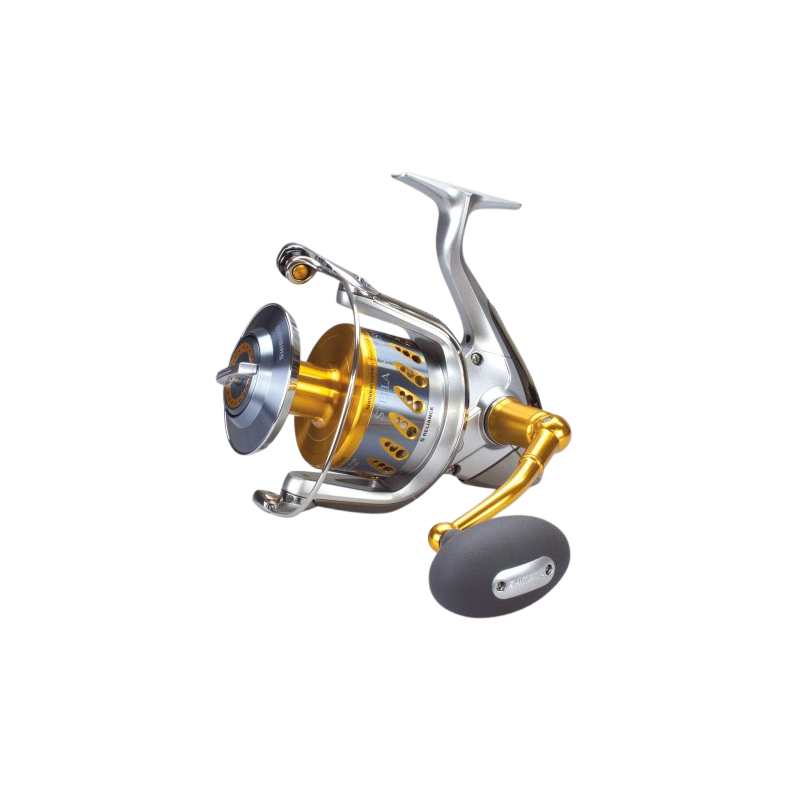

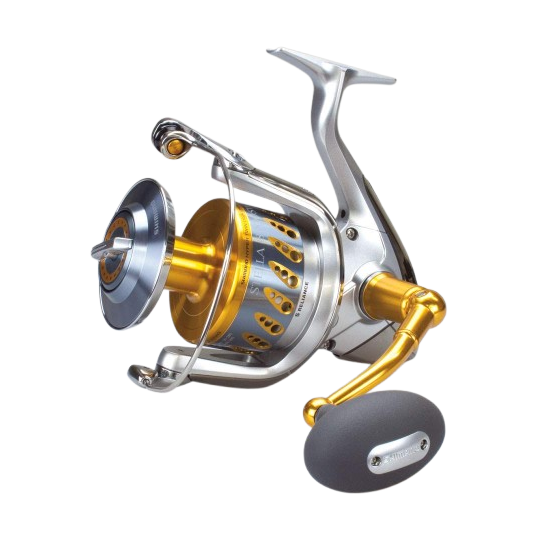

Parts for Shimano STELLA 20000SW (2009) reel
PARTS-STL20000SW

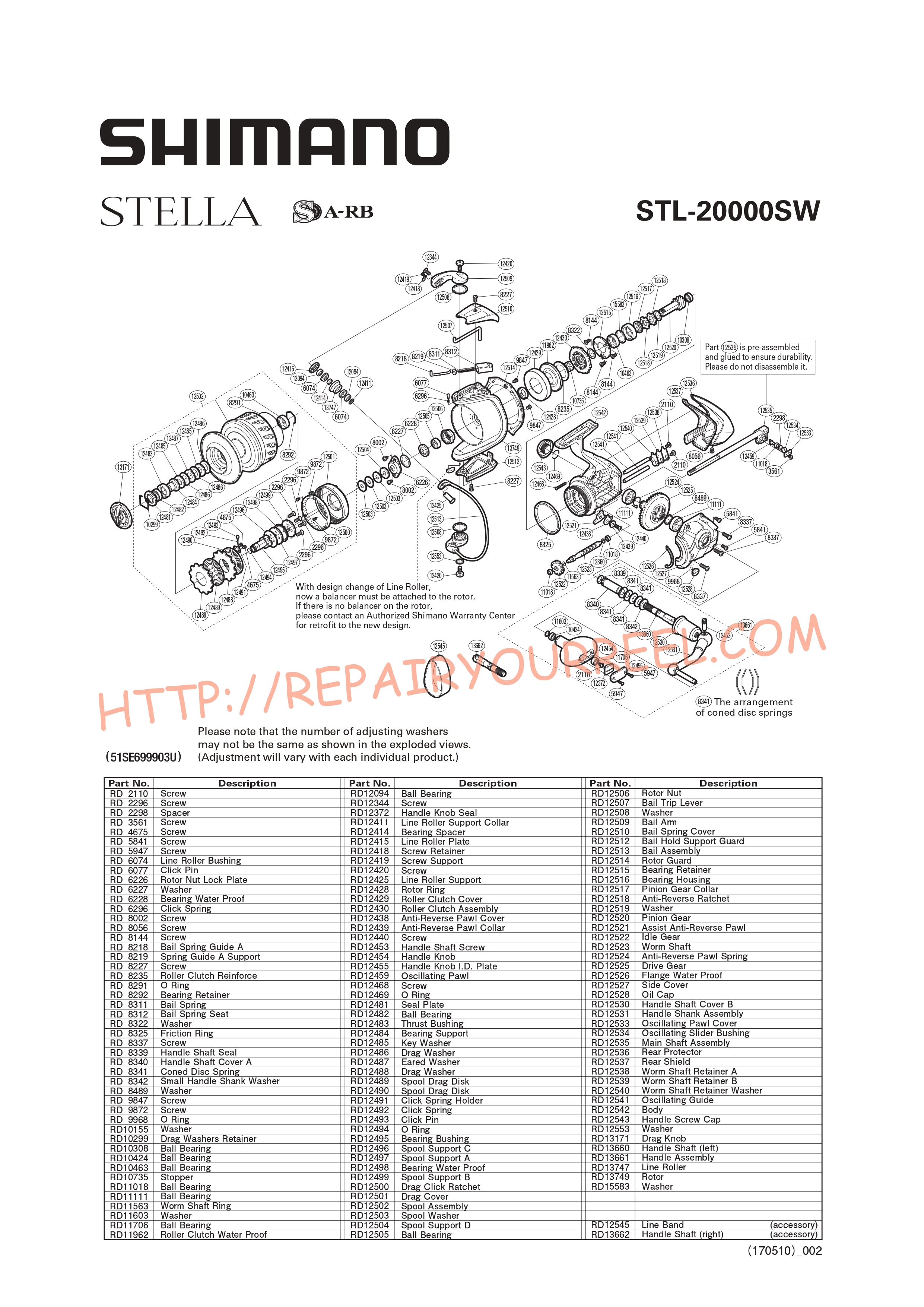

Find the part you need on the exploded view of the Shimano STELLA 20000SW (2009) reel, then order it directly from the list of available parts below.
Description
Identify the spare part(s) of the reel you need, then add them to the cart from the list of available spare parts located below the exploded view of the reel.
Product Details
Shimano
PARTS-STL20000SW
Data sheet
- Type
- Spinning
- Series
- STELLA SW
- Size
- 20000
- Model
- STL20000SW
- Generation
- 2009
Available parts for this reel
| Old reference | Reference | Price (Tax Excl.) | |
|---|---|---|---|
| RD 2110, TT 0531, TGT 0729 |
103E9
SLIDER RETAINER SCREW |
€0.80 |
Out-of-Stock
|
| RD 2296 |
10MLB
SLIDER RETAINER SCREW |
€0.80 |
|
| RD 2298 |
RD2298
Spacer |
€0.80 |
Out-of-Stock
|
| RD 3561, TT 0632 |
10MT4
DRAG WASHER SCREW |
€0.80 |
|
| RD 4675 |
10LV7
OSCILLATING PAWL COVER SCREW |
€0.80 |
Last items in stock
|
| RD 5841 |
RD5841
Screw |
€0.80 |
Out-of-Stock
|
| RD 5947, TT 0782, TGT 0809 |
103NH
CLUTCH CAM SCREW |
€0.80 |
Out-of-Stock
|
| RD 6074 |
RD6074
Line Roller Bushing |
€0.80 |
Out-of-Stock
|
| RD 6077, TT 0479 |
1035W
DIAL CLICK SHOE |
€0.80 |
|
| RD 6226 |
RD6226
Rotor Nut Lock Plate |
€0.80 |
Out-of-Stock
|
| RD 6227 |
RD6227
Washer |
€0.80 |
Out-of-Stock
|
| RD 6228 |
107F5
BEARING WATER PROOF (B) |
€0.80 |
|
| RD 6296 |
10JMD
CLICK SPRING |
€0.80 |
|
| RD 8002 |
10LZ2
NUT LOCK SCREW |
€0.80 |
|
| RD 8056 |
RD8056
Screw |
€0.80 |
Out-of-Stock
|
| RD 8144 |
10ML2
BEARING RETAINER SCREW |
€0.80 |
|
| RD 8218 |
RD8218
Bail Spring Guide A |
€0.80 |
Out-of-Stock
|
| RD 8219 |
10HD9
SPRING GUIDE (A) SUPPORT |
€0.80 |
|
| RD 8227 |
10CYT
PROTECTOR SCREW (A) |
€0.80 |
|
| RD 8235 |
10L5Y
ROLLER CLUTCH REINFORCE |
€0.80 |
|
| RD 8291 |
108WD
O RING |
€0.80 |
|
| RD 8292 |
10LWM
BEARING RETANER |
€0.80 |
|
| RD 8311 |
105FZ
BAIL SPRING |
€0.80 |
|
| RD 8312 |
1077E
BAIL SPRING SEAT |
☹ This part is not produced anymore | |
| RD 8322 |
10HHM
ADJUSTING WASHER |
€0.80 |
|
| RD 8325 |
104AZ
FRICTION RING |
€4.00 |
Out-of-Stock
|
| RD 8337 |
10MBH
SIDE COVER SCREW (B) |
€0.80 |
|
| RD 8339 |
RD8339
Handle Shaft Seal |
€0.80 |
Out-of-Stock
|
| RD 8340 |
RD8340
Handle Shaft Cover A |
€0.80 |
Out-of-Stock
|
| RD 8341 |
RD8341
Coned Disc Spring |
€0.80 |
Out-of-Stock
|
| RD 8342 |
RD8342
Small Handle Shank Washer |
€0.80 |
Out-of-Stock
|
| RD 8489 |
RD8489
Washer |
€0.80 |
Out-of-Stock
|
| RD 9847 |
10CYU
04STL25 PRTCTR SRW A |
€0.80 |
Out-of-Stock
|
| RD 9872, TGT 1577 |
10PRU
PAN3 M1.6X4 |
€0.80 |
|
| RD 9968 |
108W9
04STL10 O RING SS3.5 |
€0.80 |
|
| RD 10155 |
10HWN
STLSW6HG CAM W |
€0.80 |
Out-of-Stock
|
| RD 10299 |
10B6K
05BIO1000 D/W RTNR |
€0.80 |
|
| RD 10308 |
104PN
BALL BEARINGMADE IN THAILAND |
€6.00 |
|
| RD 10424 |
105BN
BALL BEARING MADE IN THAILAND |
€6.00 |
|
| RD 10463 |
10BGC
BALL BEARING MADE IN JAPAN |
€6.00 |
|
| RD 10735 |
105B6
01STLSW10HG ANTI-REVERSE PAWL |
€0.80 |
Out-of-Stock
|
| RD 11018 |
10PDA
BALL BEARINGMADE IN THAILAND |
€6.00 |
|
| RD 11111 |
104PV
BALL BEARINGMADE IN JAPAN |
€9.00 |
|
| RD 11563 |
RD11563
Worm Shaft Ring |
€0.80 |
Out-of-Stock
|
| RD 11603 |
10HV3
WASHER 5.2X6.7X0.1 |
€0.80 |
Out-of-Stock
|
| RD 11706, TGT 1641 |
10KX1
BALL BEARINGMADE IN THAILAND |
€6.00 |
|
| RD 11962 |
RD11962
Roller Clutch Water Proof |
€0.80 |
Out-of-Stock
|
| RD 12094 |
RD12094
Ball Bearing |
€0.80 |
Out-of-Stock
|
| RD 12344 |
10K46
08STLSW5HG L/R SCREW |
€0.80 |
|
| RD 12372, TGT 1640 |
10B97
08STLSW20PG H/K SEAL |
€0.80 |
|
| RD 12414 |
10GAG
08STLSW20PG BB SPCR |
€0.80 |
|
| RD 12418 |
107LE
08SW20PG L/R/S RTNR |
€0.80 |
|
| RD 12419 |
107LF
08SW20PG L/R/S SPRT |
€0.80 |
|
| RD 12420 |
10Q86
08STLSW20PG B/A SRW |
€0.80 |
Out-of-Stock
|
| RD 12430 |
10QRF
08STLSW20PG R/C ASSY |
€17.50 |
Out-of-Stock
|
| RD 12438 |
102VH
08STLSW20PG ARP CVR |
€0.80 |
|
| RD 12439 |
10J3U
08STLSW20PG AARP CLR |
€0.80 |
|
| RD 12440 |
103HM
LINE ROLLER SCREW |
€0.80 |
|
| RD 12453 |
10PV0
08STLSW20PG H/S SRW |
€0.80 |
Last items in stock
|
| RD 12459 |
106V5
08STLSW20PG OSC PAWL |
€0.80 |
|
| RD 12469 |
108WP
08SW5HG ORING SS11.5 |
€0.80 |
|
| RD 12481 |
10LQZ
08STLSW20PG SEAL PLT |
€4.00 |
|
| RD 12482 |
10KX7
BALL BEARINGMADE IN THAILAND |
€9.00 |
|
| RD 12483 |
10LWS
08STLSW20PG TRST BSH |
€4.00 |
|
| RD 12484 |
RD12484
Bearing Support |
€0.80 |
Out-of-Stock
|
| RD 12485 |
10BA1
08STLSW20PG KEY W |
€0.80 |
|
| RD 12486 |
RD12486
Drag Washer |
€0.80 |
Out-of-Stock
|
| RD 12487 |
10BEB
08STLSW20PG EARED W |
€0.80 |
|
| RD 12488 |
10C18
08STLSW20PG DRAG W B |
€22.50 |
Out-of-Stock
|
| RD 12489 |
10BS6
08SW20PG S/D DISK A |
€0.80 |
|
| RD 12490 |
10BY2
08SW20PG S/D DISK B |
€4.00 |
|
| RD 12491 |
109ZN
08SW20PG D/C/S HLDR |
€0.80 |
|
| RD 12492 |
10JMG
08STLSW20PG D/C SPR |
€0.80 |
|
| RD 12493 |
10382
08STLSW20PG D/CLICK |
€0.80 |
|
| RD 12494 |
108WQ
08SW20PG ORING SS065 |
€0.80 |
|
| RD 12495 |
RD12495
Bearing Bushing |
€0.80 |
Out-of-Stock
|
| RD 12496 |
10P3G
08STLSW20PG S/SPRT C |
€0.80 |
|
| RD 12497 |
103P2
08STLSW20PG S/SPRT A |
☹ This part is not produced anymore | |
| RD 12498 |
10JPG
08STLSW20PG BRNG W/P |
€0.80 |
|
| RD 12499 |
10HZZ
08STLSW20PG S/SPRT B |
€0.80 |
|
| RD 12500 |
RD12500
Drag Click Ratchet |
€0.80 |
Out-of-Stock
|
| RD 12501 |
RD12501
Drag Cover |
€0.80 |
Out-of-Stock
|
| RD 12502 |
RD12502
Spool Assembly |
€0.80 |
Out-of-Stock
|
| RD 12503 |
10BXM
08SW20PG SPOOL W A |
€0.80 |
|
| RD 12504 |
10J3W
08STLSW20PG S/SPRT D |
€0.80 |
|
| RD 12505 |
RD12505
Ball Bearing |
€0.80 |
Out-of-Stock
|
| RD 12506 |
RD12506
Rotor Nut |
€0.80 |
Out-of-Stock
|
| RD 12507 |
RD12507
Bail Trip Lever |
€0.80 |
Out-of-Stock
|
| RD 12508 |
10J7H
01STLSW10H B/A W 0.5 |
€0.80 |
|
| RD 12509 |
RD12509
Bail Arm |
€0.80 |
Out-of-Stock
|
| RD 12510 |
RD12510
Bail Spring Cover |
€0.80 |
Out-of-Stock
|
| RD 12512 |
RD12512
Bail Hold Support Guard |
€0.80 |
Out-of-Stock
|
| RD 12513 |
RD12513
Bail Assembly |
€0.80 |
Out-of-Stock
|
| RD 12514 |
RD12514
Rotor Guard |
€0.80 |
Out-of-Stock
|
| RD 12515 |
1054W
08STLSW20PG BB RTNR |
€0.80 |
Out-of-Stock
|
| RD 12516 |
10JA9
08SW20PG B/HOUSING |
€4.00 |
|
| RD 12517 |
10BAE
08STLSW20PG P/G CLR |
€0.80 |
|
| RD 12518 |
107VM
08STLSW20PG A/R RCT |
€0.80 |
|
| RD 12519 |
10HHP
SL2WASHER9X13X0.5 |
€0.80 |
|
| RD 12520 |
RD12520
Pinion Gear |
€0.80 |
Out-of-Stock
|
| RD 12521 |
10J3S
08STLSW20PG A A/R PL |
€0.80 |
|
| RD 12522 |
RD12522
Idle Gear |
€0.80 |
Out-of-Stock
|
| RD 12523 |
RD12523
Worm Shaft |
€0.80 |
Out-of-Stock
|
| RD 12524 |
10805
08STLSW20PG ARP SPR |
€0.80 |
|
| RD 12525 |
RD12525
Drive Gear |
€0.80 |
Out-of-Stock
|
| RD 12526 |
RD12526
Flange Water Proof |
€0.80 |
Out-of-Stock
|
| RD 12527 |
RD12527
Side Cover |
€0.80 |
Out-of-Stock
|
| RD 12528 |
RD12528
Oil Cap |
€0.80 |
Out-of-Stock
|
| RD 12530 |
RD12530
Handle Shaft Cover B |
€0.80 |
Out-of-Stock
|
| RD 12531 |
RD12531
Handle Shank Assembly |
€0.80 |
Out-of-Stock
|
| RD 12533 |
10H7S
08STLSW20PG O/P CVR |
€0.80 |
|
| RD 12534 |
10JV4
08STLSW20PG O/S BUSH |
€0.80 |
|
| RD 12535 |
RD12535
Main Shaft Assembly |
€0.80 |
Out-of-Stock
|
| RD 12536 |
RD12536
Rear Protector |
€0.80 |
Out-of-Stock
|
| RD 12537 |
RD12537
Rear Shield |
€0.80 |
Out-of-Stock
|
| RD 12538 |
RD12538
Worm Shaft Retainer A |
€0.80 |
Out-of-Stock
|
| RD 12539 |
RD12539
Worm Shaft Retainer B |
€0.80 |
Out-of-Stock
|
| RD 12540 |
RD12540
Worm Shaft Retainer Washer |
€0.80 |
Out-of-Stock
|
| RD 12541 |
RD12541
Oscillating Guide |
€0.80 |
Out-of-Stock
|
| RD 12542 |
RD12542
Body |
€0.80 |
Out-of-Stock
|
| RD 12543 |
RD12543
Handle Screw Cap |
€0.80 |
Out-of-Stock
|
| RD 12545 |
RD12545
Line Band (accessory) |
€0.80 |
Out-of-Stock
|
| RD 12553 |
RD12553
Washer |
€0.80 |
Out-of-Stock
|
| RD 13171 |
RD13171
Drag Knob |
€0.80 |
Out-of-Stock
|
| RD 13660 |
RD13660
Handle Shaft (left) |
€0.80 |
Out-of-Stock
|
| RD 13661 |
RD13661
Handle Assembly |
€0.80 |
Out-of-Stock
|
| RD 13662 |
RD13662
Handle Shaft (right) (accessory) |
€0.80 |
Out-of-Stock
|
| RD 13747 |
RD13747
Line Roller |
€0.80 |
Out-of-Stock
|
| RD 13749 |
RD13749
Rotor |
€0.80 |
Out-of-Stock
|
| RD 15583 |
RD15583
Washer |
€0.80 |
Out-of-Stock
|
