Parts for Shimano STELLA 10000SW (2009) reel

Shimano
PARTS-STL10000SW
Find the part you need on the exploded view of the Shimano STELLA 10000SW (2009) reel, then order it directly from the list of available parts below.

Description

Identify the spare part(s) of the reel you need, then add them to the cart from the list of available spare parts located below the exploded view of the reel.

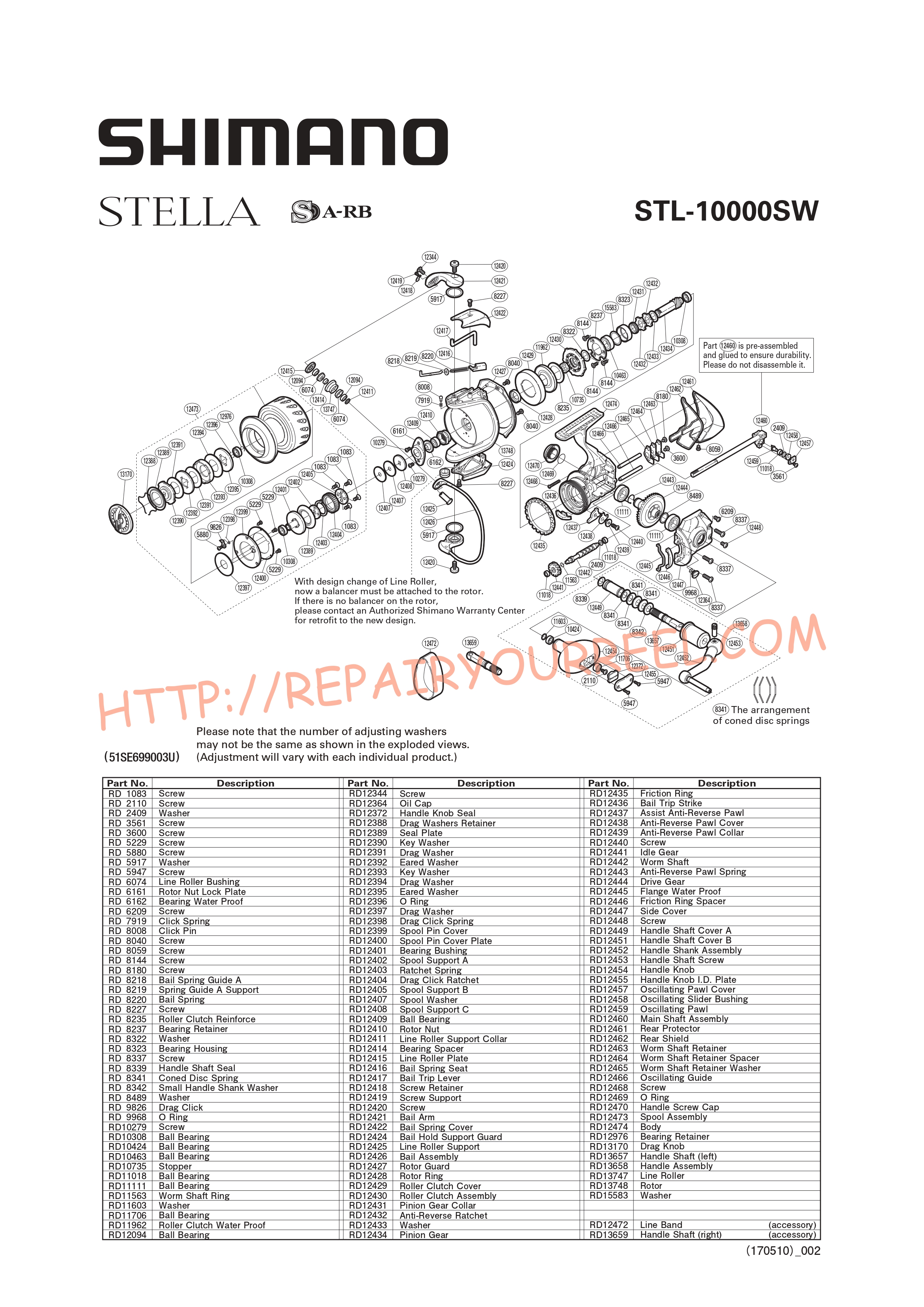

Exploded view of Shimano STELLA 10000SW (2009)

Product Details

Shimano Shimano
PARTS-STL10000SW

Data sheet

Type
Spinning
Series
STELLA SW
Size
10000
Model
STL10000SW
Generation
2009

Available parts for this reel

Old reference Reference Price (Tax Excl.)
RD 2110, TT 0531, TGT 0729 103E9
SLIDER RETAINER SCREW 		€0.80
Out-of-Stock
RD 2409 1059U
TPGTWORM SHAFTW0.2T 		€0.80
Out-of-Stock
RD 3561, TT 0632 10MT4
DRAG WASHER SCREW 		€0.80
RD 3600, TT 0627 103L4
ALERT RATCHET SCREW 		€0.80
RD 5880 10MT3
DRIVE SHAFT RETAINER SCREW 		€0.80
Out-of-Stock
RD 5917 10HDP
BAIL ARM WASHER 		€0.80
RD 5947, TT 0782, TGT 0809 103NH
CLUTCH CAM SCREW 		€0.80
Out-of-Stock
RD 6074 RD6074
Line Roller Bushing 		€0.80
Out-of-Stock
RD 7919 1077Q
CLICK SPRING 		€0.80
RD 8008 10CH8
CLICK PIN 		€0.80
RD 8040 10MHG
GEAR COVER SCREW 		€0.80
RD 8059 10L9D
PROTECTOR SCREW 		€0.80
RD 8144 10ML2
BEARING RETAINER SCREW 		€0.80
RD 8219 10HD9
SPRING GUIDE (A) SUPPORT 		€0.80
RD 8220 105FY
BAIL SPRING 		€0.80
RD 8227 10CYT
PROTECTOR SCREW (A) 		€0.80
RD 8235 10L5Y
ROLLER CLUTCH REINFORCE 		€0.80
RD 8322 10HHM
ADJUSTING WASHER 		€0.80
RD 8323 10JA8
BEARING HOUSING 		☹ This part is not produced anymore
RD 8337 10MBH
SIDE COVER SCREW (B) 		€0.80
RD 9968 108W9
04STL10 O RING SS3.5 		€0.80
RD 10308 104PN
BALL BEARINGMADE IN THAILAND 		€6.00
RD 10424 105BN
BALL BEARING MADE IN THAILAND 		€6.00
RD 10463 10BGC
BALL BEARING MADE IN JAPAN 		€6.00
RD 10735 105B6
01STLSW10HG ANTI-REVERSE PAWL 		€0.80
Out-of-Stock
RD 11018 10PDA
BALL BEARINGMADE IN THAILAND 		€6.00
RD 11111 104PV
BALL BEARINGMADE IN JAPAN 		€9.00
RD 11603 10HV3
WASHER 5.2X6.7X0.1 		€0.80
Out-of-Stock
RD 11706, TGT 1641 10KX1
BALL BEARINGMADE IN THAILAND 		€6.00
RD 12094 RD12094
Ball Bearing 		€0.80
Out-of-Stock
RD 12344 10K46
08STLSW5HG L/R SCREW 		€0.80
RD 12372, TGT 1640 10B97
08STLSW20PG H/K SEAL 		€0.80
RD 12410 RD12410
Rotor Nut 		€0.80
Out-of-Stock
RD 12414 10GAG
08STLSW20PG BB SPCR 		€0.80
RD 12418 107LE
08SW20PG L/R/S RTNR 		€0.80
RD 12419 107LF
08SW20PG L/R/S SPRT 		€0.80
RD 12420 10Q86
08STLSW20PG B/A SRW 		€0.80
Out-of-Stock
RD 12430 10QRF
08STLSW20PG R/C ASSY 		€17.50
Out-of-Stock
RD 12431 10BAD
08STLSW8HG P/G CLR 		☹ This part is not produced anymore
RD 12432 107VL
08STLSW8HG A/R RCT 		€0.80
Out-of-Stock
RD 12435 104FX
08STLSW8000HG F/RING 		€0.80
RD 12437 10J3R
08STLSW8HG A A/R PL 		€0.80
Out-of-Stock
RD 12438 102VH
08STLSW20PG ARP CVR 		€0.80
RD 12439 10J3U
08STLSW20PG AARP CLR 		€0.80
RD 12440 103HM
LINE ROLLER SCREW 		€0.80
RD 12443 10804
08STLSW8HG ARP SPR 		☹ This part is not produced anymore
RD 12446 10J3K
08STLSW8HG F/R SPCR 		€0.80
Out-of-Stock
RD 12453 10PV0
08STLSW20PG H/S SRW 		€0.80
Last items in stock
RD 12457 10H7R
08STLSW8HG O/P CVR 		€0.80
RD 12459 106V5
08STLSW20PG OSC PAWL 		€0.80
RD 12469 108WP
08SW5HG ORING SS11.5 		€0.80
RD 12473 RD12473
Spool Assembly 		€0.80
Out-of-Stock
RD 12474 RD12474
Body 		€0.80
Out-of-Stock
RD 13170 RD13170
Drag Knob 		€0.80
Out-of-Stock
RD 13657 RD13657
Handle Shaft (left) 		€0.80
Out-of-Stock
RD 13658 RD13658
Handle Assembly 		€0.80
Out-of-Stock
RD 13659 RD13659
Handle Shaft (right) (accessory) 		€0.80
Out-of-Stock
RD 13747 RD13747
Line Roller 		€0.80
Out-of-Stock
RD 13748 RD13748
Rotor 		€0.80
Out-of-Stock
RD 15583 RD15583
Washer 		€0.80
Out-of-Stock
