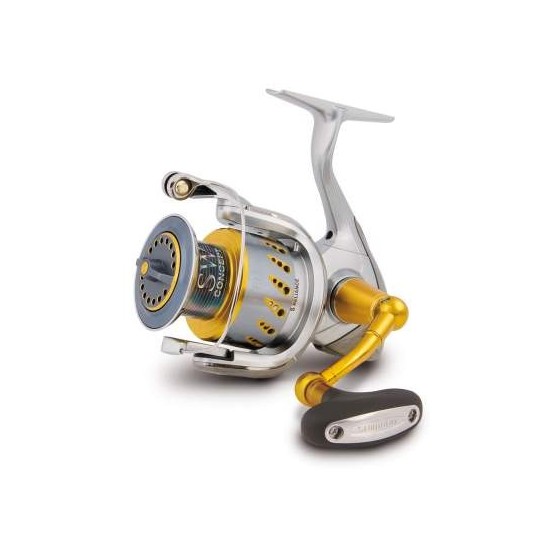

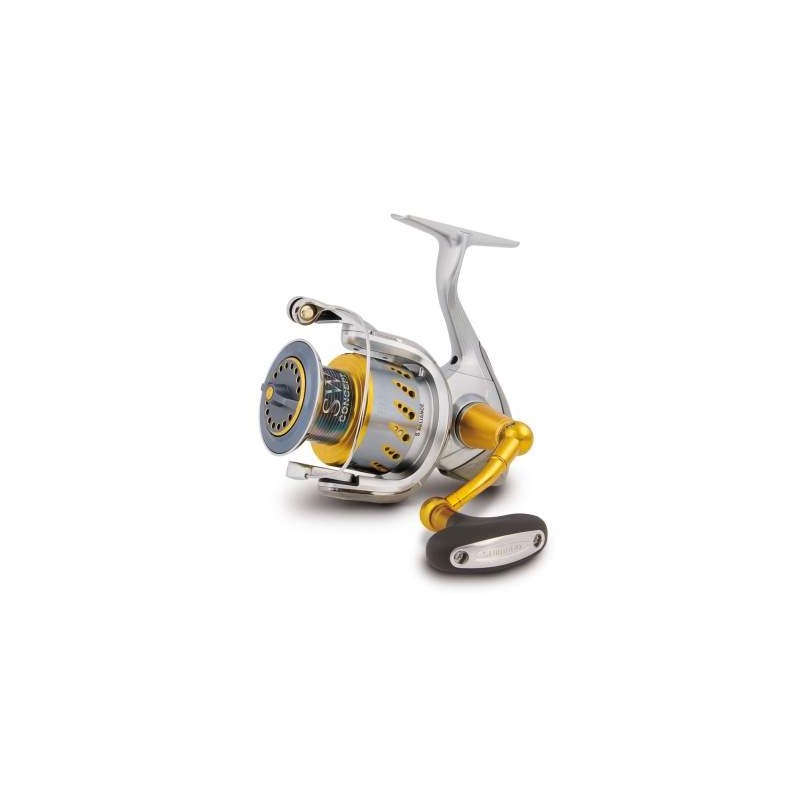

Parts for Shimano STELLA 4000SW (2009) reel
PARTS-STL4000SW
Find the part you need on the exploded view of the Shimano STELLA 4000SW (2009) reel, then order it directly from the list of available parts below.
Description
Identify the spare part(s) of the reel you need, then add them to the cart from the list of available spare parts located below the exploded view of the reel.
Product Details
Shimano
PARTS-STL4000SW
Data sheet
- Type
- Spinning
- Series
- STELLA SW
- Size
- 4000
- Model
- STL4000SW
- Generation
- 2009
Available parts for this reel
| Old reference | Reference | Price (Tax Excl.) | |
|---|---|---|---|
| RD 2110, TT 0531, TGT 0729 |
103E9
SLIDER RETAINER SCREW |
€0.80 |
Out-of-Stock
|
| RD 2409 |
1059U
TPGTWORM SHAFTW0.2T |
€0.80 |
Out-of-Stock
|
| RD 3538 |
103NX
SPOOL SUPPORT |
€0.80 |
Out-of-Stock
|
| RD 3600, TT 0627 |
103L4
ALERT RATCHET SCREW |
€0.80 |
|
| RD 5947, TT 0782, TGT 0809 |
103NH
CLUTCH CAM SCREW |
€0.80 |
Out-of-Stock
|
| RD 6008 |
10PN2
SET SCREW M2X5 |
€0.80 |
|
| RD 6013 |
1072N
MAIN SHAFT SPACER |
€0.80 |
Out-of-Stock
|
| RD 6016 |
10GAH
BEARING SPACER |
€0.80 |
Last items in stock
|
| RD 6017 |
RD6017
Line Roller Bushing |
€0.80 |
Out-of-Stock
|
| RD 6019 |
RD6019
Line Roller Plate |
€0.80 |
Out-of-Stock
|
| RD 6109 |
10BSJ
SPOOL WASHER |
€0.80 |
|
| RD 6192, RD 17508 |
10HHT
98STL5H DRIVE GEAR WASHER |
€0.80 |
|
| RD 6193, TLD 0049, TT 0594, TGT 0867 |
10MGG
LEVER CLICK COVER SCREW |
€0.80 |
|
| RD 6615 |
RD6615
Screw |
€0.80 |
Out-of-Stock
|
| RD 7787 |
105RG
BAIL SPRING GUIDE (A) |
€0.80 |
Out-of-Stock
|
| RD 7788 |
1064R
SPRING GUIDE (A) SUPPORT |
€0.80 |
|
| RD 7921 |
105FX
BAIL SPRING |
€0.80 |
Out-of-Stock
|
| RD 7922 |
1077C
BAIL SPRING SEAT |
€0.80 |
|
| RD 8002 |
10LZ2
NUT LOCK SCREW |
€0.80 |
|
| RD 8004 |
107F3
BEARING WATER PROOF |
€0.80 |
|
| RD 8013 |
10K40
01STLFW25S L/R SCREW |
€0.80 |
Out-of-Stock
|
| RD 8014 |
RD8014
Screw |
€0.80 |
Out-of-Stock
|
| RD 8040 |
10MHG
GEAR COVER SCREW |
€0.80 |
|
| RD 8118 |
10B8A
DRAG WASHERS RETAINER |
€0.80 |
|
| RD 8144 |
10ML2
BEARING RETAINER SCREW |
€0.80 |
|
| RD 8916 |
10CH0
01BBX TECH 3000 CLICK SPRING |
€0.80 |
|
| RD 9831 |
RD9831
Bearing Bushing Spacer |
€0.80 |
Out-of-Stock
|
| RD 9833 |
107V2
04STL25 RATCHET SPR |
€0.80 |
Out-of-Stock
|
| RD 9835 |
1076M
04STL2500 R/N RTNR |
€0.80 |
Out-of-Stock
|
| RD 9847 |
10CYU
04STL25 PRTCTR SRW A |
€0.80 |
Out-of-Stock
|
| RD 9849 |
106ZG
04STL25 PRTCTR SRW B |
€0.80 |
|
| RD 9903 |
108WA
04STL25 O RING SS9.5 |
€0.80 |
|
| RD 9908 |
102ZP
01STLAR3 DRAG WASHER (A) |
€0.80 |
Out-of-Stock
|
| RD 9911 |
10C13
01STLAR3 DRAG WASHERB |
€0.80 |
Out-of-Stock
|
| RD 9912 |
10GEW
LEFT (SPOOL) BEARING LOCK |
€0.80 |
|
| RD 10424 |
105BN
BALL BEARING MADE IN THAILAND |
€6.00 |
|
| RD 10441 |
104JS
BALL BEARINGMADE IN THAILAND |
€6.00 |
|
| RD 10473 |
104PS
BALL BEARINGMADE IN JAPAN |
€6.00 |
Last items in stock
|
| RD 11018 |
10PDA
BALL BEARINGMADE IN THAILAND |
€6.00 |
|
| RD 11319 |
RD11319
Ball Bearing |
€0.80 |
Out-of-Stock
|
| RD 11536 |
RD11536
Ball Bearing |
€0.80 |
Out-of-Stock
|
| RD 11547 |
10L01
05BBXTMGC3 L/R SPRT |
€4.00 |
|
| RD 11548 |
109GT
07STL25 B/H/S SCREW |
€0.80 |
|
| RD 11549 |
107LA
07STL25B/H/S SRW CLR |
€0.80 |
|
| RD 11578 |
10PC0
BALL BEARINGMADE IN JAPAN |
€9.00 |
|
| RD 11603 |
10HV3
WASHER 5.2X6.7X0.1 |
€0.80 |
Out-of-Stock
|
| RD 11633 |
10LSC
PAN P2X12 |
€0.80 |
Last items in stock
|
| RD 11643 |
10BE7
07STL4 EARED WASHER |
€0.80 |
|
| RD 11644 |
RD11644
Key Washer |
€0.80 |
Out-of-Stock
|
| RD 11646 |
107PS
07STL4 D/C RATCHET |
€0.80 |
|
| RD 11649 |
106ZD
07STL4000 CLICK PIN |
€0.80 |
Out-of-Stock
|
| RD 11651 |
108R2
07STL4 BAIL SPR CVR |
€4.00 |
|
| RD 11652 |
108GJ
07STL4000 B/T LEVER |
€0.80 |
|
| RD 11654 |
10M9R
07STL4 B/H SPRT GRD |
€4.00 |
Out-of-Stock
|
| RD 11656 |
10K4Q
07STL4 B/H /S SHAFT |
€0.80 |
|
| RD 11657 |
10D0V
07STL4 B/H/S SPACER |
€0.80 |
|
| RD 11658 |
106ZU
07STL4 ROTOR GUARD |
€6.00 |
Last items in stock
|
| RD 11661 |
10G6J
07STL4 R/C OTER SPCR |
€0.80 |
|
| RD 11663 |
104FW
07STL4 FRCTIN RING |
€0.80 |
|
| RD 11665 |
107DX
07STL4 B/T STRIKE |
€0.80 |
|
| RD 11706, TGT 1641 |
10KX1
BALL BEARINGMADE IN THAILAND |
€6.00 |
|
| RD 12096 |
104Q6
BALL BEARINGMADE IN THAILAND |
€4.00 |
|
| RD 12356 |
1051S
STLSW4HG BRNG RTNR N |
☹ This part is not produced anymore | |
| RD 12358 |
RD12358
Idle Gear |
€0.80 |
Out-of-Stock
|
| RD 12359 |
RD12359
Worm Shaft |
€0.80 |
Out-of-Stock
|
| RD 12360 |
10J7K
04STL25 AJST W A0.1 |
€0.80 |
|
| RD 12361 |
RD12361
Drive Gear |
€0.80 |
Out-of-Stock
|
| RD 12362 |
RD12362
Flange Water Proof |
€0.80 |
Out-of-Stock
|
| RD 12363 |
RD12363
Side Cover |
€0.80 |
Out-of-Stock
|
| RD 12365 |
RD12365
Handle Shaft Cover B |
€0.80 |
Out-of-Stock
|
| RD 12366 |
RD12366
Handle Shaft Cover |
€0.80 |
Out-of-Stock
|
| RD 12367 |
RD12367
Handle Lock Spacer |
€0.80 |
Out-of-Stock
|
| RD 12368 |
RD12368
Large Handle Shank Washer |
€0.80 |
Out-of-Stock
|
| RD 12369 |
RD12369
Handle Shaft (left) |
€0.80 |
Out-of-Stock
|
| RD 12370 |
RD12370
Handle Shank Assembly |
€0.80 |
Out-of-Stock
|
| RD 12375 |
10H7Q
08STLSW5HG O/P CVR |
€0.80 |
|
| RD 12376 |
106V4
08STLSW5HG OSC PAWL |
€0.80 |
Out-of-Stock
|
| RD 12378 |
RD12378
Rear Protector |
€0.80 |
Out-of-Stock
|
| RD 12379 |
RD12379
Rear Shield |
€0.80 |
Out-of-Stock
|
| RD 12380 |
RD12380
Worm Shaft Retainer |
€0.80 |
Out-of-Stock
|
| RD 12381 |
RD12381
Worm Shaft Retainer Washer |
€0.80 |
Out-of-Stock
|
| RD 12382 |
RD12382
Oscillating Guide |
€0.80 |
Out-of-Stock
|
| RD 12384 |
RD12384
Handle Screw Cap |
€0.80 |
Out-of-Stock
|
| RD 12385 |
RD12385
Handle Shaft (right) (accessory) |
€0.80 |
Out-of-Stock
|
| RD 13017 |
10Q6B
07STL4 SPOOL PIN CVR |
☹ This part is not produced anymore | |
| RD 13018 |
10Q6L
07STL4 S/P CVR PLT |
€0.80 |
Out-of-Stock
|
| RD 13132 |
10G9X
07STL2500 L/R SPRT W |
€0.80 |
|
| RD 13467 |
RD13467
Key Washer |
€0.80 |
Out-of-Stock
|
| RD 14447 |
RD14447
Handle Knob |
€0.80 |
Out-of-Stock
|
| RD 14448 |
RD14448
Handle Knob I.D. Plate |
€0.80 |
Out-of-Stock
|
| RD 15203 |
RD15203
Drag Knob |
€0.80 |
Out-of-Stock
|
| RD 15204 |
RD15204
Spool Assembly |
€0.80 |
Out-of-Stock
|
| RD 15205 |
RD15205
Line Roller |
€0.80 |
Out-of-Stock
|
| RD 15206 |
RD15206
Bail Arm |
€0.80 |
Out-of-Stock
|
| RD 15207 |
RD15207
Rotor |
€0.80 |
Out-of-Stock
|
| RD 15208 |
RD15208
Bail Assembly |
€0.80 |
Out-of-Stock
|
| RD 15209 |
RD15209
Handle Assembly |
€0.80 |
Out-of-Stock
|
| RD 15210 |
RD15210
Main Shaft Assembly |
€0.80 |
Out-of-Stock
|
| RD 15211 |
RD15211
Body |
€0.80 |
Out-of-Stock
|
| RD 15212 |
RD15212
Line Band (accessory) |
€0.80 |
Out-of-Stock
|
| RD 9968 |
RD 9968
O Ring |
€0.80 |
Out-of-Stock
|
| RD 9997 |
RD 9997
Bearing Bushing |
€0.80 |
Out-of-Stock
|
