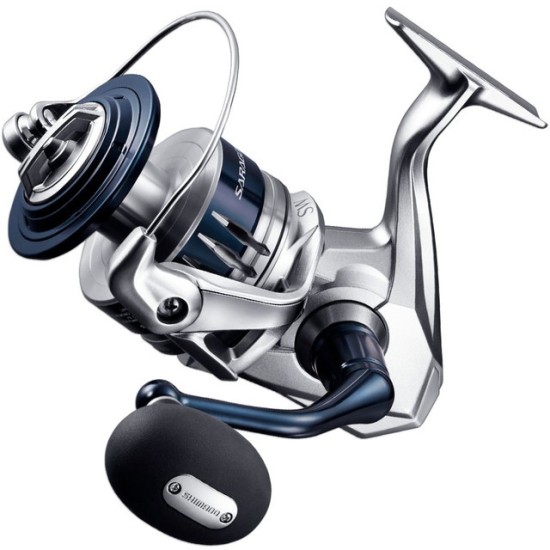

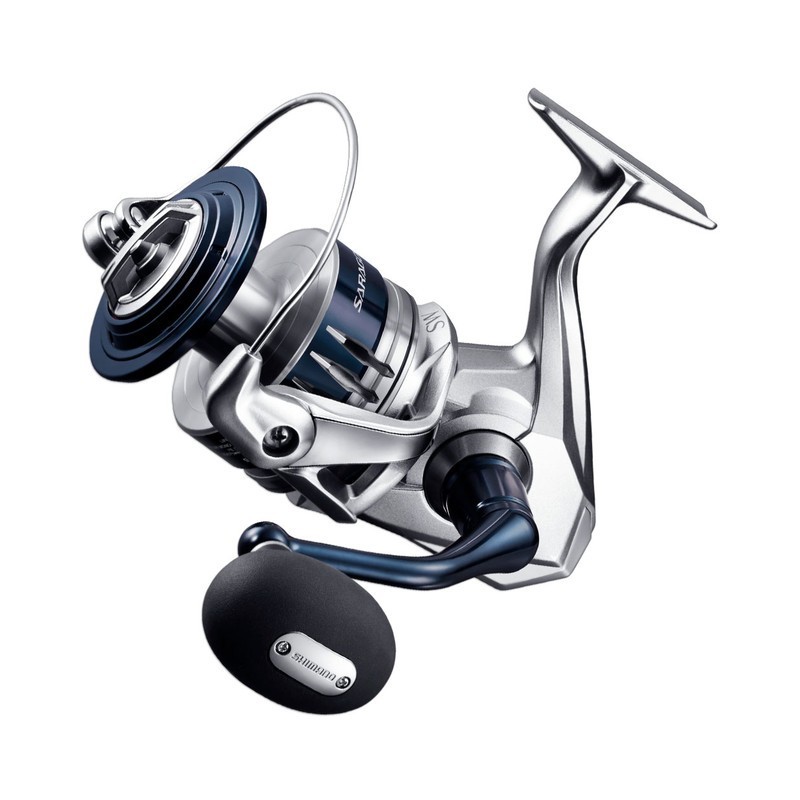

Parts for Shimano SARAGOSA SW5000XGA (2020) reel

Shimano
PARTS-SRG5000SWAXG
Find the part you need on the exploded view of the Shimano SARAGOSA SW5000XGA (2020) reel, then order it directly from the list of available parts below.

Description

Identify the spare part(s) of the reel you need, then add them to the cart from the list of available spare parts located below the exploded view of the reel.

Exploded view of Shimano SARAGOSA SW5000XGA (2020)

Product Details

Shimano Shimano
PARTS-SRG5000SWAXG

Data sheet

Type
Spinning
Series
SARAGOSA
Size
5000
Model
SRG5000SWAXG
Generation
2020

Available parts for this reel

Old reference / Reference Price (Tax Excl.)
RD 0582 / 108WH
GTX1200P O RING (SM10) 		€0.80
Out-of-Stock
RD 3571 / 10MPP
BRAKE SHAFT HOLDER SCREW 		€0.80
Out-of-Stock
RD 5625 / 10KFF
APT1000 LINE ROLLER SPACER 		€0.80
RD 6686 / 10JXE
99NAVI2 CLICK SPRING 		€0.80
Out-of-Stock
RD 6687 / 10PEH
99NAVI2 BAIL ARM CLICK 		€0.80
RD 8189 / 108SM
HANDLE KNOB I.D.PLATE 		€0.80
RD 8999 / 10HEA
03NAVI4000 B/A CLICK 		€0.80
RD 9903 / 108WA
04STL25 O RING SS9.5 		€0.80
RD 10079 / 10MZP
05BIO8XSA D/W RTNR 		€0.80
RD 10752 / 10TYE
03NAVI2500B/S/GA CLR 		€0.80
Out-of-Stock
RD 10753 / 10FVD
03NAVI4000BAILSPRING 		€0.80
RD 11158 / 10HEK
03NAVI6 CLICK SPRING 		€0.80
Out-of-Stock
RD 13189 / 104PT
BALL BEARINGMADE IN THAILAND 		€0.80
RD 13222 / 10JYG
10BTR8000D O/G BUSH 		€0.80
Last items in stock
RD 13620 / 10L6D
PAN M2.6X8 NL 		€0.80
RD 14171, TGT 1700 / 104UJ
08BIO6PG H/K BUSH B 		€0.80
RD 14396 / 104VQ
BB 4X8X3 ARB NAS MADE IN THAILAND 		€0.80
RD 15717, RD 21095, RD 21182 / 10BGF
13STLSW5HG S/C B W 		€0.80
RD 16251 / 108WW
O RING NOK SS2.5 		€0.80
RD 16319 / 10BC8
14SRG5SW KEY WASHER 		€0.80
RD 16320 / 102Z8
14SRG5SW EARED WSR 		€0.80
RD 16321 / 10347
14SRG5SW DRAG WSR 		€0.80
RD 16322 / 10JJW
14SRG5SW D/C HOLDER 		€0.80
RD 16323 / 109HG
14SRG5SW D/C/H COVER 		€0.80
Out-of-Stock
RD 16326 / 10J6D
14SRG5000SW S/S SEAL 		€0.80
Out-of-Stock
RD 16327 / 103MY
14SRG5SW SPOOL SPRT 		€0.80
Out-of-Stock
RD 16328 / 10LSM
PAN P2.6X4 SCM 		€0.80
RD 16335 / 106KM
14SRG5SW B/T LEVER 		€0.80
RD 16337 / 1087Y
14SRG5SW B/S COVER 		€0.80
RD 16339 / 10MNB
14SRG5SW B/H/S GRD 		€0.80
Out-of-Stock
RD 16340 / 10Q3G
14SRG5SW L/R SPRT 		€0.80
Out-of-Stock
RD 16342 / 10A6S
14SRG5SW R/C SCREW 		€0.80
RD 16343 / 10MH9
14SRG5SW RC/W/P CVR 		€0.80
RD 16344 / 10MH1
14SRG5SW RC W/PROOF 		€0.80
RD 16345 / 10K7R
14SRG5SW ROTOR RING 		€0.80
Last items in stock
RD 16346 / 10QPE
14SRG5SW R/C ASSY 		€0.80
RD 16347 / 10H4F
14SRG5SW R/C C/SEAL 		€0.80
RD 16349 / 104G7
14SRG5SW FRCTN RING 		€0.80
RD 16360 / 10LZ7
PAN M2.6X16 NL SCM 		€0.80
Out-of-Stock
RD 16362 / 109UZ
14SRG5SW LINE BAND 		€0.80
Out-of-Stock
RD 16641 / 107F7
14SRG5SW B/W/P(RTR) 		€0.80
RD 17378 / 10L1R
PAN P2X5 SCM 		€0.80
RD 17391 / 10LFK
TRS P2.6X7 SH SCM 		€0.80
RD 17398 / 105LU
01STLFW25 BLSPR GD A 		€0.80
RD 17399 / 10LLJ
TRS P3X10 SPL 		€0.80
Out-of-Stock
RD 17412 / 10PH7
STELLA1 SPOOLW0.5SPL 		€0.80
Out-of-Stock
RD 17417 / 10L1T
PAN P2X6 		€0.80
Out-of-Stock
RD 17700 / 10LFA
TRSM2.6X5 SUS NL SPL 		€0.80
RD 17828 / 10QVK
SARA M2X3 NL SLV 		€0.80
Out-of-Stock
RD 17863 / 10LCS
TRS P2X4 		€0.80
Out-of-Stock
RD 18410 / 10EU0
08BIO6PG H/K BUSH A 		€0.80
RD 19745 / 104FH
HANDLE KNOB WASHER SET 		€0.80
RD 19754 / 10DKJ
98STL5H DRIVE GEAR WASHER SET 		€0.80
Last items in stock
RD 19831 / 1009E
18BBXRM60D LINE ROLLER O RING 		€0.80
Out-of-Stock
RD 19990 / 1055H
13STLSW5HG B/B SCREW 		€0.80
RD 20293 / 10K5Y
B BEARING 6X10X3 SCM NMB MADE INTHAILAND 		€0.80
RD 21045 / 100X8
20SRGSW50XG DRAG KNOB ASSY 		€12.00
Out-of-Stock
RD 21046 / 100XF
20SRGSW50XG SPOOL ASSY 		€37.80
Out-of-Stock
RD 21048 / 10R89
20SRGSW50XG BAIL ASSY 		€30.00
Last items in stock
RD 21049 / 100XA
20SRGSW50XG DRIVE GEAR ASSY 		€0.80
RD 21050 / 10R88
20SRGSW50XG BODY ASSY 		€25.00
Last items in stock
RD 21051 / 10R8A
20SRGSW50XG MAIN SHAFT ASSY 		€0.80
Out-of-Stock
RD 21052 / 10R7X
20SRGSW50XG SIDE COVER ASSY 		€25.00
Last items in stock
RD 21053 / 10R8C
20SRGSW50XG HANDLE KNOB ASSY 		€0.80
Out-of-Stock
RD 21054 / 100X5
20SRGSW50XG HANDLE ASSY 		€36.00
Out-of-Stock
RD 21058 / 100XH
20SRGSW50XG DRAG WASHERS RETAINER 		€0.80
RD 21059 / 100XC
20SRGSW50XG DRAG COVER 		€0.80
RD 21062 / 100X9
20SRGSW50XG ROTOR 		€15.00
Last items in stock
RD 21063 / 100XK
20SRGSW50XG LINE ROLLER 		€0.80
RD 21064 / 100X4
20SRGSW50XG ROTOR NUT 		€0.80
RD 21065 / 100X6
20SRGSW50XG LINE ROLLER SUPPORT COLLAR 		€0.80
RD 21066 / 100X3
20SRGSW50XG LINE ROLLER BUSHING 		€0.80
RD 21067 / 10TG5
20SRGSW50XG LINE ROLLER WASHER 		€0.80
Out-of-Stock
RD 21069 / 10TG8
20SRGSW50XG MAIN SHAFT SPACER 		€0.80
RD 21070 / 10TGE
20SRGSW50XG NUT LOCK PLATE 		€0.80
RD 21072 / 10TGD
20SRGSW50XG PINION GEAR 		€0.80
RD 21075 / 10TG7
20SRGSW50XG OSCILLATING GEAR 		€0.80
RD 21078 / 10TG9
20SRGSW50XG OSCILLATING GUIDE 		€0.80
Out-of-Stock
RD 21082 / 10TGJ
20SRGSW50XG BEARING WATER PROOF 		€0.80
RD 21083 / 10TGH
20SRGSW50XG BODY SEAL 		€0.80
RD 21090 / 100XM
20SRGSW50XG BUSHING FOR PINION GEAR REAR 		€0.80
RD 21094 / 10DNS
20SRGSW50XG BAIL ARM 		€0.80
RD 21096 / 10244
20SRGSW50XG REAR PROTECTOR 		€0.80
RD 21097 / 10LHR
TRS M2.6X4 SH NL SCM 		€0.80
Out-of-Stock
RD 21098 / 10L6A
PAN M2.6X9 NL 		€0.80
RD 21099 / 101HW
20SRGSW50XG HANDLE SCREW CAP 		€0.80
RD 21179 / 10HZX
08STLSW5HG S/SPRT B 		€0.80
Out-of-Stock
RD 21180 / 10EZB
O RING SS12 		€0.80
RD 21181 / 100X7
19STLSW80HG LINE ROLLER SEAL 		€0.80
RD 21224 / 10E7A
BB 7X14X5 SUS NMB MADE IN CAMBODIA 		€0.80
RD 21225 / 1008N
SERATRS M3X8 NL SLV 		€0.80
Out-of-Stock
RD 21395 / 10RFU
20STSW50XG HANDLE SHANK ASSY 		☹ This part is not produced anymore
RD 21440 / 10TG1
20SRGSW50XG SPOOL BUSHING 		€0.80
RD 21471 / 100G6
20SRGSW50XG MAIN SHAFT O RING 		€0.80
RD 21653 / 10HEL
05BIO2500 CLICK SPR 		€0.80
Out-of-Stock
