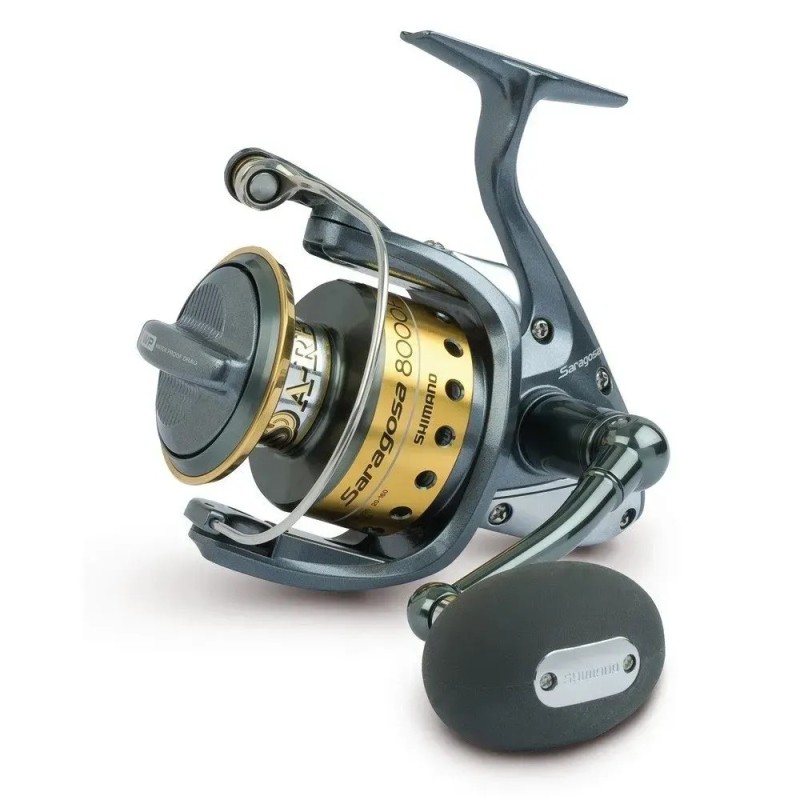

Parts for Shimano SARAGOSA 10000F (2011) reel

Shimano
PARTS-SRG10000F
Find the part you need on the exploded view of the Shimano SARAGOSA 10000F (2011) reel, then order it directly from the list of available parts below.

Description

Identify the spare part(s) of the reel you need, then add them to the cart from the list of available spare parts located below the exploded view of the reel.

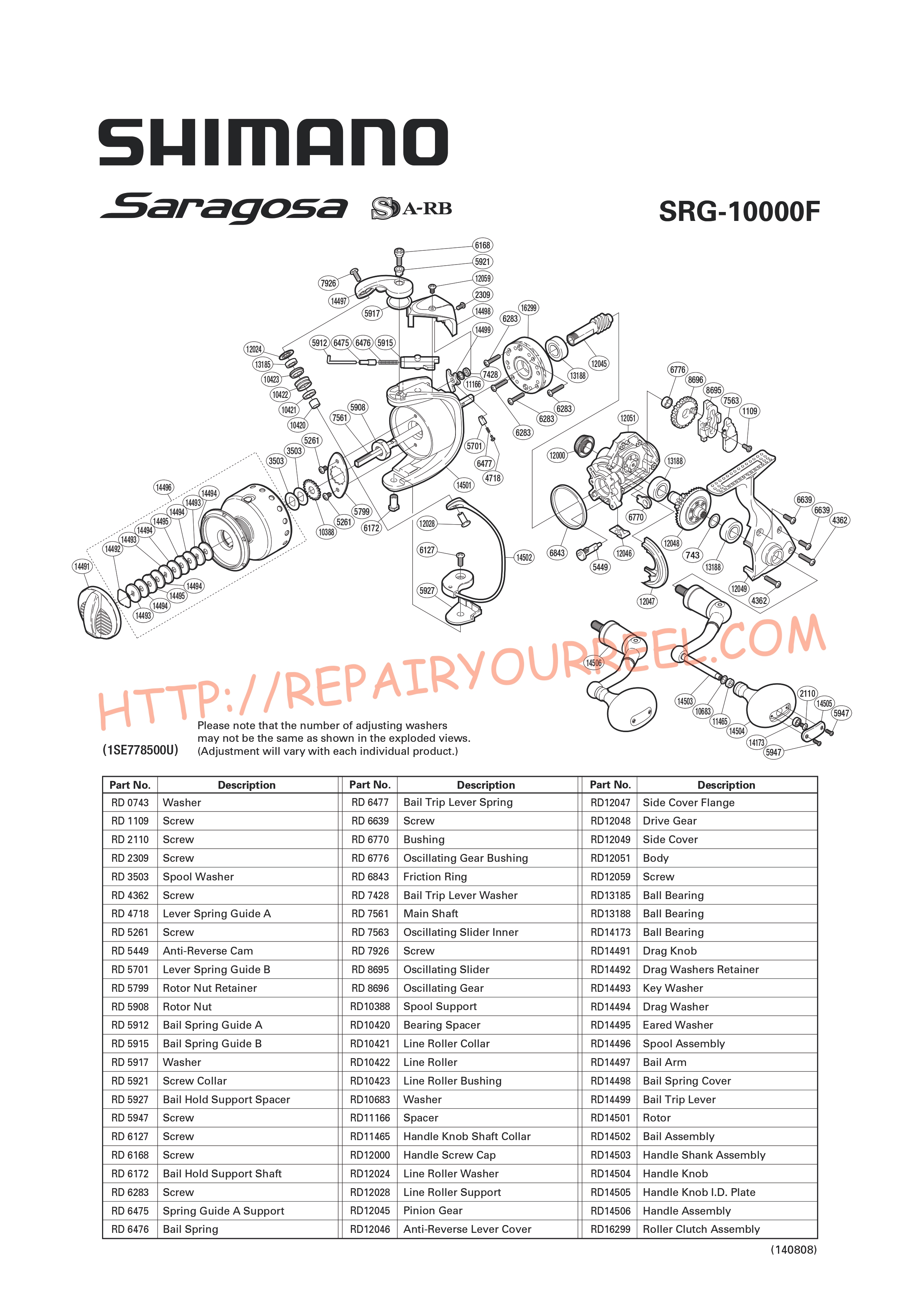

Exploded view of Shimano SARAGOSA 10000F (2011)

Product Details

Shimano Shimano
PARTS-SRG10000F

Data sheet

Type
Spinning
Series
SARAGOSA
Size
10000
Model
SRG10000F
Generation
2011

Available parts for this reel

Old reference Reference Price (Tax Excl.)
RD 0743 10HHL
SL2OSCILLAITING SLIDERW 9X13X0.1 		€0.80
Out-of-Stock
RD 1109 RD1109
Screw 		€0.80
Out-of-Stock
RD 2110, TT 0531, TGT 0729 103E9
SLIDER RETAINER SCREW 		€0.80
Out-of-Stock
RD 2309 103GP
SLIDER RETAINER SCREW 		€0.80
Out-of-Stock
RD 3503 10BXK
STL1000 SPOOL WASHER 		€0.80
RD 4362 RD4362
Screw 		€0.80
Out-of-Stock
RD 4718 RD4718
Lever Spring Guide A 		€0.80
Out-of-Stock
RD 5261 103GX
NUT PLATE SCREW 		€0.80
RD 5449 RD5449
Anti-Reverse Cam 		€0.80
Out-of-Stock
RD 5701 RD5701
Lever Spring Guide B 		€0.80
Out-of-Stock
RD 5799 RD5799
Rotor Nut Retainer 		€0.80
Out-of-Stock
RD 5908 RD5908
Rotor Nut 		€0.80
Out-of-Stock
RD 5912 RD5912
Bail Spring Guide A 		€0.80
Out-of-Stock
RD 5915 RD5915
Bail Spring Guide B 		€0.80
Out-of-Stock
RD 5917 10HDP
BAIL ARM WASHER 		€0.80
RD 5921 RD5921
Screw Collar 		€0.80
Out-of-Stock
RD 5927 RD5927
Bail Hold Support Spacer 		€0.80
Out-of-Stock
RD 5947, TT 0782, TGT 0809 103NH
CLUTCH CAM SCREW 		€0.80
Out-of-Stock
RD 6127 RD6127
Screw 		€0.80
Out-of-Stock
RD 6168 RD6168
Screw 		€0.80
Out-of-Stock
RD 6172 RD6172
Bail Hold Support Shaft 		€0.80
Out-of-Stock
RD 6283 RD6283
Screw 		€0.80
Out-of-Stock
RD 6475 RD6475
Spring Guide A Support 		€0.80
Out-of-Stock
RD 6476 RD6476
Bail Spring 		€0.80
Out-of-Stock
RD 6477 RD6477
Bail Trip Lever Spring 		€0.80
Out-of-Stock
RD 6639 RD6639
Screw 		€0.80
Out-of-Stock
RD 6770 RD6770
Bushing 		€0.80
Out-of-Stock
RD 6776 RD6776
Oscillating Gear Bushing 		€0.80
Out-of-Stock
RD 6843 RD6843
Friction Ring 		€0.80
Out-of-Stock
RD 7428 RD7428
Bail Trip Lever Washer 		€0.80
Out-of-Stock
RD 7561 RD7561
Main Shaft 		€0.80
Out-of-Stock
RD 7563 RD7563
Oscillating Slider Inner 		€0.80
Out-of-Stock
RD 7926 103HN
LINE ROLLER SCREW 		€0.80
Out-of-Stock
RD 8695 RD8695
Oscillating Slider 		€0.80
Out-of-Stock
RD 8696 RD8696
Oscillating Gear 		€0.80
Out-of-Stock
RD 10388 RD10388
Spool Support 		€0.80
Out-of-Stock
RD 10420 RD10420
Bearing Spacer 		€0.80
Out-of-Stock
RD 10421 RD10421
Line Roller Collar 		€0.80
Out-of-Stock
RD 10422 RD10422
Line Roller 		€0.80
Out-of-Stock
RD 10423 RD10423
Line Roller Bushing 		€0.80
Out-of-Stock
RD 10683 10HTT
01CT-200B2 AJST W 		€0.80
Out-of-Stock
RD 11166 RD11166
Spacer 		€0.80
Out-of-Stock
RD 11465 RD11465
Handle Knob Shaft Collar 		€0.80
Out-of-Stock
RD 12000 RD12000
Handle Screw Cap 		€0.80
Out-of-Stock
RD 12024 RD12024
Line Roller Washer 		€0.80
Out-of-Stock
RD 12028 RD12028
Line Roller Support 		€0.80
Out-of-Stock
RD 12045 RD12045
Pinion Gear 		€0.80
Out-of-Stock
RD 12046 RD12046
Anti-Reverse Lever Cover 		€0.80
Out-of-Stock
RD 12047 RD12047
Side Cover Flange 		€0.80
Out-of-Stock
RD 12048 RD12048
Drive Gear 		€0.80
Out-of-Stock
RD 12049 RD12049
Side Cover 		€0.80
Out-of-Stock
RD 12051 RD12051
Body 		€0.80
Out-of-Stock
RD 12059 RD12059
Screw 		€0.80
Out-of-Stock
RD 13185 105BP
BB 5X9X3 ARB NASMADE IN THILAND 		€4.00
RD 13188 10BGD
BALL BEARINGMADE IN THAILAND 9*17*5 SARB 		€6.00
RD 14173 10KX2
BB 4X9X4 ARB NAS MADE IN THAILAND 		€0.80
RD 14491 RD14491
Drag Knob 		€0.80
Out-of-Stock
RD 14492 RD14492
Drag Washers Retainer 		€0.80
Out-of-Stock
RD 14493 RD14493
Key Washer 		€0.80
Out-of-Stock
RD 14494 RD14494
Drag Washer 		€0.80
Out-of-Stock
RD 14495 RD14495
Eared Washer 		€0.80
Out-of-Stock
RD 14496 RD14496
Spool Assembly 		€0.80
Out-of-Stock
RD 14497 RD14497
Bail Arm 		€0.80
Out-of-Stock
RD 14498 RD14498
Bail Spring Cover 		€0.80
Out-of-Stock
RD 14499 RD14499
Bail Trip Lever 		€0.80
Out-of-Stock
RD 14501 RD14501
Rotor 		€0.80
Out-of-Stock
RD 14502 RD14502
Bail Assembly 		€0.80
Out-of-Stock
RD 14503 RD14503
Handle Shank Assembly 		€0.80
Out-of-Stock
RD 14504 RD14504
Handle Knob 		€0.80
Out-of-Stock
RD 14505 RD14505
Handle Knob I.D. Plate 		€0.80
Out-of-Stock
RD 14506 RD14506
Handle Assembly 		€0.80
Out-of-Stock
RD 16299 10QPF
14SRG8SW R/C ASSY 		€12.00
