Parts for Shimano SARAGOSA 14000SWAXG reel
PARTS-SRG14000SWAXG
- New

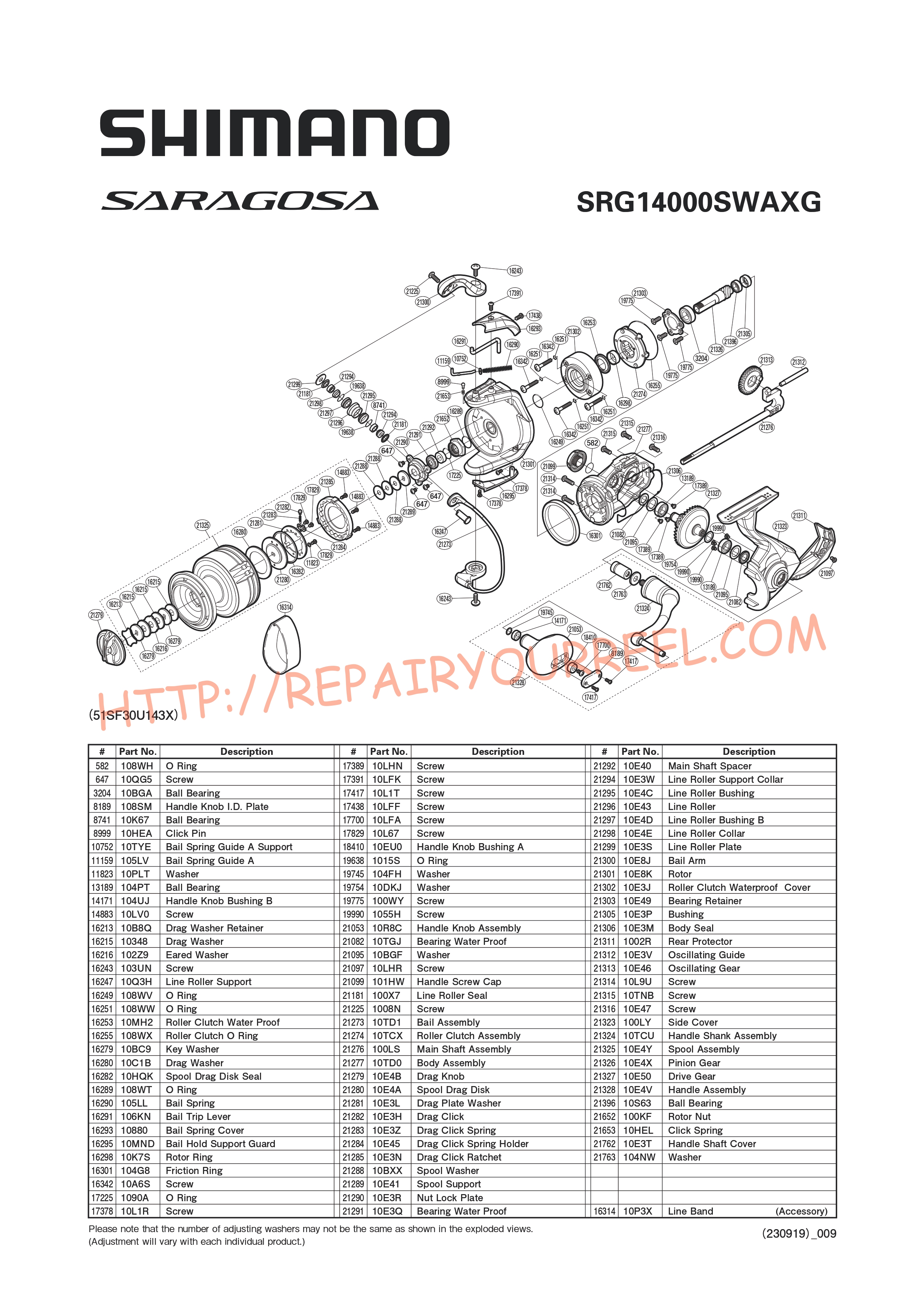

Find the part you need on the exploded view of the Shimano SARAGOSA 14000SWAXG reel, then order it directly from the list of available parts below.
Description
Identify the spare part(s) of the reel you need, then add them to the cart from the list of available spare parts located below the exploded view of the reel.
Product Details
Shimano
PARTS-SRG14000SWAXG
Data sheet
- Type
- Spinning
- Series
- SARAGOSA
- Size
- 14000
- Model
- 14000SWAXG
Available parts for this reel
|
Old reference /
Reference
Name |
Price (Tax Excl.) | |
|---|---|---|
|
RD0582 /
108WH
GTX1200P O RING (SM10) |
€0.80 |
Out-of-Stock
|
|
RD0647 /
10QG5
TRS P2.6X5 |
€0.80 |
Out-of-Stock
|
|
RD10752 /
10TYE
03NAVI2500B/S/GA CLR |
€0.80 |
Out-of-Stock
|
|
RD11158 /
10HEK
03NAVI6 CLICK SPRING |
€0.80 |
Out-of-Stock
|
|
RD11159 /
105LV
03NAVI6000 B/S GD A |
€0.80 |
Out-of-Stock
|
|
RD11823 /
10PLT
08SA6FE D/C COLLAR |
€0.80 |
Out-of-Stock
|
|
RD13189 /
104PT
BALL BEARINGMADE IN THAILAND |
€4.00 |
|
|
RD14171 /
104UJ
08BIO6PG H/K BUSH B |
€0.80 |
Out-of-Stock
|
|
RD14883 /
10LV0
PAN M2X8 NL BL |
€0.80 |
Out-of-Stock
|
|
RD16213 /
10B8Q
14SRG20SW D/W RTNR |
€0.80 |
Out-of-Stock
|
|
RD16215 /
10348
14SRG20SW DRAG WSR |
€4.00 |
|
|
RD16216 /
102Z9
14SRG20SW EARED WSR |
€0.80 |
|
|
RD16243 /
103UN
TRS P3X10 BH SCM |
€0.80 |
Out-of-Stock
|
|
RD16247 /
10Q3H
14SRG20SW L/R SPRT |
€4.00 |
|
|
RD16249 /
108WV
14SRG20SW RTR O RING |
€0.80 |
|
|
RD16251 /
108WW
O RING NOK SS2.5 |
€0.80 |
|
|
RD16253 /
10MH2
14SRG20SW RC W/PROOF |
€0.80 |
|
|
RD16255 /
108WX
14SRG20SW R/C O RING |
€0.80 |
|
|
RD16279 /
10BC9
14SRG8SW KEY WASHER |
€0.80 |
|
|
RD16280 /
10C1B
14SRG8SW DRAG WSR B |
€6.00 |
|
|
RD16282 /
10HQK
14SRG8SW S/D/D SEAL |
€0.80 |
|
|
RD16289 /
108WT
14SRG8SW O RING 12.0 |
€0.80 |
Out-of-Stock
|
|
RD16290 /
105LL
14SRG8SW BAIL SPR |
€0.80 |
Last items in stock
|
|
RD16291 /
106KN
14SRG8SW B/T LEVER |
€0.80 |
Out-of-Stock
|
|
RD16293 /
10880
14SRG8SW B/S COVER |
€4.00 |
|
|
RD16295 /
10MND
14SRG8SW B/H/S GRD |
€0.80 |
Out-of-Stock
|
|
RD16298 /
10K7S
14SRG8SW ROTOR RING |
€4.00 |
Out-of-Stock
|
|
RD16301 /
104G8
14SRG8SW FRCTN RING |
€0.80 |
Out-of-Stock
|
|
RD16314 /
10P3X
02NAVI6PG LINE BAND |
€0.80 |
Out-of-Stock
|
|
RD16342 /
10A6S
14SRG5SW R/C SCREW |
€0.80 |
Out-of-Stock
|
|
RD17225 /
1090A
15ST2500S HANDLE SCREW CAP O RING |
€0.80 |
|
|
RD17378 /
10L1R
PAN P2X5 SCM |
€0.80 |
Out-of-Stock
|
|
RD17389 /
10LHN
TRS P2.6X4 |
€0.80 |
|
|
RD17391 /
10LFK
TRS P2.6X7 SH SCM |
€0.80 |
Out-of-Stock
|
|
RD17417 /
10L1T
PAN P2X6 |
€0.80 |
Out-of-Stock
|
|
RD17438 /
10LFF
TRS P2.6X7 |
€0.80 |
Out-of-Stock
|
|
RD17700 /
10LFA
TRSM2.6X5 SUS NL SPL |
€0.80 |
Out-of-Stock
|
|
RD17829 /
10L67
PAN M2X3 NL SCM |
€0.80 |
Out-of-Stock
|
|
RD18410 /
10EU0
08BIO6PG H/K BUSH A |
€0.80 |
Out-of-Stock
|
|
RD19638 /
1015S
19STLSW10PG O RING 9.5 |
€0.80 |
|
|
RD19745 /
104FH
HANDLE KNOB WASHER SET |
€0.80 |
Out-of-Stock
|
|
RD19754 /
10DKJ
98STL5H DRIVE GEAR WASHER SET |
€4.00 |
Last items in stock
|
|
RD19775 /
100WY
SARA P2.6X5 SH SLV |
€0.80 |
Out-of-Stock
|
|
RD19990 /
1055H
13STLSW5HG B/B SCREW |
€0.80 |
|
|
RD21053 /
10R8C
20SRGSW50XG HANDLE KNOB ASSY |
€6.00 |
Out-of-Stock
|
|
RD21082 /
10TGJ
20SRGSW50XG BEARING WATER PROOF |
€0.80 |
|
|
RD21095 /
10BGF
13STLSW5HG S/C B W |
€0.80 |
|
|
RD21097 /
10LHR
TRS M2.6X4 SH NL SCM |
€0.80 |
Out-of-Stock
|
|
RD21099 /
101HW
20SRGSW50XG HANDLE SCREW CAP |
€0.80 |
Out-of-Stock
|
|
RD21181 /
100X7
19STLSW80HG LINE ROLLER SEAL |
€0.80 |
|
|
RD21225 /
1008N
SERATRS M3X8 NL SLV |
€0.80 |
Out-of-Stock
|
|
RD21273 /
10TD1
20SRGSW80HG BAIL ASSY |
€37.80 |
Out-of-Stock
|
|
RD21274 /
10TCX
20SRGSW80HG ROLLER CLUTCH WITH INNER |
€15.00 |
|
|
RD21276 /
100LS
20SRGSW80HG MAIN SHAFT ASSY |
€20.00 |
Last items in stock
|
|
RD21277 /
10TD0
20SRGSW80HG BODY ASSY |
€32.50 |
Out-of-Stock
|
|
RD21279 /
10E4B
20SRGSW80HG DRAG KNOB ASSY |
€12.00 |
Out-of-Stock
|
|
RD21280 /
10E4A
20SRGSW80HG SPOOL DRAG DISK A |
€4.00 |
Out-of-Stock
|
|
RD21281 /
10E3L
20SRGSW80HG DRAG PLATE WASHER |
€0.80 |
Out-of-Stock
|
|
RD21282 /
10E3H
08STLSW20PG DRAG CLICK |
€0.80 |
Out-of-Stock
|
|
RD21283 /
10E3Z
08STLSW20PG DRAG CLICK SPRING |
€0.80 |
Out-of-Stock
|
|
RD21284 /
10E45
20SRGSW80HG DRAG CLICK SPRING HOLDER |
€0.80 |
Out-of-Stock
|
|
RD21285 /
10E3N
20SRGSW80HG DRAG CLICK RATCHET |
€0.80 |
Out-of-Stock
|
|
RD21288 /
10BXX
14SPSW8HG SPOOL W A |
€0.80 |
Out-of-Stock
|
|
RD21289 /
10E41
20SRGSW80HG SPOOL SUPPORT |
€0.80 |
Out-of-Stock
|
|
RD21290 /
10E3R
20SRGSW80HG NUT LOCK PLATE |
€0.80 |
Out-of-Stock
|
|
RD21291 /
10E3Q
20SRGSW80HG BEARING WATER PROOF |
€0.80 |
|
|
RD21292 /
10E40
20SRGSW80HG MAIN SHAFT SPACER |
€0.80 |
Out-of-Stock
|
|
RD21293 /
10E3Y
20SRGSW80HG ROTOR NUT |
€0.80 |
|
|
RD21294 /
10E3W
19STLSW80HG LINE ROLLER SUPPORT COLLAR |
€0.80 |
|
|
RD21295 /
10E4C
19STLSW10PG LINE ROLLER BUSHING |
€0.80 |
|
|
RD21296 /
10E43
20SRGSW80HG LINE ROLLER |
€4.00 |
Out-of-Stock
|
|
RD21297 /
10E4D
20SRGSW80HG LINE ROLLER BUSHING B |
€0.80 |
|
|
RD21298 /
10E4E
20SRGSW80HG LINE ROLLER COLLAR |
€0.80 |
|
|
RD21299 /
10E3S
20SRGSW80HG LINE ROLLER PLATE |
€0.80 |
|
|
RD21300 /
10E8J
20SRGSW80HG BAIL ARM |
€0.80 |
Out-of-Stock
|
|
RD21301 /
10E8K
20SRGSW80HG ROTOR |
€15.00 |
Out-of-Stock
|
|
RD21302 /
10E3J
20SRGSW80HG R/CLUTCH WATER PROOF COVER |
€0.80 |
Out-of-Stock
|
|
RD21303 /
10E49
20SRGSW80HG BEARING RETAINER |
€0.80 |
Out-of-Stock
|
|
RD21305 /
10E3P
20SRGSW80HG BUSHING FOR PINION GEAR REAR |
€0.80 |
|
|
RD21306 /
10E3M
20SRGSW80HG BODY SEAL |
€4.00 |
|
|
RD21311 /
1002R
20SRGSW80HG REAR PROTECTOR |
€4.00 |
Out-of-Stock
|
|
RD21312 /
10E3V
20SRGSW80HG OSCILLATING GUIDE |
€0.80 |
Out-of-Stock
|
|
RD21313 /
10E46
20SRGSW80HG OSCILLATING GEAR |
€4.00 |
|
|
RD21314 /
10L9U
PAN M3X12 NL SCM |
€0.80 |
Out-of-Stock
|
|
RD21315 /
10TNB
PAN M3X9 SH NL SLV |
€0.80 |
Out-of-Stock
|
|
RD21316 /
10E47
TRS M3X9 SH NL SLV |
€0.80 |
Out-of-Stock
|
|
RD21323 /
100LY
20SRGSW140X SIDE COVER ASSY |
€30.00 |
Out-of-Stock
|
|
RD21324 /
10TCU
20SRGSW140X HANDLE SHANK ASSY |
€0.80 | ☹ This part is not produced anymore |
|
RD21325 /
10E4Y
20SRGSW140X SPOOL ASSY |
€48.60 |
Out-of-Stock
|
|
RD21326 /
10E4X
20SRGSW140X PINION GEAR |
€12.00 |
Last items in stock
|
|
RD21327 /
10E50
20SRGSW140X DRIVE GEAR ASSY |
€20.00 |
Last items in stock
|
|
RD21328 /
10E4V
20SRGSW140X HANDLE ASSY |
€36.00 |
Out-of-Stock
|
|
RD21396 /
10S63
BB 7X11X3 SLD SUS NMB MADE IN CAMBODIA |
€4.00 |
|
|
RD21652 /
100KF
20SRGSW80HG_ROTOR NUT |
€4.00 |
Out-of-Stock
|
|
RD21653 /
10HEL
05BIO2500 CLICK SPR |
€0.80 |
Out-of-Stock
|
|
RD21762 /
10E3T
20SRGSW80HG HANDLE SHAFT COVER B |
€0.80 |
Out-of-Stock
|
|
RD21763 /
104NW
08SRG18000F H/S W A |
€0.80 |
Out-of-Stock
|
|
RD3204 /
10BGA
BALL BEARING(3.41G)MADE IN THAILAND |
€4.00 |
Out-of-Stock
|
|
RD5820 /
105AA
SPACER |
€0.80 |
Out-of-Stock
|
|
RD8189 /
108SM
HANDLE KNOB I.D.PLATE |
€0.80 |
Out-of-Stock
|
|
RD8741 /
10K67
BEARING 5X8X2 A-RB MADE IN CHINA |
€0.80 |
Out-of-Stock
|
|
RD8999 /
10HEA
03NAVI4000 B/A CLICK |
€0.80 |
|
