Shimano SP4000XGSW reel
Shimano SP4000XGSW reel
Shimano SP4000XGSW reel

Parts for Shimano SPHEROS 4000XGSW reel

Shimano
PARTS-SP4000XGSW
  • New
Find the part you need on the exploded view of the Shimano SPHEROS 4000XGSW reel, then order it directly from the list of available parts below.

Description

Identify the spare part(s) of the reel you need, then add them to the cart from the list of available spare parts located below the exploded view of the reel.

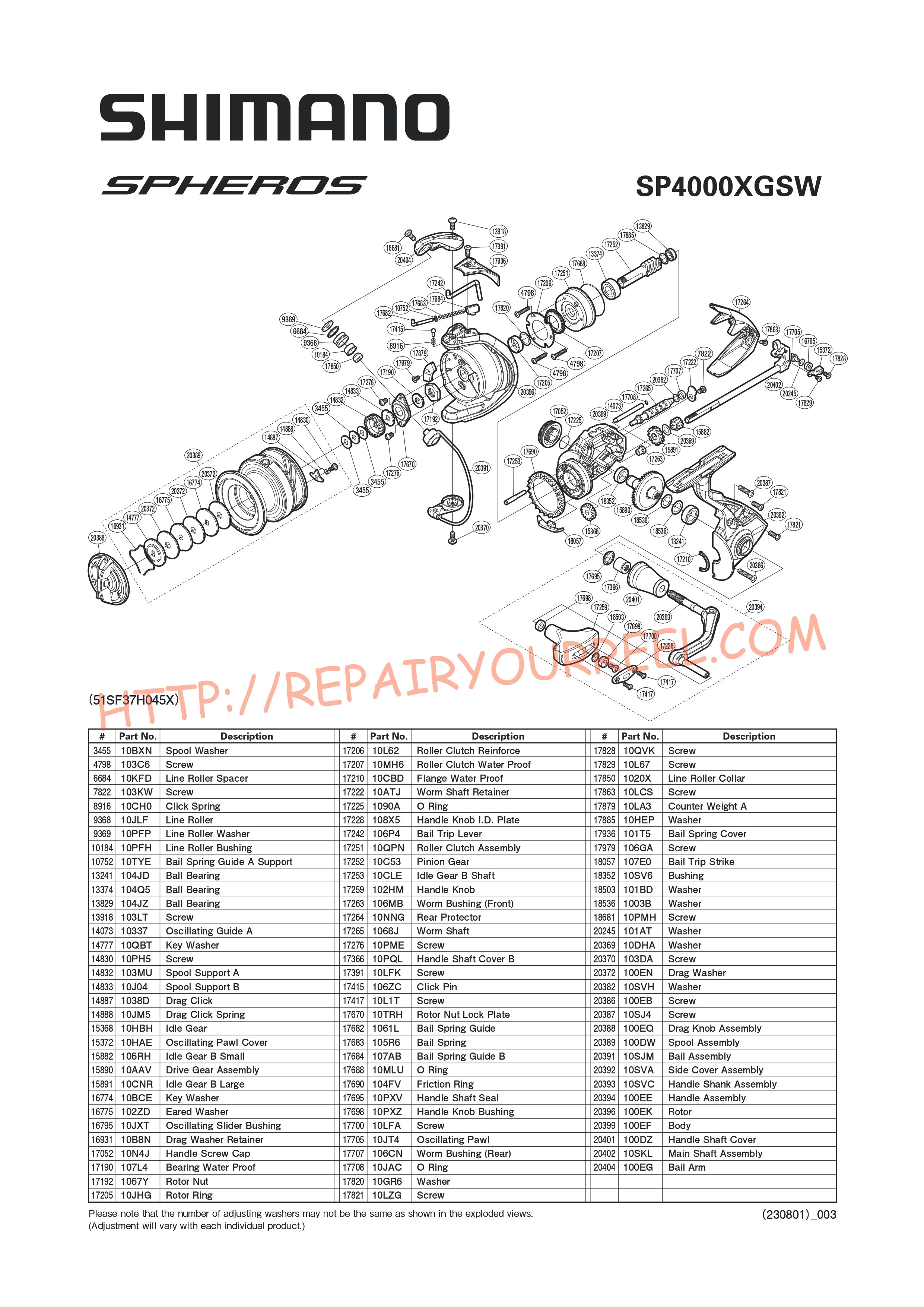

Exploded view of Shimano SPHEROS 4000XGSW

Product Details

Shimano Shimano
PARTS-SP4000XGSW

Data sheet

Type
Spinning
Series
SPHEROS
Size
4000
Model
4000XGSW

Available parts for this reel

Old reference / Reference
Name 		Price (Tax Excl.)
RD10184 / 10PFH
99NAVI1 RLR BSINGSCM 		€0.80
Out-of-Stock
RD13241 / 104JD
BALL BEARING MADE IN CAMBODIA 		€0.80
Out-of-Stock
RD13918 / 103LT
TRS P2.6X10 BH BKSCM 		€0.80
Out-of-Stock
RD14073 / 10337
10NS2500 OSC GUIDE 		€0.80
Out-of-Stock
RD14777 / 10QBT
11BIO2500 KEY WSR B 		€0.80
Out-of-Stock
RD14830 / 10PH5
08BIO1000 D/C SCREW 		€0.80
Out-of-Stock
RD14832 / 103MU
12STR1FD SPOL SPRT A 		€0.80
Out-of-Stock
RD14833 / 10J04
12STR1FD SPOL SPRT B 		€0.80
Out-of-Stock
RD14887 / 1038D
12STR4FD DRAG CLICK 		€0.80
Out-of-Stock
RD14888 / 10JM5
12STR4FD D/C SPRING 		€0.80
Out-of-Stock
RD15368 / 10HBH
13AERO4SPFA IDLEGEAR 		€0.80
Out-of-Stock
RD15372 / 10HAE
13AERO4SPFA O/P CVR 		€0.80
Out-of-Stock
RD15882 / 106RH
13ARC4000 I/GEAR B S 		€0.80
Out-of-Stock
RD15890 / 10AAV
13ARC4XG D/G ASSY 		€0.80
Out-of-Stock
RD15891 / 10CNR
13ARC4XG I/GEAR B L 		€0.80
Out-of-Stock
RD16774 / 10BCE
14AERO25HF KEY WASHER 		€0.80
Out-of-Stock
RD16775 / 102ZD
14AERO25HF EARED WASHER 		€0.80
Out-of-Stock
RD16795 / 10JXT
14AERO25HF OSCILLATING SLIDER BUSHING 		€0.80
Out-of-Stock
RD16931 / 10B8N
14ARC5XG D/W RTNR 		€0.80
Out-of-Stock
RD17052 / 10N4J
15TPSW5000HG HANDLE SCREW CAP 		€0.80
Out-of-Stock
RD17190 / 107L4
15TP2500S BEARING WATER PROOF 		€0.80
Last items in stock
RD17192 / 1067Y
15TP2500S ROTOR NUT 		€0.80
Out-of-Stock
RD17205 / 10JHG
15TP2500S ROTOR RING 		€0.80
Out-of-Stock
RD17206 / 10L62
15TP2500S ROLLER CLUTCH REINFORCE 		€0.80
Out-of-Stock
RD17207 / 10MH6
15TP2500S ROLLER CLUTCH WATER PROOF 		€0.80
Out-of-Stock
RD17210 / 10CBD
15ST2500S FLANGE WATER PROOF 		€0.80
RD17222 / 10ATJ
15ST2500S WORM SHAFT RETAINER 		€0.80
Out-of-Stock
RD17228 / 108X5
15STC3000 HANDLE KNOB ID PLATE 		€0.80
Out-of-Stock
RD17242 / 106P4
15TP4000PG BAIL TRIP LEVER 		€0.80
Out-of-Stock
RD17251 / 10QPN
15ST4000 ROLLER CLUTCH ASSY 		€0.80
Out-of-Stock
RD17252 / 10C53
15ST4XGM PINION GEAR 		€0.80
Out-of-Stock
RD17253 / 10CLE
15ST4000 IDLE GEAR B SHAFT 		€0.80
Out-of-Stock
RD17259 / 102HM
12GP300G HANDLE KNOB 		€0.80
Out-of-Stock
RD17263 / 106MB
15ST4000 WORM BUSHING F 		€0.80
Out-of-Stock
RD17264 / 10NNG
15ST4000 REAR PROTECTOR 		€0.80
Out-of-Stock
RD17265 / 1068J
15ST4000 WORM SHAFT 		€4.00
Last items in stock
RD17276 / 10PME
SERATRS P2.6X4 SH SCM 		€0.80
Out-of-Stock
RD17366 / 10PQL
15SEPSSC3S HANDLE SHAFT COVER B 		€0.80
Out-of-Stock
RD17670 / 10TRH
16VQ2500S NUT LOCK PLATE 		€0.80
Out-of-Stock
RD17682 / 1061L
14STL4000 BAIL SPRING GUIDE 		€0.80
Out-of-Stock
RD17683 / 105R6
14STL4000 BAIL SPRING 		€0.80
Out-of-Stock
RD17684 / 107AB
14STL4000 BAIL SPRING GUIDE B 		€0.80
Out-of-Stock
RD17688 / 10MLU
14STL2500 O RING 		€0.80
Out-of-Stock
RD17690 / 104FV
07STL25 FRCTIN RING 		€0.80
Out-of-Stock
RD17695 / 10PXV
14STL2500 HANDLE SHAFT SEAL 		€0.80
Out-of-Stock
RD17698 / 10PXZ
09ULT2500 H/K BUSH B 		€0.80
Out-of-Stock
RD17705 / 10JT4
02BIO25 OCLTNG PAWL 		€0.80
Out-of-Stock
RD17707 / 106CN
01BBXTEC5 WORM BUSH R 		€0.80
Out-of-Stock
RD17708 / 10JAC
14STL25 O RING SS015 		€0.80
Out-of-Stock
RD17820 / 10GR6
SL1 WASHER 7X10X0.3 		€0.80
Out-of-Stock
RD17821 / 10LZG
PAN TF2.6X8 SLV 		€0.80
Out-of-Stock
RD17850 / 1020X
16NAS2500FB LINE ROLLER COLLAR 		€0.80
Out-of-Stock
RD17879 / 10LA3
SRA P2X4 SCM 		€0.80
Out-of-Stock
RD17885 / 10HEP
WASHER 5.2X6.7X0.1 		€0.80
Out-of-Stock
RD17936 / 101T5
16NAS4FB BAIL SPRING COVER 		€0.80
Out-of-Stock
RD17979 / 106GA
13SH1000FE CTR WT A 		€0.80
Out-of-Stock
RD18057 / 107E0
08STL25FD B/T STRIKE 		€0.80
Out-of-Stock
RD18352 / 10SV6
17SE8000 BUSHING(FORPINION GEAR) 		€0.80
Out-of-Stock
RD18536 / 1003B
SL1 DRIVE GEAR ADJ WASHER 		€0.80
Out-of-Stock
RD18681 / 10PMH
TRS M2.6X7 SER BKSCM 		€0.80
Out-of-Stock
RD20245 / 101AT
TPGT2 OSCILATING PAWL SPACER SET A 		€0.80
Out-of-Stock
RD20369 / 10DHA
15ST2500S IDLE GEAR B ADJ WASHER SET 		€0.80
Out-of-Stock
RD20370 / 103DA
TRS P2.6X7 BH BK SCM 		€0.80
Out-of-Stock
RD20372 / 100EN
19SPC30HG DRAG WASHER 		€0.80
Out-of-Stock
RD20382 / 10SVH
19SP30XG WORM SHAFT WASHER SET 		€0.80
Out-of-Stock
RD20386 / 100EB
PAN TF3X15 BO 		€0.80
Out-of-Stock
RD20387 / 10SJ4
PAN TF3X12 BK 		€0.80
Out-of-Stock
RD20388 / 100EQ
19SP40XG DRAG KNOB ASSY 		€0.80
Out-of-Stock
RD20389 / 100DW
19SP40XG SPOOL ASSY 		€0.80
Out-of-Stock
RD20391 / 10SJM
19SP40XG BAIL ASSY 		€0.80
Out-of-Stock
RD20392 / 10SVA
19SP40XG SIDE COVER ASSY 		€0.80
Out-of-Stock
RD20393 / 10SVC
19SP40XG HANDLE SHANK ASSY 		€0.80
Out-of-Stock
RD20394 / 100EE
19SP40XG HANDLE ASSY 		€0.80
Out-of-Stock
RD20396 / 100EK
19SP40XG ROTOR 		€0.80
Out-of-Stock
RD20399 / 100EF
19SP40XG BODY 		€0.80
Out-of-Stock
RD20401 / 100DZ
19SP40XG HANDLE SHAFT COVER 		€0.80
Out-of-Stock
RD20402 / 10SKL
17ULT4000 MAIN SHAFT ASSY 		€0.80
Out-of-Stock
RD20404 / 100EG
19SP40XG BAIL ARM 		€0.80
Out-of-Stock
RD3455 / 10BXN
92BIO1000 SPOOL WASHER 		€0.80
Out-of-Stock
RD4798 / 103C6
TRS 2X14.5 P 		€0.80
Out-of-Stock
RD6684 / 10KFD
99NAVI1 LINE ROLLER SPACER 		€0.80
Out-of-Stock
RD7822 / 103KW
WORM SHAFT RETAINER SCREW 		€0.80
Out-of-Stock
RD8916 / 10CH0
01BBX TECH 3000 CLICK SPRING 		€0.80
Out-of-Stock
RD9368 / 10JLF
05NEX1RA LINE RLRSCM 		€0.80
Out-of-Stock
RD9369 / 10PFP
05NEX1RA L/R WASHER 		€0.80
Out-of-Stock
