Parts for Shimano Tiagra 80WA reel

Shimano
PARTS-TI80WA
Find the part you need on the exploded view of the Shimano Tiagra 80WA reel, then order it directly from the list of available parts below.

Description

Identify the spare part(s) of the reel you need, then add them to the cart from the list of available spare parts located below the exploded view of the reel.

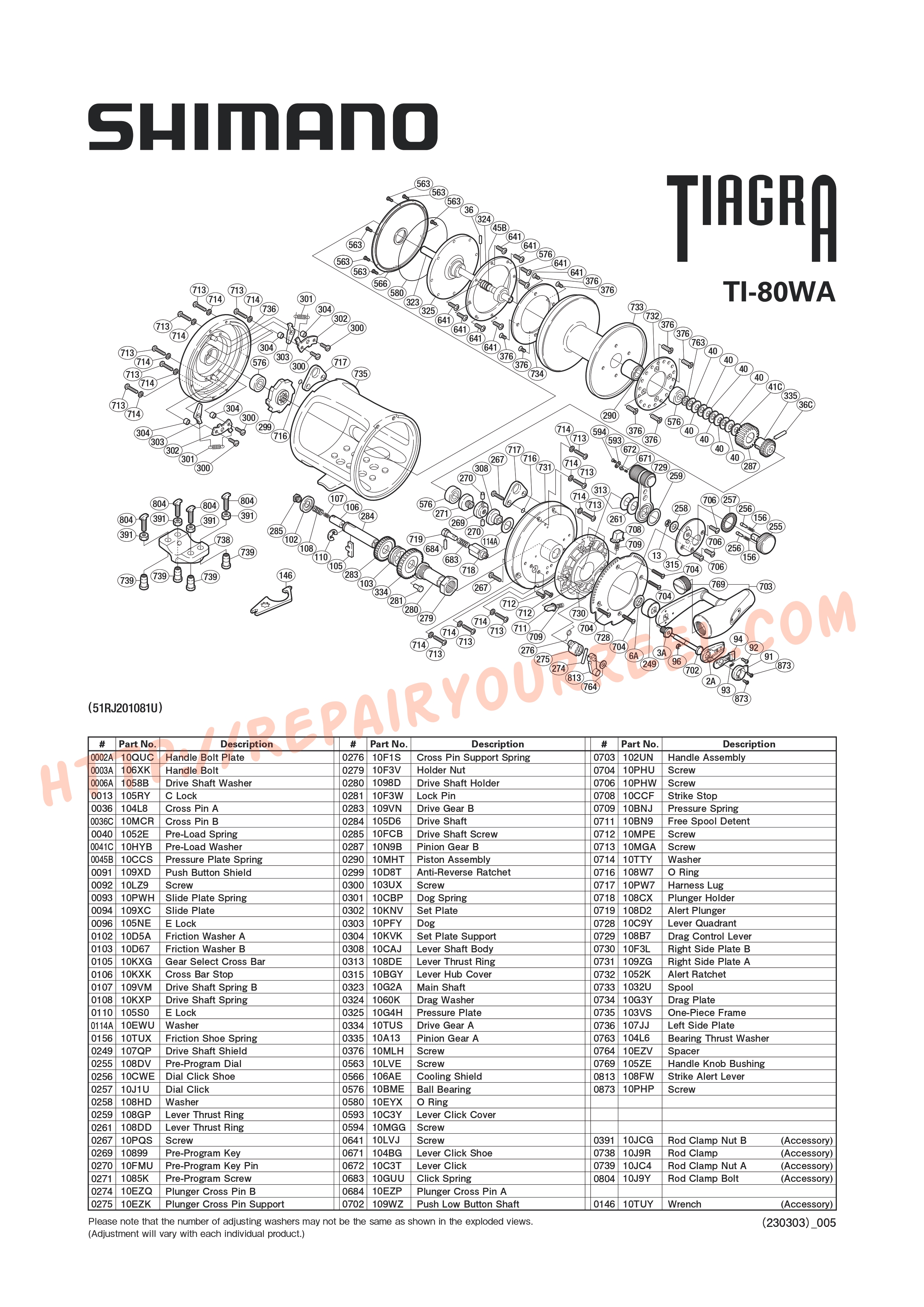

Exploded view of Shimano Tiagra 80WA

Product Details

Shimano Shimano
PARTS-TI80WA

Data sheet

Type
Trolling
Series
Tiagra
Size
80
Model
80WA

Available parts for this reel

Old reference / Reference
Name 		Price (Tax Excl.)
TT0002A / 10QUC
HANDLE BOLT PLATE 		€0.80
TT0003A / 106XK
HANDLE BOLT 		€4.00
Last items in stock
TT0006A / 1058B
TBM-2/3 GEAR SHAFT THRUST WASHER 		€0.80
TT0013 / 105RY
C LOCK 		€0.80
TT0036 / 104L8
CROSS PIN 		€0.80
Out-of-Stock
TT0036C / 10MCR
CROSS PIN (B) 		€4.00
Out-of-Stock
TT0040 / 1052E
DRAG SPRING WASHER (H) 		€0.80
TT0041C / 10HYB
INNER PRE LOAD WASHER 		€0.80
TT0042 / 104L5
BEARING THRUST WASHER 		€0.80
Out-of-Stock
TT0045B / 10CCS
PRESSURE PLATE SPRING 		€0.80
TT0091 / 109XD
PUSH BUTTON SHIELD 		€0.80
Out-of-Stock
TT0092 / 10LZ9
HANDLE BOLT PLATE SCREW 		€0.80
TT0093 / 10PWH
SLIDE PLATE SPRING 		€0.80
TT0094 / 109XC
SLIDE PLATE 		€0.80
Out-of-Stock
TT0096 / 105NE
LEVER SHAFT RETAINER 		€0.80
Out-of-Stock
TT0102 / 10D5A
FRICTION WASHER (A) 		€0.80
TT0103 / 10D67
FRICTION WASHER (B) 		€0.80
TT0105 / 10KXG
GEAR SELECT CROSS BAR 		€9.00
Last items in stock
TT0106 / 10KXK
CROSS BAR STOP 		€0.80
TT0107 / 109VM
DRIVE SHAFT SPRING B 		€0.80
TT0108 / 10KXP
DRIVE SHAFT SPRING 		€0.80
Out-of-Stock
TT0110 / 105S0
E LOCK 		€0.80
Out-of-Stock
TT0114A / 10EWU
LEVER SHAFT BODY WASHER 		€0.80
TT0146 / 10TUY
WRENCH 		€0.80
Out-of-Stock
TT0156 / 10TUX
FRICTION SHOE SPRING 		€0.80
Out-of-Stock
TT0186 / 104H3
T-300 CLICK PAWL SPACER 		€0.80
Last items in stock
TT0249 / 107QP
DRIVE SHAFT SHIELD 		€6.00
Out-of-Stock
TT0255 / 108DV
PRE PROGRAM DIAL 		€4.00
Out-of-Stock
TT0256 / 10CWE
DIAL CLICK SHOE 		€0.80
TT0257 / 10J1U
DIAL CLICK 		€0.80
TT0258 / 108HD
DIAL WASHER 		€0.80
TT0259 / 108GP
LEVER THRUST RING A 		€0.80
Out-of-Stock
TT0261 / 108DD
LEVER THRUST RING B-1 		€0.80
TT0267 / 10PQS
SIDE PLATE SCREW 		€0.80
TT0269 / 10899
PRE PROGRAM KEY 		€6.00
Out-of-Stock
TT0270 / 10FMU
PRE PROGRAM KEY PIN 		€0.80
TT0271 / 1085K
PRE PROGRAM SCREW 		€4.00
Out-of-Stock
TT0274 / 10EZQ
PLUNGER CROSS PIN (B) 		€0.80
TT0275 / 10EZK
PLUNGER CROSS PIN SUPPORT 		€0.80
TT0276 / 10F1S
CROSS PIN SUPPORT SPRING 		€0.80
TT0279 / 10F3V
HOLDER NUT 		€4.00
Last items in stock
TT0280 / 1098D
DRIVE SHAFT HOLDER 		€15.00
Out-of-Stock
TT0281 / 10F3W
LOCK PIN 		€0.80
TT0282 / 10Q9Y
DRIVE GEAR (A) 		€15.00
Last items in stock
TT0283 / 109VN
DRIVE GEAR (B) 		€15.00
Out-of-Stock
TT0284 / 105D6
DRIVE SHAFT 		€20.00
Out-of-Stock
TT0285 / 10FCB
DRIVE SHAFT SCREW 		€0.80
Out-of-Stock
TT0287 / 10N9B
PINION GEAR (B) 		€12.00
TT0290 / 10MHT
PISTON ASSEMBLY 		€17.50
Out-of-Stock
TT0299 / 10D8T
ANTI-REVERSE RATCHET 		€6.00
Out-of-Stock
TT0300 / 103UX
SET PLATE SCREW 		€0.80
Out-of-Stock
TT0301 / 10CBP
DOG SPRING 		€0.80
TT0302 / 10KNV
SET PLATE 		€0.80
TT0303 / 10PFY
DOG 		€0.80
TT0304 / 10KVK
SET PLATE SUPPORT 		€0.80
TT0308 / 10CAJ
LEVER SHAFT BODY 		€6.00
Last items in stock
TT0313 / 108DE
50W LEVER THRUST RING B-2 		€0.80
TT0315 / 10BGY
LEVER HUB COVER 		€6.00
Out-of-Stock
TT0323 / 10G2A
MAIN SHAFT 		€4.00
Last items in stock
TT0324 / 1060K
DRAG WASHER 		€22.50
Last items in stock
TT0325 / 10G4H
PRESSURE PLATE 		€20.00
Last items in stock
TT0334 / 10TUS
DRIVE GEAR (A) 		€15.00
Last items in stock
TT0335 / 10A13
PINION GEAR (A) 		€9.00
Last items in stock
TT0343 / 10PHN
PUSH BUTTON SHIELD SCREW TO TT0873 		€0.80
Out-of-Stock
TT0376 / 10MLH
DRAG PLATE SCREW 		€0.80
TT0391 / 10JCG
ROD CLAMP NUT (B) 		€0.80
TT0563 / 10LVE
CLICK PLATE SCREW 		€0.80
TT0566 / 106AE
COOLING SHIELD (NEW) 		€20.00
Last items in stock
TT0576 / 10BME
BALL BEARING(10.87G) MADE IN THAILAND 		€9.00
TT0580 / 10EYX
TI80W O RING (A) 		€4.00
TT0593 / 10C3Y
03TI-16 LEVER CLICK COVER 		€0.80
TT0594 / 10MGG
LEVER CLICK COVER SCREW 		€0.80
TT0641 / 10LVJ
COOLING SHIELD SCREW 		€0.80
TT0671 / 104BG
YOKE SPRING 		€0.80
TT0672 / 10C3T
05TS30 LEVER CLICK 		€0.80
Out-of-Stock
TT0683 / 10GUU
50W CLICK SPRING 		€0.80
TT0684 / 10EZP
STAINLESS PARALLEL PIN 2.5D*14L 		€0.80
TT0702 / 109WZ
50W PUSH ROD 		€6.00
Last items in stock
TT0703 / 102UN
05TI50A HANDLE ASSY 		€36.00
TT0704 / 10PHU
MARUSRA SCREW M3.5X20 LL 		€0.80
TT0706 / 10PHW
MARUSRA SCREW M3.5X30 LL 		€0.80
TT0708 / 10CCF
50W SCREW SHIELD A 		€0.80
TT0709 / 10BNJ
50W PRESSURE SPRING 		€0.80
Out-of-Stock
TT0711 / 10BN9
50W FREE SPOOL DETENT B 		€0.80
TT0712 / 10MPE
OSCILLATING SLIDER SCREW 		€0.80
TT0713 / 10MGA
50W EX M3.5X22 		€0.80
TT0714 / 10TTY
HANDLE SCREW LOCK WASHER 		€0.80
TT0716 / 108W7
50W O RING(S -3) 		€0.80
TT0717 / 10PW7
50W HARNESS 		€6.00
Last items in stock
TT0718 / 108CX
50W CLICK SHAFT SPACER 		€9.00
Last items in stock
TT0719 / 108D2
50W CLICK SHAFT 		€6.00
Last items in stock
TT0728 / 10C9Y
05TI80WA LVR QDRNT 		€22.50
Last items in stock
TT0729 / 108B7
05TI80WA D/C LEVER 		€22.50
Last items in stock
TT0730 / 10F3L
05TI80WA A SIDE P B 		€30.00
Last items in stock
TT0731 / 109ZG
05TI80WA A SIDE PLT 		€41.40
Out-of-Stock
TT0732 / 1052K
80W CLICK PLATE 		€4.00
TT0733 / 1032U
05TI80WA SPOOL ASSY 		€68.40
Out-of-Stock
TT0734 / 10G3Y
80W DRAG WASHER 		€4.00
TT0735 / 103VS
05TI80WA FRAME ASSY 		€84.60
Out-of-Stock
TT0736 / 107JJ
05TI80WA B-S/P ASSY 		€45.00
Out-of-Stock
TT0738 / 10J9R
80W ROD CLAMP 		€9.00
Last items in stock
TT0739 / 10JC4
80W ROD CLAMP NUT (A) 		€0.80
TT0763 / 104L6
05TI50A B/T WASHER A 		€0.80
Last items in stock
TT0764 / 10EZV
50W CLICK LEVER W A 0.5 		€0.80
TT0769 / 105ZE
05TI20A H/K BUSHING 		€6.00
Out-of-Stock
TT0804 / 10J9Y
80W R/C BOLT SUS 		€4.00
TT0813 / 108FW
80W S/A LVR ASSY SUS 		€4.00
TT0873 / 10PHP
BND M2.6X9 RP 		€0.80
Out-of-Stock
