Shimano TI20A reel
Shimano TI20A reel
Shimano TI20A reel

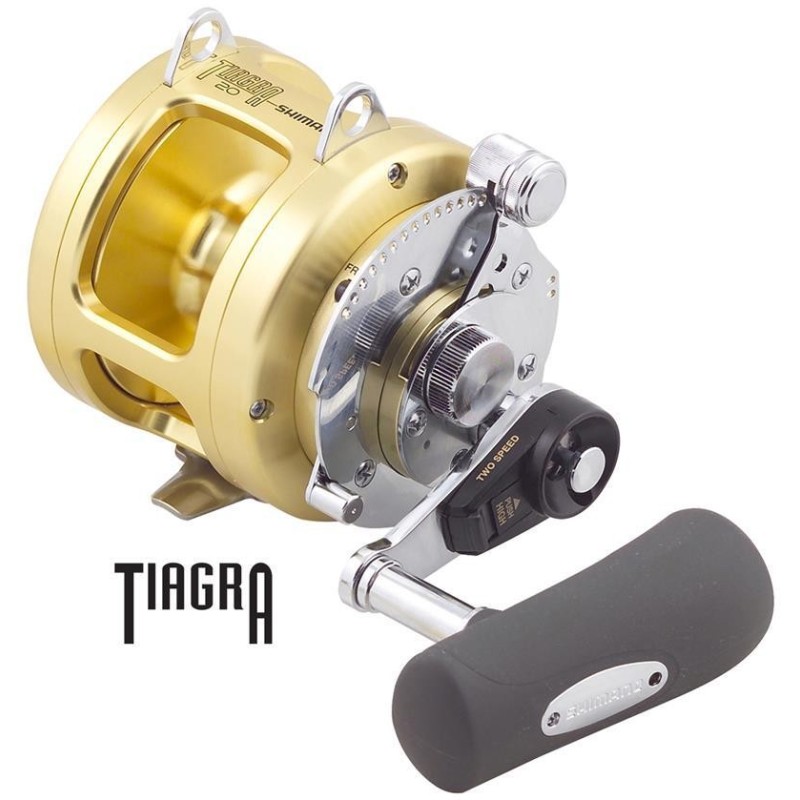

Parts for Shimano Tiagra 20A reel

Shimano
PARTS-TI20A
Find the part you need on the exploded view of the Shimano Tiagra 20A reel, then order it directly from the list of available parts below.

Description

Identify the spare part(s) of the reel you need, then add them to the cart from the list of available spare parts located below the exploded view of the reel.

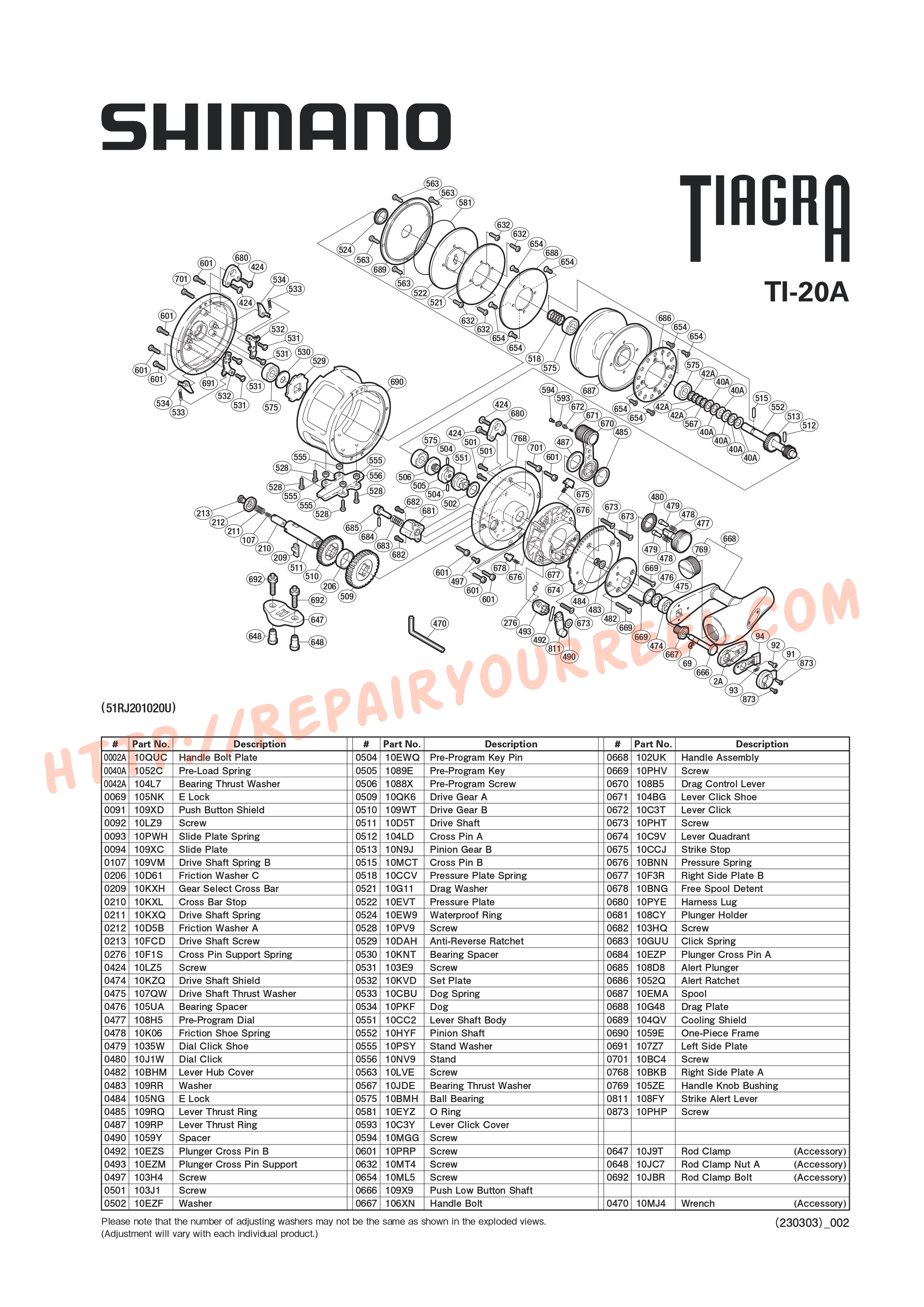

Exploded view of Shimano Tiagra 20A

Product Details

Shimano Shimano
PARTS-TI20A

Data sheet

Type
Trolling
Series
Tiagra
Size
20
Model
20A

Available parts for this reel

Old reference / Reference
Name 		Price (Tax Excl.)
TT0002A / 10QUC
HANDLE BOLT PLATE 		€0.80
TT0040A / 1052C
CONED DISC SPRING 		€0.80
TT0042A / 104L7
BEARING THRUST WASHER 		€0.80
Out-of-Stock
TT0069 / 105NK
E LOCK 		€0.80
Out-of-Stock
TT0091 / 109XD
PUSH BUTTON SHIELD 		€0.80
Out-of-Stock
TT0092 / 10LZ9
HANDLE BOLT PLATE SCREW 		€0.80
TT0093 / 10PWH
SLIDE PLATE SPRING 		€0.80
TT0094 / 109XC
SLIDE PLATE 		€0.80
Out-of-Stock
TT0107 / 109VM
DRIVE SHAFT SPRING B 		€0.80
TT0206 / 10D61
FRICTION WASHER (C) 		€0.80
TT0209 / 10KXH
GEAR SELECT CROSS BAR 		€12.00
Out-of-Stock
TT0210 / 10KXL
CROSS BAR STOP 		€4.00
Out-of-Stock
TT0211 / 10KXQ
DRIVE SHAFT SPRING 		€0.80
TT0212 / 10D5B
FRICTION WASHER (A) 		€0.80
Out-of-Stock
TT0213 / 10FCD
DRIVE SHAFT SCREW 		€4.00
Last items in stock
TT0276 / 10F1S
CROSS PIN SUPPORT SPRING 		€0.80
TT0343 / 10PHN
PUSH BUTTON SHIELD SCREW TO TT0873 		€0.80
Out-of-Stock
TT0424 / 10LZ5
LEFT SIDE PLATE SCREW 		€0.80
TT0470 / 10MJ4
WRENCH 		€4.00
Out-of-Stock
TT0474 / 10KZQ
DRIVE SHAFT SHIELD 		€4.00
Out-of-Stock
TT0475 / 107QW
DRIVE SHAFT THRUST WASHER 		€0.80
TT0476 / 105UA
BEARING SPACER 		€0.80
Last items in stock
TT0477 / 108H5
01TI30PRE-PRGRM DIAL 		€4.00
Out-of-Stock
TT0478 / 10K06
FRICTION SHOE SPRING 		€0.80
TT0479 / 1035W
DIAL CLICK SHOE 		€0.80
Out-of-Stock
TT0480 / 10J1W
DIAL CLICK 		€0.80
Out-of-Stock
TT0482 / 10BHM
LEVER HUB COVER 		€9.00
Last items in stock
TT0483 / 109RR
01TI-30 DIAL WASHER 		€0.80
Out-of-Stock
TT0484 / 105NG
E LOCK 		€0.80
TT0485 / 109RQ
01TI-30 LEVER THRUST RING (B) 		€0.80
Out-of-Stock
TT0487 / 109RP
01TI-30 LEVER THRUST RING (A) 		€0.80
Out-of-Stock
TT0490 / 1059Y
SPACER 		€0.80
Out-of-Stock
TT0492 / 10EZS
PLUNGER CROSS PIN (B) 		€0.80
TT0493 / 10EZM
PLUNGER CROSS PINSUPPORT 		€0.80
TT0497 / 103H4
DRIVE SHAFT HOLDER SCREW 		€0.80
Out-of-Stock
TT0501 / 103J1
TRIGGER SCREW 		€0.80
TT0502 / 10EZF
LEVER SHAFT BODY WASHER 		€0.80
Out-of-Stock
TT0504 / 10EWQ
PRE-PROGRAM KEY PIN 		€0.80
Out-of-Stock
TT0505 / 1089E
PRE-PROGRAM KEY 		€4.00
Last items in stock
TT0506 / 1088X
PRE-PROGRAM SCREW 		€4.00
Last items in stock
TT0509 / 10QK6
DRIVE GEAR (A) 		€15.00
Last items in stock
TT0510 / 109WT
DRIVE GEAR (B) 		€15.00
Last items in stock
TT0511 / 10D5T
DRIVE SHAFT 		€17.50
Out-of-Stock
TT0512 / 104LD
CROSS PIN (A) 		€0.80
Out-of-Stock
TT0513 / 10N9J
PINION GEAR (B) 		€9.00
Last items in stock
TT0515 / 10MCT
CROSS PIN (B) 		€0.80
TT0518 / 10CCV
PRESSURE PLATE SPRING 		€0.80
TT0521 / 10G11
DRAG WASHER 		€15.00
Out-of-Stock
TT0522 / 10EVT
PRESSURE PLATE 		€9.00
Last items in stock
TT0524 / 10EW9
WATERPROOF RING 		€0.80
TT0528 / 10PV9
STAND SCREW 		€0.80
TT0529 / 10DAH
ANTI-REVERSE RATCHET 		€0.80
Out-of-Stock
TT0530 / 10KNT
BEARING SPACER 		€0.80
Out-of-Stock
TT0531 / 103E9
SLIDER RETAINER SCREW 		€0.80
Out-of-Stock
TT0532 / 10KVD
SET PLATE 		€0.80
TT0533 / 10CBU
DOG SPRING 		€0.80
TT0534 / 10PKF
DOG 		€0.80
TT0551 / 10CC2
LEVER SHAFT BODY 		€9.00
Out-of-Stock
TT0552 / 10HYF
PINION SHAFT 		€15.00
Out-of-Stock
TT0555 / 10PSY
STAND WASHER 		€0.80
Out-of-Stock
TT0556 / 10NV9
STAND 		€4.00
Last items in stock
TT0563 / 10LVE
CLICK PLATE SCREW 		€0.80
TT0567 / 10JDE
BEARING THRUST WASHER (B) 		€0.80
Out-of-Stock
TT0575 / 10BMH
BALL BEARING(6.46G) MADE IN JAPAN 		€6.00
TT0581 / 10EYZ
O RING (A) 		€0.80
Out-of-Stock
TT0593 / 10C3Y
03TI-16 LEVER CLICK COVER 		€0.80
TT0594 / 10MGG
LEVER CLICK COVER SCREW 		€0.80
TT0601 / 10PRP
RIGHT SIDE PLATE SCREW 		€0.80
TT0632 / 10MT4
DRAG WASHER SCREW 		€0.80
TT0647 / 10J9T
ROD CLAMP 		€0.80
Out-of-Stock
TT0648 / 10JC7
ROD CLAMPNUT (A) 		€0.80
Out-of-Stock
TT0654 / 10ML5
DRAG PLATE SCREW 		€0.80
Out-of-Stock
TT0666 / 109X9
05TI20A PSH L/B SHFT 		€4.00
Out-of-Stock
TT0667 / 106XN
05TI20A HANDLE BOLT 		€4.00
Out-of-Stock
TT0668 / 102UK
05TI20A HANDLE ASSY 		€36.80
Last items in stock
TT0669 / 10PHV
MARUSRA SCREW M3.5X23.5 NK 		€0.80
TT0670 / 108B5
05TI20A D/C LEVERASY 		€22.50
Out-of-Stock
TT0671 / 104BG
YOKE SPRING 		€0.80
TT0672 / 10C3T
05TS30 LEVER CLICK 		€0.80
Out-of-Stock
TT0673 / 10PHT
MARUSRA SCREW M3.5X15.5 NK 		€0.80
Out-of-Stock
TT0674 / 10C9V
05TI20A LEVER QDRNT 		€12.00
Out-of-Stock
TT0675 / 10CCJ
01TI-30 SCREW SHIELD A 		€0.80
TT0676 / 10BNN
01TI30 PRESSURE SPRING 		€0.80
Out-of-Stock
TT0677 / 10F3R
05TI30A A SIDE PLT B 		€9.00
Out-of-Stock
TT0678 / 10BNG
01TI-30 FREE SPOOL DETENT B 		€0.80
Out-of-Stock
TT0680 / 10PYE
01TI-30 HARNESS LUG 		€4.00
TT0681 / 108CY
01TI-30 CLICK SHAFT SPACER 		€0.80
Out-of-Stock
TT0682 / 103HQ
TRS SCREW M3X8 NK 		€0.80
TT0683 / 10GUU
50W CLICK SPRING 		€0.80
TT0684 / 10EZP
STAINLESS PARALLEL PIN 2.5D*14L 		€0.80
TT0685 / 108D8
01TI-30 CLICK SHAFT 		€6.00
Last items in stock
TT0686 / 1052Q
01TI-30 CLICK PLATE 		€4.00
Out-of-Stock
TT0687 / 10EMA
05TI20A SPOOL ASSY 		€37.80
Last items in stock
TT0688 / 10G48
01TI-30 DRAG WASHER 		€6.00
Last items in stock
TT0689 / 104QV
01TI-30 COOLING SHIELD 		€9.00
Out-of-Stock
TT0690 / 1059E
05TI20A FRAME ASSY 		€54.00
Out-of-Stock
TT0691 / 107Z7
05TI30A B-S/P ASSY 		€32.50
Out-of-Stock
TT0692 / 10JBR
01TI-20 ROD CLAMP BOLT 		€0.80
TT0701 / 10BC4
TRQS M3.5X20 		€0.80
TT0768 / 10BKB
05TI30A A-S/P ASSY 		€36.00
Last items in stock
TT0769 / 105ZE
05TI20A H/K BUSHING 		€6.00
Out-of-Stock
TT0811 / 108FY
01TI30 SA LVRASY SUS 		€0.80
Out-of-Stock
TT0873 / 10PHP
BND M2.6X9 RP 		€0.80
Out-of-Stock
